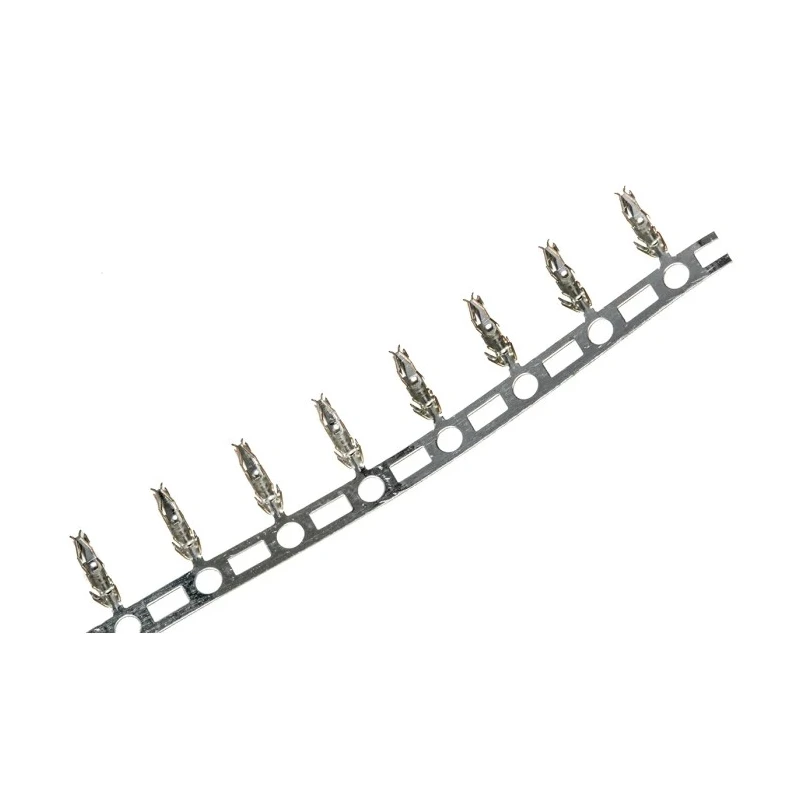

JST PA, PBV, PHD Series Female Crimp Terminal for 28 to 24 AWG Wire SPHD-002T-P0.5

Free Delivery in India | Lowest Global Shipping Charges

JST PA, PBV, PHD Series Female Crimp Terminal for 28 to 24 AWG Wire SPHD-002T-P0.5



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	SPHD-002T-P0.5
Gender	Female
Contact Material	Phosphor Bronze
Series	PA, PBV, PHD
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	PA, PBV and PHD Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating for reliable conductivity.
Supports wire sizes ranging from 28 AWG (0.08mm²) minimum to 24 AWG (0.2mm²) maximum.
Rated for a maximum current of 3 amperes ensuring stable electrical performance.
Operates effectively within temperature range of -25°C to 85°C for durability.
Crimp termination type ensures secure mechanical and electrical connection.
Maximum contact resistance is 20 milliohms for low voltage drop.
Compatible with PHD 2.0mm pitch double-row wire-to-board connectors.

Product Description

JST SPHD-002T-P0.5 Female Crimp Terminal is engineered for use with PA, PBV, and PHD series connector housings, facilitating secure and reliable wire-to-board connections. This crimp-style terminal accommodates wire sizes from 28 AWG to 24 AWG, making it suitable for various electronic assembly applications.

Made from high-quality phosphor bronze material with a tin plating, this terminal provides excellent electrical conductivity and corrosion resistance. It is rated for a maximum current of 3 amperes and ensures minimal contact resistance, capped at 20 milliohms.

Designed for operation in a temperature range from -25°C to 85°C, it withstands harsh environments and provides consistent performance. The crimp termination method guarantees a robust mechanical and electrical connection that is critical for industrial, manufacturing, and electronic instrumentation use cases.

The product is compatible with JST's PHD 2.0mm pitch crimp style double-row wire-to-board connectors, commonly used in compact, high-density electronics. JST offers additional tooling accessories such as hand crimp and extraction tools to support efficient assembly and maintenance.

Constructed from phosphor bronze with tin plating for reliable contact. Designed for wire sizes 28 AWG to 24 AWG for versatile use. Current rating of 3A suitable for various electrical applications. Operating temperature range from -25°C to 85°C for durability.

Crimp termination type ensures secure, efficient wiring. Low maximum contact resistance of 20 milliohms for performance. Compatible with JST PA, PBV, and PHD series connector housings.

This female crimp terminal is ideal for electronic component manufacturing, PCB assembly, industrial automation, and automotive electronics. It provides a reliable connection that supports long-term durability and performance in demanding environments.
