| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.01mm |
| Length | 3.04mm |
| Model | MMBZ33VALT1G |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | MMBZ A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 46V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 31.35V |
| Maximum Reverse Stand-off Voltage Vwm | 26V |
| Peak Pulse Power Dissipation Pppm | 40W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 0.87A |
| Maximum Reverse Leakage Current | 50μA |

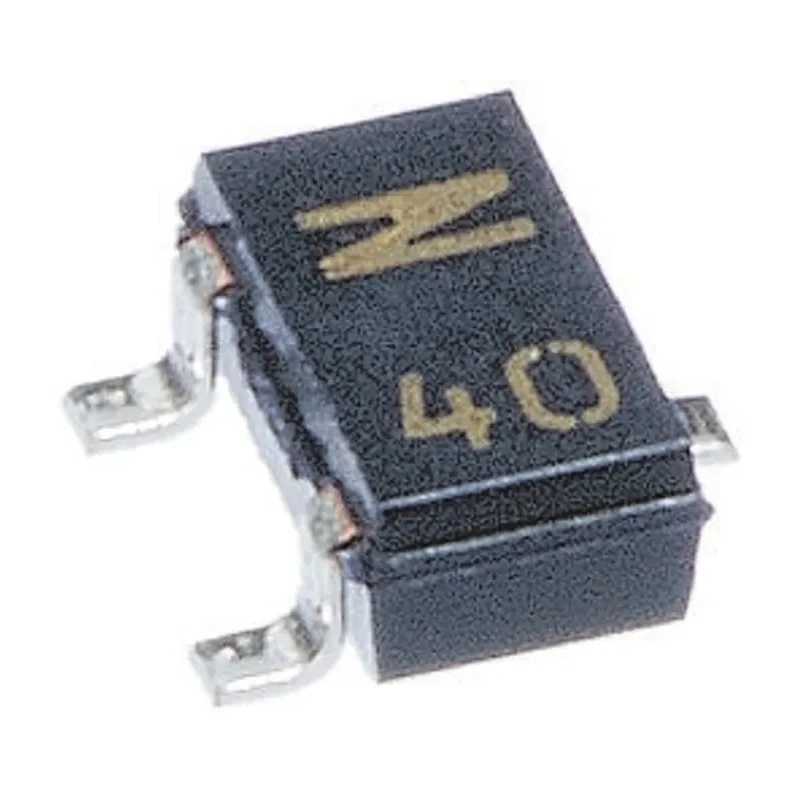

onsemi MMBZ33VALT1G is a 2-element uni-directional TVS diode designed for transient voltage suppression applications, with a peak pulse power dissipation capability of 40 W. This diode features a common anode configuration and comes in a compact, surface-mount SOT-23 package with a 3-pin layout, making it ideal for space-constrained circuit designs.
The diode delivers a minimum breakdown voltage of 31.35 V and a maximum reverse stand-off voltage of 26 V, providing effective voltage spike protection with a clamping voltage of 46 V. Its low leakage current of 50 μA and test current of 1 mA reduce power loss and improve circuit reliability.
With operational temperatures ranging from -55°C to 150°C and ESD protection capabilities, this component is suited for various industrial, automotive, and consumer electronics applications. Its compliance with the AEC-Q101 automotive standard further ensures its durability and quality in demanding environments.
The SOT-23 package dimensions are length 3.04 mm, width 1.4 mm, and height 1.01 mm, facilitating easy incorporation into automated PCB assembly processes. Featuring two elements per chip in a common anode configuration, it supports efficient transient voltage suppression in a compact form factor.
Common anode diode configuration suitable for uni-directional transient voltage suppression. Maximum peak pulse current of 0.87 A with a peak pulse power dissipation of 40 W. Low reverse leakage current enhances efficiency and reliability.
Surface mount package design supports automated manufacturing. Qualified to AEC-Q101 automotive industry standards.
This TVS Diode is ideal for applications in electronics and electrical circuits requiring robust protection against voltage transients, including industrial control systems, automotive electronics, communication devices, and power supplies.
