onsemi 2-Element Uni-Directional TVS Diode 40 W 3-Pin SOT-23 MMBZ33VALT1G

Free Delivery in India | Lowest Global Shipping Charges

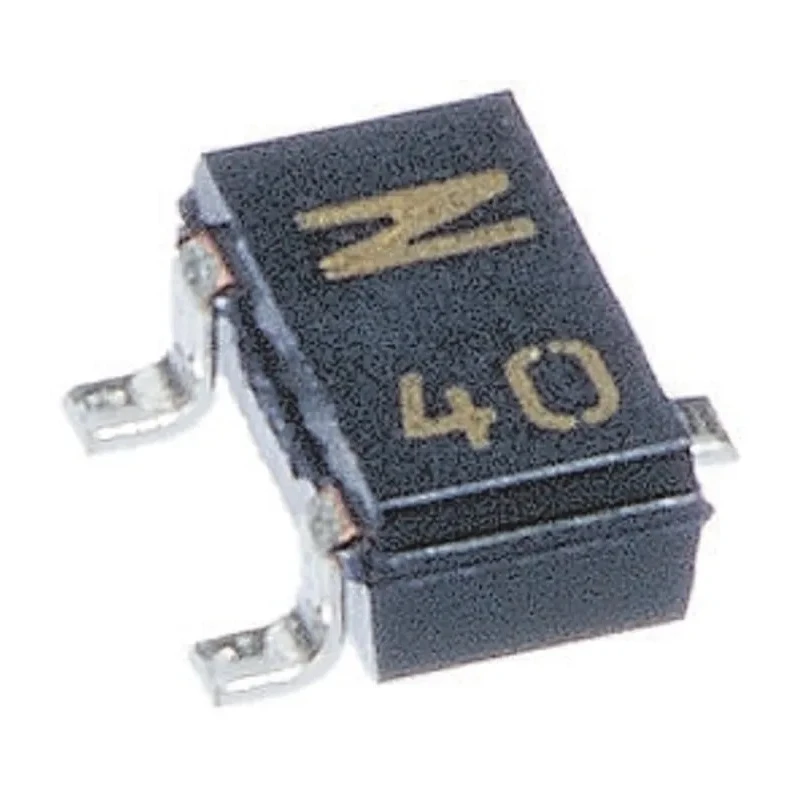

onsemi 2-Element Uni-Directional TVS Diode 40 W 3-Pin SOT-23 MMBZ33VALT1G

Name: onsemi 2-Element Uni-Directional TVS Diode 40 W 3-Pin SOT-23 MMBZ33VALT1G
Brand: onsemi
SKU: 212122
Price: 0.05 USD
Availability: InStock



Category TVS Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.01mm
Length	3.04mm
Model	MMBZ33VALT1G
Width	1.4mm
Mount Type	Surface
Series	MMBZ A
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Number of Elements per Chip	2
Clamping Voltage VC	46V
Automotive Standard	AEC-Q101
Diode Configuration	Common Anode
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	31.35V
Maximum Reverse Stand-off Voltage Vwm	26V
Peak Pulse Power Dissipation Pppm	40W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	0.87A
Maximum Reverse Leakage Current	50μA
Nexperia 2-Element Uni-Directional ESD Protection Diode, 40 W, 3-Pin SOT-23Brand	Nexperia

Key Features

The diode features a common anode configuration for improved device reliability.
It has a minimum breakdown voltage of 31.35 volts and a maximum reverse stand-off voltage of 26 volts.
The device provides ESD protection conforming to automotive standard AEC-Q101.
Rated maximum peak pulse current is 0.87 A with a clamping voltage of 46 volts ensuring transient voltage suppression.
Operating temperature range spans from -55°C to 150°C for robust environmental tolerance.
Designed for surface mount technology with compact dimensions measuring 3.04 mm length, 1.4 mm width, and 1.01 mm height.
This TVS diode is ideally suited for automated insertion in electronic circuits requiring high surge protection.

Product Description

onsemi MMBZ33VALT1G is a 2-element uni-directional transient voltage suppressor (TVS) diode rated for a peak pulse power dissipation of 40 W. Packaged in a compact 3-pin SOT-23 surface mount format, this device features a common anode diode configuration which contributes to enhanced reliability and ease of integration into various circuit designs.

The device provides robust protection against voltage transient spikes with a minimum breakdown voltage of 31.35 volts and a maximum reverse stand-off voltage of 26 volts. Its clamping voltage of 46 volts and maximum peak pulse current of 0.87 A make it suitable for suppressing transient surges within sensitive electronic equipment.

Designed to conform to the automotive standard AEC-Q101, the MMBZ33VALT1G TVS diode offers ESD protection, ensuring durability in demanding environments including automotive, industrial, and telecommunications applications.

Operating reliably across a temperature range from -55°C to 150°C, this diode is capable of withstanding harsh conditions while maintaining performance. Its small form factor with dimensions of 3.04 mm length, 1.4 mm width, and 1.01 mm height allows for high-density PCB layouts and automated assembly processes.

The onsemi MMBZ33VALT1G is an ideal solution for transient voltage protection in electronic circuits, providing fast response and surge absorption to safeguard components and improve overall system reliability in industrial, automotive, telecommunications, and consumer electronics sectors.

The diode features a common anode configuration for improved device reliability. It has a minimum breakdown voltage of 31.35 volts and a maximum reverse stand-off voltage of 26 volts. The device provides ESD protection conforming to automotive standard AEC-Q101.

Rated maximum peak pulse current is 0.87 A with a clamping voltage of 46 volts ensuring transient voltage suppression. Operating temperature range spans from -55°C to 150°C for robust environmental tolerance. Designed for surface mount technology with compact dimensions measuring 3.04 mm length, 1.4 mm width, and 1.01 mm height.

This TVS diode is ideally suited for automated insertion in electronic circuits requiring high surge protection. Explore more TVS Diode options and related semiconductor components at EnvMart for your industrial and electronic design needs.
