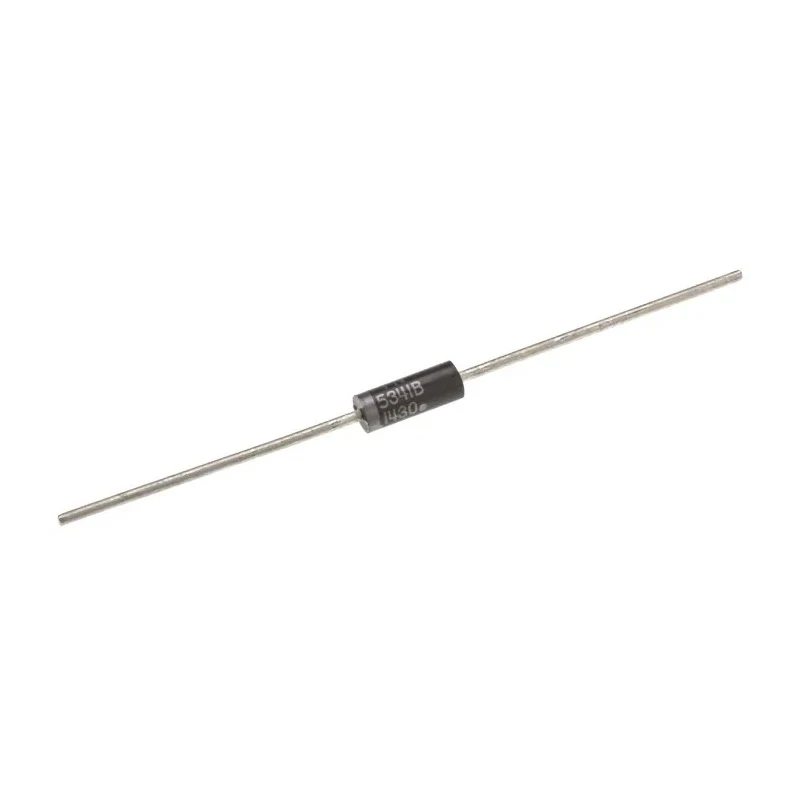

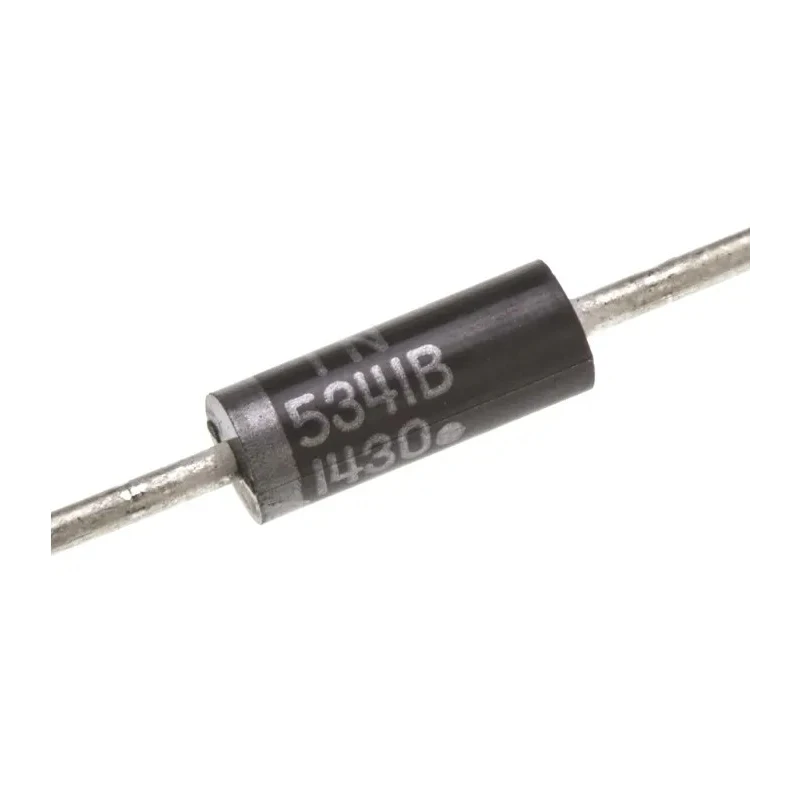

onsemi Zener Diode 6.2 V 5 W Through Hole 2-Pin DO-15 1N5341BRLG

The onsemi 1N5341BRLG Zener Diode is a high-quality voltage regulator designed with a nominal zener voltage of 6.2 volts and maximum power dissipation of 5 watts. It features a single diode configuration housed in a durable through-hole 2-pin DO-15 axial lead package, facilitating easy installation on printed circuit boards used in industrial and electronic applications.

Constructed with a thermosetting plastic molded package, this device offers excellent protection against common environmental challenges. The corrosion-resistant external surfaces and readily solderable leads contribute to its reliability and long service life.

Performance-wise, the 1N5341BRLG demonstrates a maximum zener impedance of 1 ohm and a minimal reverse leakage current of 1 microampere, ensuring precision voltage regulation and minimal leakage loss. Its operating temperature range between -65°C and 200°C makes it well-suited for harsh operational conditions in industrial, manufacturing, and electronic circuits requiring consistent voltage stabilization.

This zener diode complies fully with RoHS standards, confirming its environmental friendliness and restricted hazardous substance content. It belongs to the well-regarded 1N53xx Surmetic series by ON Semiconductor, known for axial-leaded 5-watt Zener Diodes with tight voltage regulation.

This diode features a single diode configuration for focused regulation. It is mounted through hole with a 2-pin DO-15 package for easy PCB integration. The device supports a test current of 200 mA and has a voltage tolerance of ±5%.

Operating temperatures range from -65°C to 200°C ensuring durability in challenging environments. The axial-lead package is corrosion resistant and provides solderable leads for reliable connections. Maximum reverse leakage current is only 1 μA enhancing electrical stability.

The zener diode is compliant with RoHS environmental standards.

Common applications include industrial electronic circuits, voltage regulation modules in power supplies, and protection circuits. This makes it ideal for use in manufacturing, industrial automation, laboratory instruments, and electronic device repair.
