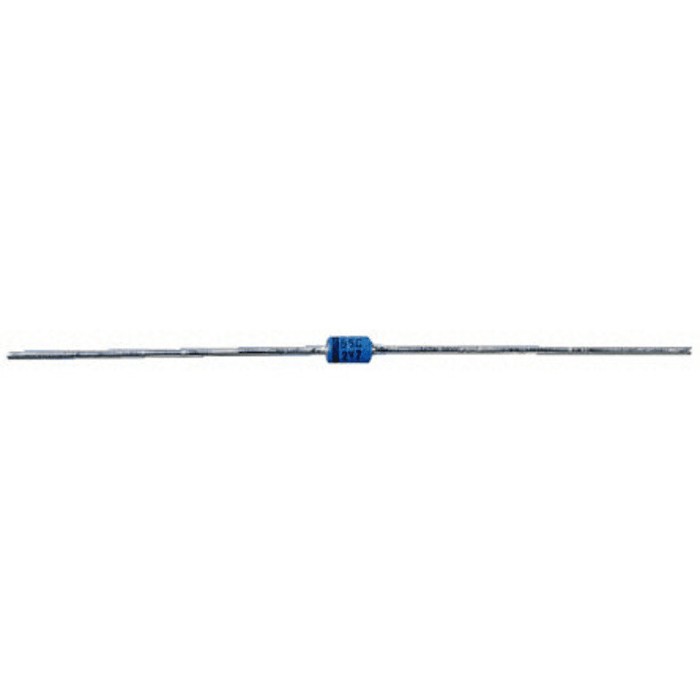

Taiwan Semiconductor 1W 33V Zener Diode Through Hole 2-Pin DO-41 1N4752A

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 1W 33V Zener Diode Through Hole 2-Pin DO-41 1N4752A

Name: Taiwan Semiconductor 1W 33V Zener Diode Through Hole 2-Pin DO-41 1N4752A
Brand: Taiwan Semiconductor
SKU: 211930
Price: 0.14 USD
Availability: InStock



Category Zener Diodes Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	China
Brand	Taiwan Semiconductor
Height	2.7mm
Length	5.2mm
Model	1N4752A
Mount Type	Through Hole
Series	1N4752A
Maximum Operating Temperature	200°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	7.5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	33V
Zener Type	Voltage Regulator
Maximum Zener Impedance	45Ω

Key Features

Nominal Zener voltage of 33 volts with ±5% tolerance.
Maximum power dissipation rating of 1 watt for robust usage.
Through hole mount type with 2-pin DO-41 package for easy PCB integration.
Low maximum reverse leakage current of 5 microamps ensures reliability.
Operating temperature ranges from -65°C up to 200°C for wide environmental suitability.
Test current specified at 7.5 milliamps with maximum Zener impedance of 45 ohms.
Single diode element configuration designed as a voltage regulator.
Manufactured in China, complying with industry standards.

Product Description

Taiwan Semiconductor 1N4752A is a precision 1 watt Zener Diode with a nominal Zener voltage of 33V, housed in a through hole 2-pin DO-41 package. It is designed for voltage regulation and voltage reference applications in various electronic circuits.

This diode features a single element configuration optimized for stable voltage regulation with a maximum power dissipation of 1 Watt. It supports a test current of 7.5 mA and maintains a maximum Zener impedance of 45 ohms, ensuring consistent operation within electrical specifications.

The device offers a low maximum reverse leakage current of 5 microamps, enhancing reliability and reducing leakage under reverse bias conditions. Its operating temperature range from -65°C to 200°C makes it suitable for demanding industrial and commercial environments.

The compact DO-41 package with dimensions of 2.7 mm in height and 5.2 mm in length is compatible with through hole PCB mounting techniques, facilitating ease of assembly and integration into various electronic subsystems.

This Zener Diode is sourced from Taiwan Semiconductor and manufactured in China, meeting essential quality standards without automotive certification. Nominal Zener voltage: 33V ±5%. Maximum power dissipation: 1W. Test current: 7.5 mA.

Maximum reverse leakage current: 5 μA. Operating temperature range: -65°C to 200°C. Package type: DO-41 through hole. Compact size suitable for PCB mounting. Voltage regulator type Zener diode, single element. Manufactured in China.

This component is ideal for use in electronic component, power, and connector assemblies for semiconductor-based voltage regulation tasks across industrial, laboratory, and manufacturing setups. It is suitable for electronics prototyping as well as production circuit boards requiring stable voltage references.
