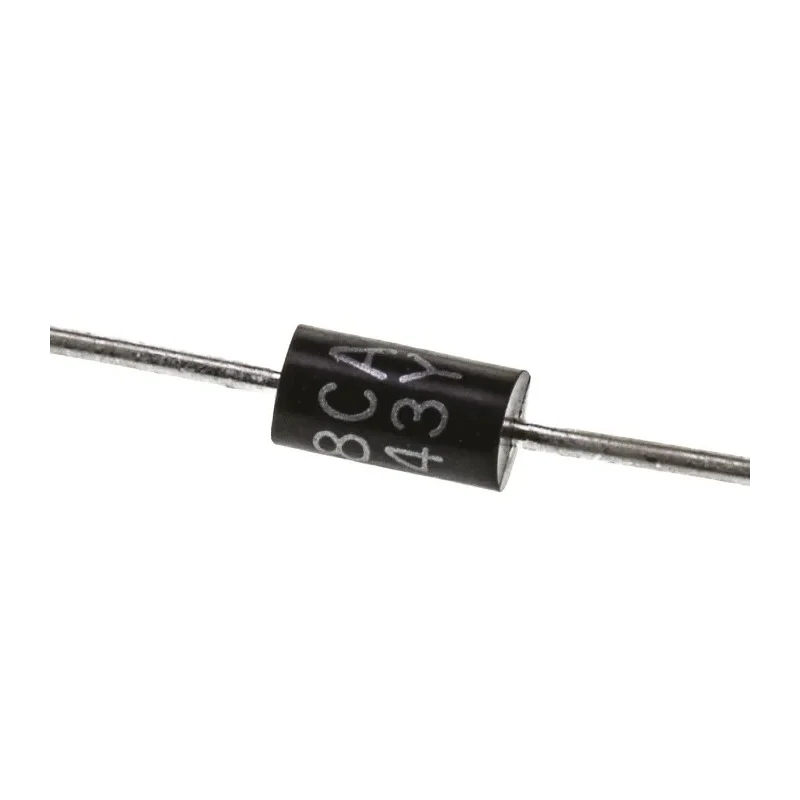

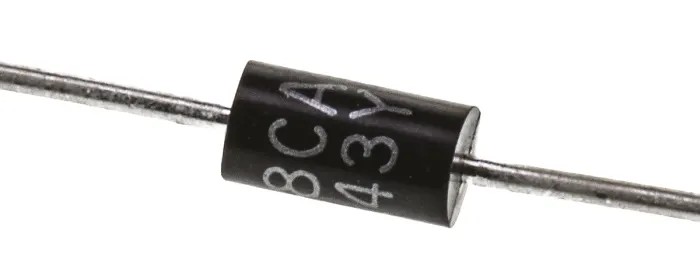

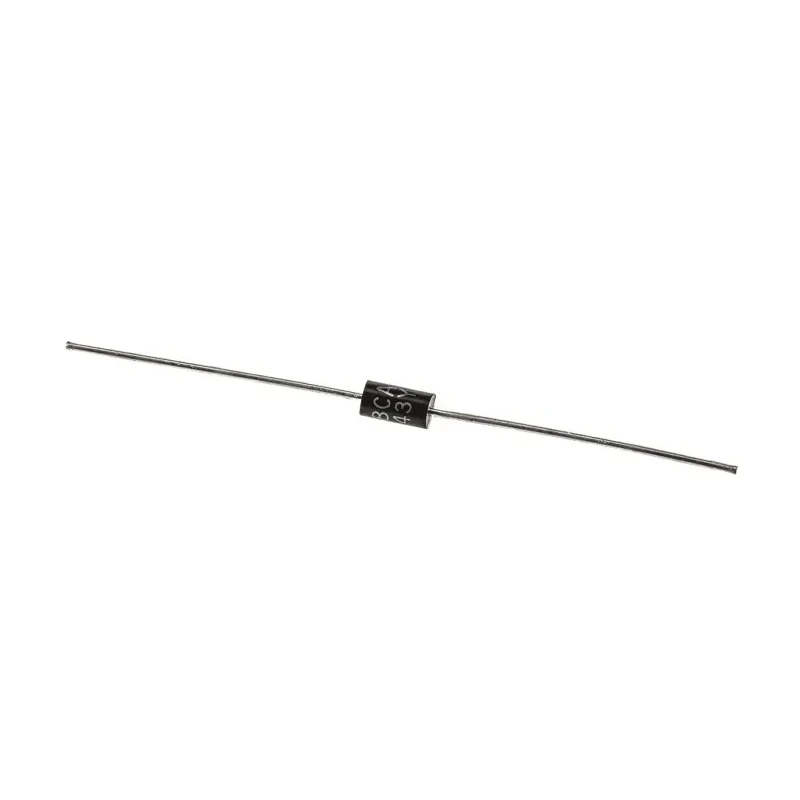

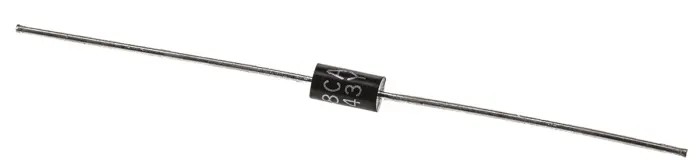

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 500W, 2-Pin DO-15 SA28CA

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 500W, 2-Pin DO-15 SA28CA

Name: Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 500W, 2-Pin DO-15 SA28CA
Brand: Taiwan Semiconductor
SKU: 211902
Price: 0.19 USD
Availability: InStock



Category TVS Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Diameter	3.6mm
Brand	Taiwan Semiconductor
Height	3.6mm
Length	7.6mm
Model	SA28CA
Width	3.6mm
Mount Type	Through Hole
Series	SA
Maximum Operating Temperature	175°C
Package Type	DO-15
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	45.4V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	31.1V
Maximum Reverse Stand-off Voltage Vwm	28V
Peak Pulse Power Dissipation Pppm	500W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	11.5A
Maximum Reverse Leakage Current	1μA

Key Features

The diode features a single element configuration suitable for bi-directional voltage protection.
It has a minimum breakdown voltage of 31.1 V and a maximum reverse standoff voltage of 28 V.
The package type is DO-15, with 2 pins for through-hole mounting.
Peak pulse power dissipation is rated at 500 W, making it suitable for high transient voltage conditions.
Clamping voltage is 45.4 V ensuring effective voltage clamp during surge events.
Operating temperature range extends from -55°C to a maximum of 175°C.
Maximum peak pulse current rating is 11.5 A with a test current of 1 mA.
The physical size includes a length of 7.6 mm, diameter and width of 3.6 mm, and height of 3.6 mm.

Product Description

Taiwan Semiconductor SA28CA is a high-performance 1-element bi-directional transient voltage suppression (TVS) diode engineered for protection against voltage spikes in electronic circuits.

This TVS diode offers a peak pulse power dissipation capacity of 500 watts, making it suitable for safeguarding sensitive discrete semiconductor devices and electronic components operating under demanding transient conditions.

The device comes in a robust DO-15 through-hole package with 2 pins, facilitating easy mounting and integration into printed circuit boards. Technical benefits include a minimum breakdown voltage of 31.1 volts and a clamping voltage of 45.4 volts for efficient voltage surge absorption.

Operating temperature range from -55°C to 175°C allows for reliable use in industrial, automotive, and commercial electronic applications. The diode complies with the Automotive Standard AEC-Q101, indicating suitability for automotive environments.

The small footprint with dimensions of 7.6 mm length and 3.6 mm diameter and width makes it ideal for space-constrained circuit designs. With a maximum peak pulse current of 11.5 amperes and minimal reverse leakage current of 1 microampere, this diode ensures both robust protection and energy efficiency.

The diode features a single element bi-directional configuration for symmetrical voltage spike suppression. Package type is DO-15 suitable for through-hole mounting. High power transient voltage suppression rated at 500 watts peak pulse power.

Operating temperature range from -55°C to 175°C ensures durability in harsh environments. Clamping voltage of 45.4 volts provides effective surge suppression. Compliance with automotive standard AEC-Q101 certifies quality for automotive electronics.

This TVS Diode is essential for use in electronic circuit protection, power supply units, semiconductor devices, automotive electronics, and industrial equipment to maintain device longevity and reliability.
