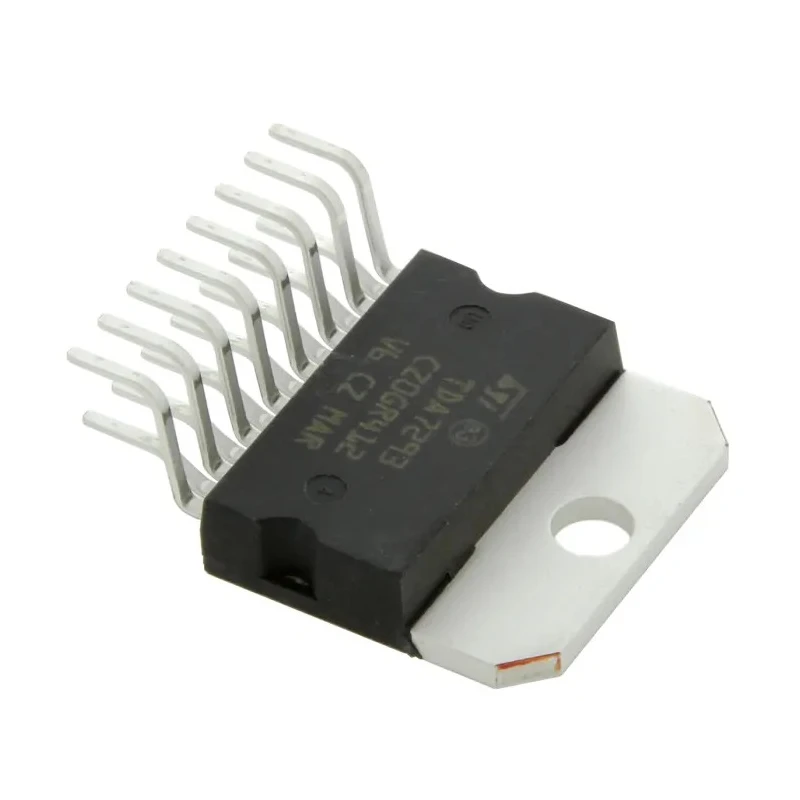

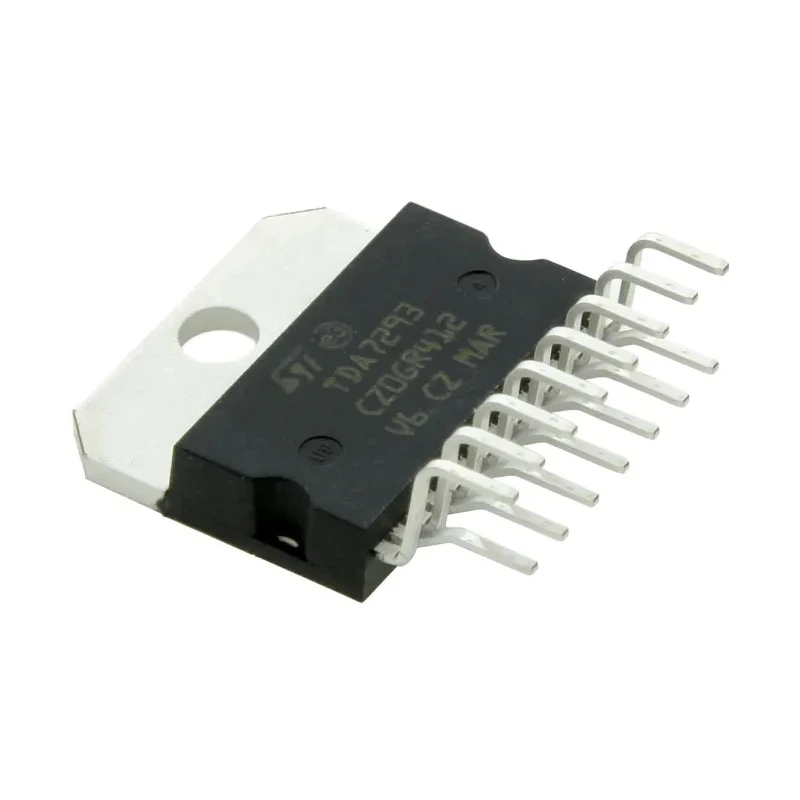

STMicroelectronics Audio Amplifier IC, 15-Pin Multiwatt Package, 100W Output Power, Class A-B, Through Hole Mount TDA7293V

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Audio Amplifier IC, 15-Pin Multiwatt Package, 100W Output Power, Class A-B, Through Hole Mount TDA7293V

Name: STMicroelectronics Audio Amplifier IC, 15-Pin Multiwatt Package, 100W Output Power, Class A-B, Through Hole Mount TDA7293V
Brand: STMicroelectronics
SKU: 149384



Category Audio Amplifier ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	10.7mm
Length	19.6mm
Model	TDA7293V
Width	5mm
Output Power	100W
Mount Type	Through Hole
Series	TDA7293
Maximum Operating Temperature	70°C
Package Type	Multiwatt
Minimum Operating Temperature	0°C
Number Of Channels	1
Pin Count	15
Maximum Supply Voltage	50V
Minimum Supply Voltage	12V
Amplifier Type	Audio
Amplifier Class	Class A-B

Key Features

Provides 100 watts of audio output power suitable for speaker amplification.
Operates using Class A-B amplifier topology for efficient sound reproduction.
Features a 15-pin Multiwatt through-hole package for easy mounting and integration.
Supports a single audio channel with wide supply voltage range from 12V to 50V.
Designed for reliable operation between 0°C and 70°C ambient temperatures.
Compact dimensions of 19.6mm length, 10.7mm height, and 5mm width ensure space-saving in circuit designs.
Ideal for applications requiring audio amplification with high power and linearity.
Excludes automotive standards and approvals, ensuring non-automotive usage.

Product Description

STMicroelectronics TDA7293V is a high-quality audio amplifier integrated circuit with a 15-pin Multiwatt package, designed specifically for audio applications requiring significant output power and efficiency.

This IC delivers a maximum output power of 100 watts, making it suitable for speaker amplification tasks within a variety of audio devices. It operates with a Class A-B amplifier configuration, providing a balance between audio quality and electrical efficiency.

The through-hole mounting style and Multiwatt packaging facilitate easy installation and replacement within audio systems, enabling straightforward integration into existing printed circuit boards.

With a wide supply voltage range from 12V minimum to 50V maximum, the device offers flexible power supply options to suit different system designs. Operating temperatures range from 0°C to 70°C, providing reliable performance over typical industrial temperature environments.

The device's dimensions of 19.6mm length, 10.7mm height, and 5mm width allow for compact circuit layouts without compromising performance. The 15-pin configuration ensures comprehensive interfacing possibilities for advanced audio signal processing.

This audio IC is ideally suited for use in industrial audio amplifier products, consumer audio equipment, and specialized speaker systems requiring a robust Class A-B power amplifier solution.

Provides high-fidelity 100W audio output. Class A-B amplifier for efficiency and sound quality. Compact 15-pin Multiwatt through-hole package. Wide supply voltage range from 12V to 50V. Reliable operation between 0°C and 70°C.

Designed for single-channel audio amplification. Compact dimensions enable space-saving designs. Excludes automotive certifications. Explore more semiconductor products and Audio Amplifier ICs at EnvMart for a wide range of industrial and consumer applications.
