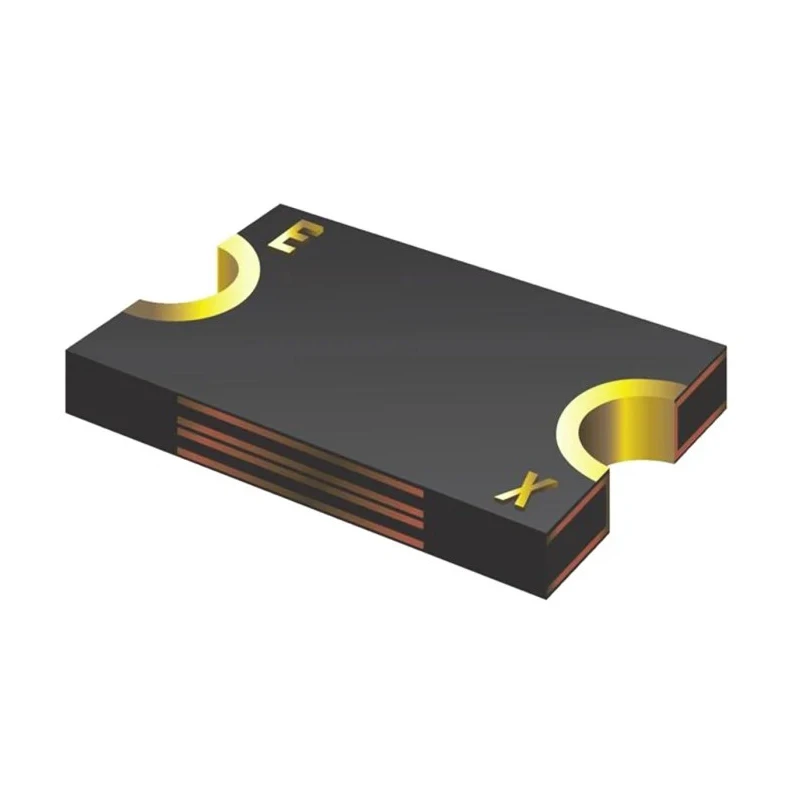

Bourns 24V 2.6A Resettable Fuse MF-LSMF260X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V |
| Brand | Bourns |
| Height | 1.6mm |
| Length | 7.98mm |
| Model | MF-LSMF260X-2 |
| Width | 5.44mm |
| Current Rating | 20A |
| Series | MF-LSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 3121 |
| Trip Current | 5.2A |
| Power Dissipation | 1.5W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | RoHS |
| Time to Trip | 5s |
| Hold Current | 2.6A |
| Minimum Resistance | 0.02Ω |
| Maximum Resistance | 75mΩ |
Key Features
- Designed to protect electrical and electronic circuits from excessive current.
- Features a rapid switch from low to high resistance under overload conditions.
- Automatic reset and returns to low resistance after fault condition ceases.
- Compact surface mount package suitable for automated assembly.
- Compatible with Pb and Pb-free solder reflow profiles.
- Maintenance free with thousands of cycle resets.
- Ideal for use in security systems, power supplies, automotive, medical equipment and telecommunication devices.
- Low profile design with electroless nickel immersion gold plated terminals.
Product Description
Bourns MF-LSMF260X-2 is a 24V resettable fuse designed for reliable protection of electrical and electronic circuits against overcurrent conditions. It features a hold current of 2.6A and a maximum current rating of 20A, making it suitable for demanding industrial and commercial applications.
This fuse rapidly transitions from a low-resistance state to a high-resistance state upon overload or short circuit events, automatically resetting when the fault condition is resolved and power is removed. Its maintenance-free design supports thousands of automatic reset cycles, enhancing device longevity and reducing maintenance needs.
The surface mount packaging supports automated assembly and is compatible with both Pb and Pb-free solder reflow profiles, making it ideal for modern manufacturing processes. The low-profile construction and electroless nickel immersion gold-plated terminals ensure excellent electrical connectivity and corrosion resistance.
Common applications for the MF-LSMF260X-2 include security systems, power supplies, transformers, automotive and medical equipment, instrumentation, computers, audio visual systems, and telecommunications. Its compact size and high power rating offer a flexible and robust solution for overcurrent protection across varied industries.
Protects electrical circuits from excessive current automatically and resets without replacement. High power rating and low profile suitable for dense electronic assemblies. RoHS compliant and halogen free for environmental sustainability.
Supports automated surface mount assembly processes. Wide operating temperature range from -40°C to 85°C. Gold plated terminals for enhanced connectivity and durability. Compatible with both leaded and lead-free soldering techniques.
Choose Bourns MF-LSMF260X-2 Resettable Fuse to ensure reliable, maintenance-free circuit protection in industrial, electronic, automotive, and telecommunications applications. Discover more electronics and electrical components at EnvMart to optimize your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 2.6A.
The maximum current rating for the MF-LSMF260X-2 is 20A.
This unit has a height of 1.6mm, a length of 7.98mm, and a width of 5.44mm.
The operating temperature range is from -40°C to 85°C.
It automatically resets to low resistance after the fault condition ceases and power is removed.
The MF-LSMF260X-2 comes in a reel package type, suitable for automated assembly.
The trip current for this model is 5.2A.
The terminals are made from electroless nickel immersion gold plated material.
Yes, this model is RoHS compliant.
The time to trip for the MF-LSMF260X-2 is 5 seconds.
Common applications include security systems, power supplies, automotive, medical equipment, and telecommunications.
The minimum resistance is 0.02Ω and the maximum resistance is 75mΩ.
