Hirose DF20 Series Straight Surface PCB Header 50 Contacts 1 mm Pitch 2 Row Shrouded

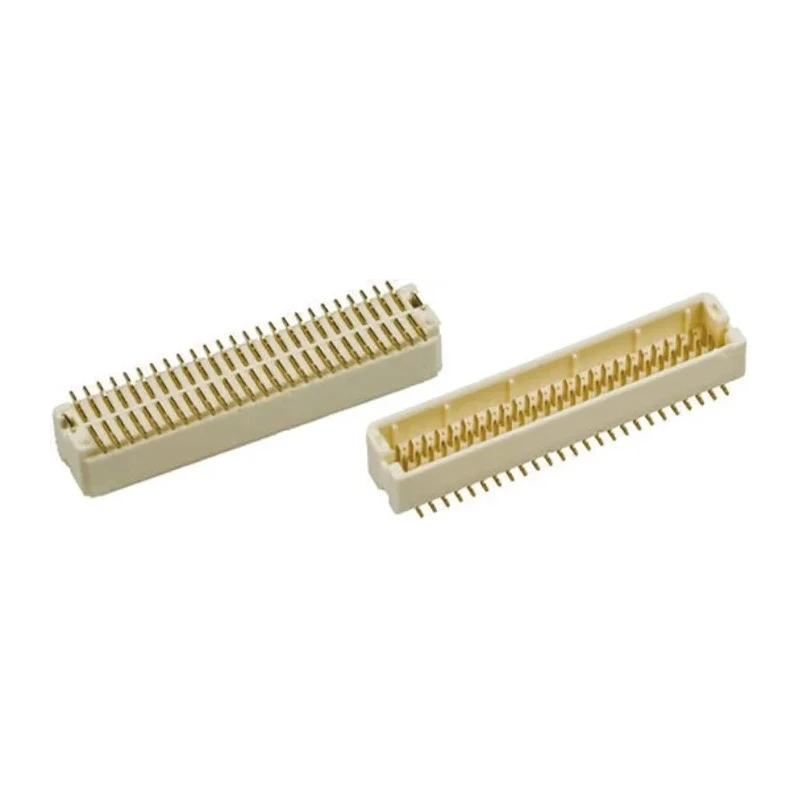

Hirose DF20G-50DP-1V(55) Straight Surface PCB Header is a high-quality electronic connector designed for reliable wire-to-board applications. It features 50 male contacts arranged in 2 rows with a compact 1 mm pitch, ideal for space-constrained designs such as notebooks, small office automation equipment, and consumer devices.

The housing is made from beige polyamide material conforming to UL94V-0 standards, ensuring excellent flame retardance. Each contact is fabricated from copper alloy and plated with gold to provide superior electrical performance and corrosion resistance. Rated for 1A current and 100V voltage, this PCB header guarantees stable connectivity in low-voltage environments.

This surface mount device includes a shrouded design to prevent incorrect mating, reducing the risk of damage during assembly. The 1.0 mm pitch and 2-row configuration provide a low profile with a mating height above the PCB of approximately 5.8 mm, making it suitable for compact electronic assemblies.

Operating reliably within temperatures from -35°C to 85°C, this connector withstands a broad range of environmental conditions. It supports automatic placement on equipment boards, offering efficiency in mass production setups.

Typical applications include notebook PCs, small form factor office equipment, and consumer electronics that require robust wire-to-board connections supporting AWG 28, 30, and 32 wires.

Constructed with polyamide UL94V-0 rated housing for flame resistance. Copper alloy contacts plated with gold ensure high conductivity and durability. Supports 1A current and 100V voltage for reliable low-power connections.

Shrouded connector system prevents mis-insertion and enhances safety. Compact 1 mm pitch, double-row design suits small size devices. Wide operating temperature range from -35°C to 85°C. Surface mount with solder termination for efficient assembly.

This Hirose DF20 series PCB header is ideal for industrial, electronic manufacturing, consumer device assembly, and laboratory instrumentation requiring high-quality, reliable wire-to-board connectors. Explore additional connector and PCB header solutions at EnvMart for your design and production needs.
