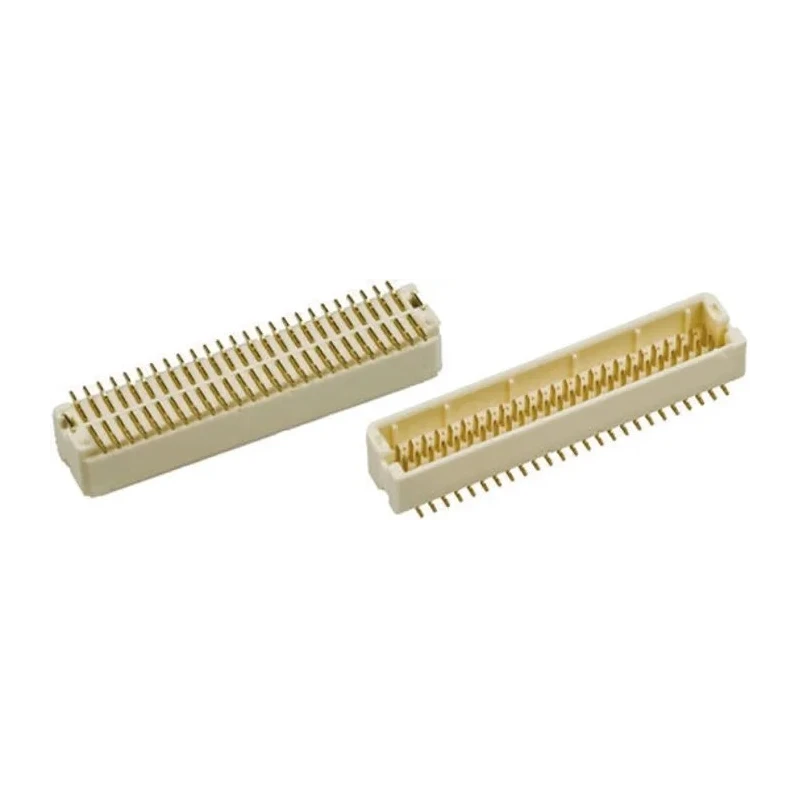

Hirose PCB Header DF20 Series Straight Surface, 50 Contacts, 1 mm Pitch, Double Row, Shrouded DF20
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 1A |
| Model | DF20 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a straight orientation with shrouded connector housing for secure connections.
- Constructed from durable polyamide housing rated UL94V-0 for flame resistance.
- Contact material of copper alloy plated with gold ensures high conductivity and corrosion resistance.
- Operates within a temperature range of -35°C to 85°C for versatile applications.
- Designed for wire-to-board connection systems with solder termination type.
- Supports nominal voltage of 100V and current rating of 1A suitable for low power electronics.
- Low profile mating height above PCB of approximately 5.8 mm reduces space usage.
- Includes anti-mis-insertion mechanism for reliable assembly and performance.
Product Description
Hirose DF20 Series PCB Header, model DF20, is a high-quality electronic connector designed for surface mounting applications. Featuring a 1 mm pitch with 50 contacts arranged in two rows, this shrouded header provides secure and reliable wire-to-board connections. The straight orientation enables easy cable alignment and integration into a variety of circuit boards.
The housing is made from beige polyamide material rated UL94V-0, providing excellent flame resistance and mechanical durability. Contacts are composed of copper alloy with gold plating, ensuring reliable electrical conductivity and corrosion protection over long service life.
Rated for operation between -35°C and 85°C, this header supports low current applications up to 1 ampere and voltage up to 100V, making it ideal for sensitive electronic devices such as notebook PCs, office automation equipment, and consumer electronics.
The connector's design includes a mechanism to prevent mis-insertion, improving assembly accuracy and reducing production errors. With a low profile mating height of approximately 5.8 mm above the PCB, it supports compact designs in constrained spaces.
This double-row straight pin header supports solder termination, suitable for automated board assembly processes. The Hirose DF20 series is a preferred choice in industries requiring reliable low-profile board-to-wire connections using AWG 28, 30, or 32 wires.
Straight orientation with shrouded connector housing. Polyamide UL94V-0 flame retardant housing. Copper alloy contacts with gold plating. Wide operating temperature range from -35°C to 85°C. Supports 100V voltage and 1A current rating.
Low profile design with 5.8 mm mating height. Anti-mis-insertion mechanism for improved assembly. Suitable for notebook PCs and consumer devices. Surface mount solder termination supports high production efficiency. Explore more high-quality PCB connectors and related components suitable for electronic manufacturing and design on EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 50 contacts arranged in two rows with a 1 mm pitch, designed for secure wire-to-board connections.
It supports a nominal voltage of 100V and a current rating of 1A, making it suitable for low power electronics applications.
The housing is made from polyamide rated UL94V-0 for flame resistance, while the contacts are composed of copper alloy plated with gold for high conductivity and corrosion resistance.
The Hirose DF20 operates within a temperature range of -35°C to 85°C, allowing for versatile applications in various environments.
It uses a solder termination type, which is suitable for surface mounting applications and automated board assembly processes.
Yes, it includes an anti-mis-insertion mechanism that improves assembly accuracy and reduces production errors during installation.
The low profile mating height is approximately 5.8 mm above the PCB, which helps in minimizing space usage in compact designs.
It is designed for wire-to-board connections, making it suitable for various electronic devices such as notebook PCs and office automation equipment.
The contacts in this model are male, designed for secure connections with compatible female connectors.
The country of origin for this product is India.
The UL94V-0 rating indicates that the polyamide housing has excellent flame resistance, enhancing safety in electronic applications.
It is suitable for use with AWG 28, 30, or 32 wires, making it versatile for different applications in electronic manufacturing.
