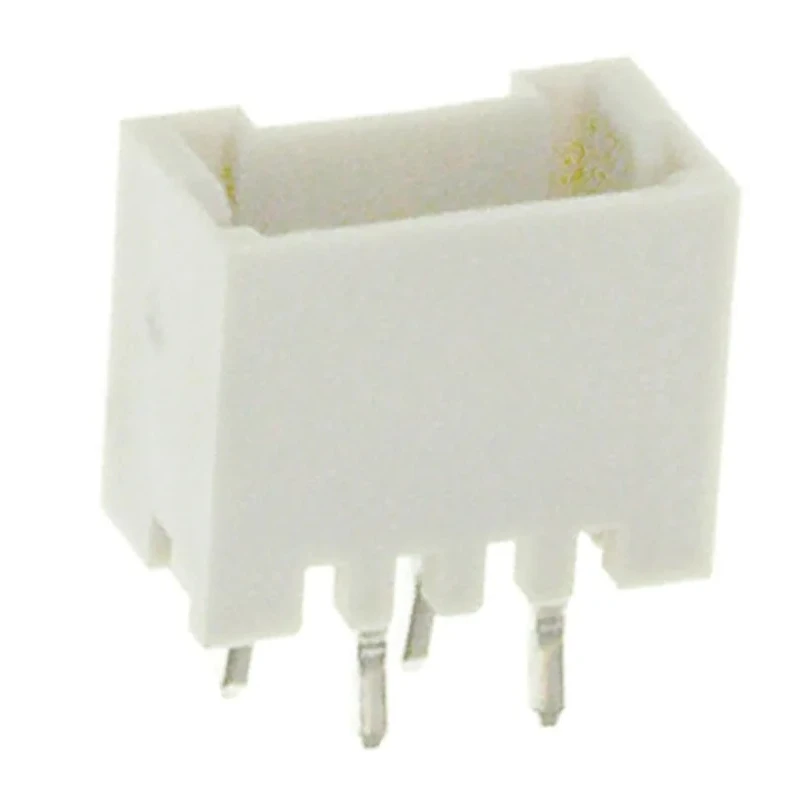

TE Connectivity AMP Mini CT Series Straight Through Hole PCB Header, 4 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 292207-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP Mini CT Series Straight Through Hole PCB Header, 4 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 292207-4

Name: TE Connectivity AMP Mini CT Series Straight Through Hole PCB Header, 4 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 292207-4
Brand: TE Connectivity
SKU: 211068
Price: 1.35 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	TE Connectivity
Orientation	Straight
Model	292207-4
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	AMP Mini CT
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact 1.5 mm pitch design facilitates space-saving PCB layouts.
Shrouded housing made of durable nylon for reliable insulation.
Kinked solder legs provide secure self-retention to the PCB during soldering.
Features polarization and mating retention for accurate secure connections.
Brass contacts plated with tin ensure good conductivity and resistance to corrosion.
Through hole mount type suitable for robust mechanical and electrical connection.
Operating temperature range from -30°C to 105°C for versatile environmental use.
Male contact gender for standard wire-to-board interface.

Product Description

TE Connectivity 292207-4 AMP Mini CT Series Straight Through Hole PCB Header features a compact 1.5 mm pitch and 4 male contacts arranged in a single row. The housing is made from durable nylon material, providing excellent insulation and protection for wire-to-board interconnections.

This shrouded connector is designed with kinked solder legs for secure self-retention during assembly on the PCB, reducing risk of misalignment. Polarization and mating retention features ensure a precise and reliable connection to mating cable connectors.

Engineered for through hole mounting, this header supports industrial and commercial electronic equipment applications requiring secure and stable PCB connections. The brass contacts plated with tin offer excellent conductivity and corrosion resistance, maintaining signal integrity over time.

The operating temperature range from -30°C up to 105°C allows deployment in diverse environmental conditions. The maximum voltage rating is 125 V, meeting typical PCB header requirements for business equipment, printers, industrial machines, audio devices, LED lighting controls, and air conditioning systems.

These AMP Mini CT headers are well-suited for wire-to-board and wire-to-wire applications, offering proven wire harness assembly capabilities. Versions with PCB locating bosses enable accurate alignment during PCB mounting processes.

Compact 1.5 mm pitch and 4 contact positions. Shrouded nylon housing for insulation and protection. Kinked solder legs for secure PCB retention. Polarization and mating retention features. Brass contacts with tin plating for conductivity and corrosion resistance.

Through hole mount type for durable mounting. Operating temperature range -30°C to 105°C. Maximum voltage rating 125 V. Compatible with industrial and commercial electronic assemblies. Enables accurate positioning with PCB locating bosses.
