ASSMANN WSW A-BL254 Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder A-BL254

Free Delivery in India | Lowest Global Shipping Charges

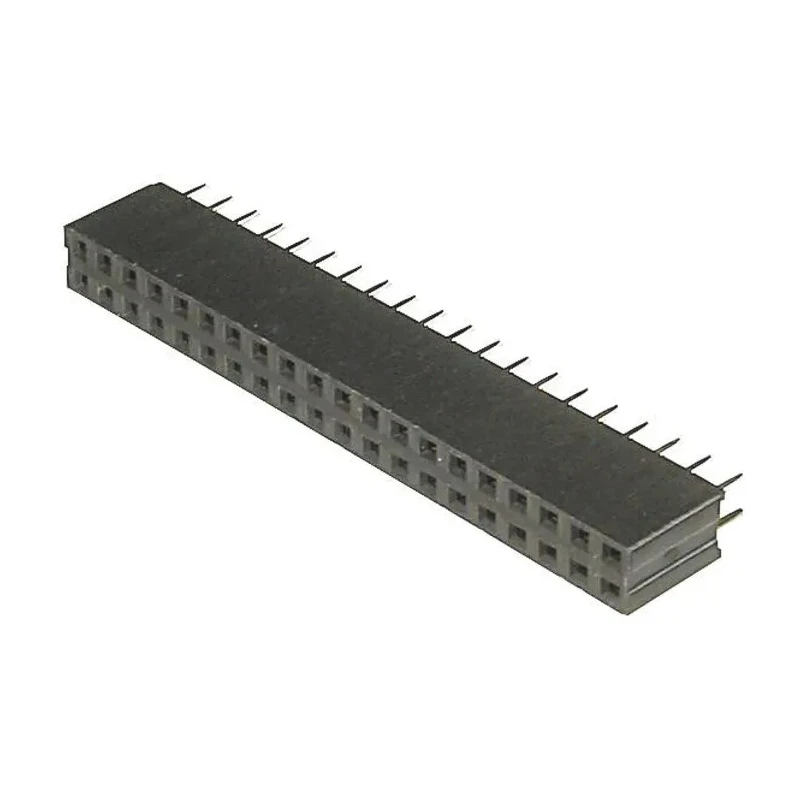

ASSMANN WSW A-BL254 Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder A-BL254

Name: ASSMANN WSW A-BL254 Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder A-BL254
Brand: ASSMANN WSW
SKU: 208447
Price: 1.15 USD
Availability: InStock



Category PCB Sockets Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	ASSMANN WSW
Orientation	Straight
Current	12A
Model	BL254
Mount Type	Through Hole
Contact Material	Bronze
Series	A-BL254
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	UL 94 V-0
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female

Key Features

Features a 2.54 mm pitch and 20 contacts arranged in 2 rows.
Constructed with bronze contacts plated in gold for superior conductivity and resistance to corrosion.
Housed in black PBT UL94V-0 rated plastic ensuring flame retardancy and durability.
Supports a current rating of 12 A and voltage rating of 500 V.
Designed for through-hole solder mounting providing strong mechanical and electrical connections.
Operates reliably from -40°C to 105°C, suitable for demanding electronic applications.
Compliant with UL 94 V-0 safety standards.
Ideal for industrial electronics, power connectors, and PCB interfacing solutions.

Product Description

The ASSMANN WSW A-BL254-DG-G20D PCB Socket is a precision-engineered straight through hole female header connector, part of the A-BL254 series. It features 20 gold-plated bronze contacts arranged in two rows with a 2.54 mm pitch, providing robust and reliable electrical connections for printed circuit boards.

This connector is designed with a black PBT housing certified to UL 94 V-0 flame retardancy standards, ensuring safety and durability in various industrial and electronic applications. Its through-hole solder mounting type facilitates secure attachment to PCBs enhancing mechanical stability.

Engineered to withstand temperatures from -40°C to 105°C and a voltage rating of 500 volts, this PCB socket supports a current rating of 12 amperes, making it suitable for high-performance electronic assemblies including power connectors, control systems, and telecommunications equipment.

The gold plating on bronze contacts improves durability and electrical conductivity, reducing contact resistance and protecting against corrosion for long-term performance. This component is ideal for industrial, manufacturing, and electronic assembly environments requiring high quality and dependable PCB interfacing solutions.

Features a 2.54 mm pitch and 20 contacts arranged in 2 rows. Constructed with bronze contacts plated in gold for superior conductivity and resistance to corrosion. Housed in black PBT UL94V-0 rated plastic ensuring flame retardancy and durability.

Supports a current rating of 12 A and voltage rating of 500 V. Designed for through-hole solder mounting providing strong mechanical and electrical connections. Operates reliably from -40°C to 105°C, suitable for demanding electronic applications.

Compliant with UL 94 V-0 safety standards. Ideal for industrial electronics, power connectors, and PCB interfacing solutions. For expert selection of PCB sockets and connectors, explore more valuable components in the PCB Sockets category on EnvMart.
