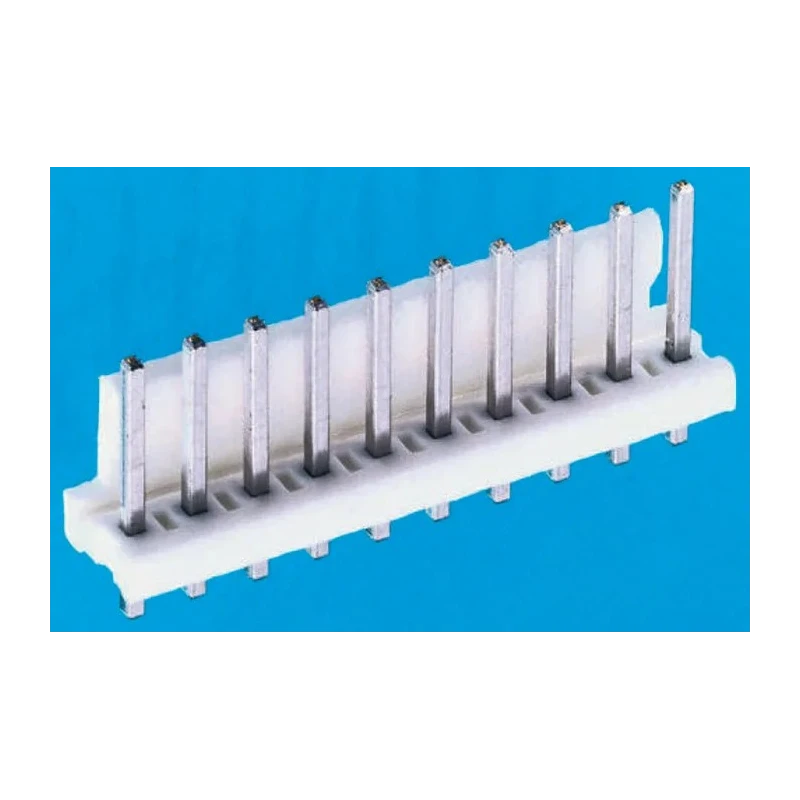

TE Connectivity MTA-156 Series Straight Through Hole Pin Header, 10 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 1-640388-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- Features 10 high-quality male contacts for robust connectivity.
- 3.96 mm pitch spacing ensures compatibility with MTA-156 IDC connectors.
- Constructed with glass filled polyester housing providing durability.
- Through hole mounting enables secure board attachment.
- Copper alloy contacts plated with tin for corrosion resistance.
- Supports current up to 7A and voltage rating of 600V.
- Operating temperature range from -65°C to 105°C for demanding environments.
- Unshrouded design allows easy access and solder termination.
Product Description
TE Connectivity 1-640388-0 MTA-156 Series Straight Through Hole Pin Header provides a reliable 10 contact wire-to-board connection system with a 3.96 mm pitch and single row unshrouded form factor. This pin header integrates copper alloy male contacts plated with tin housed within a sturdy glass filled polyester body suitable for through-hole mounting.
The connector supports a 7A current rating at 600V and can operate in temperatures ranging from -65°C to 105°C, making it versatile for various industrial, automotive, computer, and consumer electronic applications. Its friction lock mechanism ensures secure mating when paired with respective MTA-156 IDC connectors designed for rapid one-step assembly of 26 AWG to 18 AWG wires or ribbon cables.
The unshrouded design allows easy manual access for solder termination and inspection. These headers are end-to-end stackable, enhancing modular design flexibility on PCB assemblies. Ideal for use in chassis systems, driver information modules, safety and security systems as well as desktop PC and server environments.
Features 10 high-quality male contacts for robust connectivity. 3.96 mm pitch spacing ensures compatibility with MTA-156 IDC connectors. Constructed with glass filled polyester housing providing durability. Through hole mounting enables secure board attachment.
Copper alloy contacts plated with tin for corrosion resistance. Supports current up to 7A and voltage rating of 600V. Operating temperature range from -65°C to 105°C for demanding environments. Unshrouded design allows easy access and solder termination.
Friction lock feature ensures stable mating connections. Suitable for automotive, computer, and consumer electronics applications.
These pin headers streamline mass termination processes in manufacturing and maintenance operations through compatible connectors and tooling. Their proven reliability and mechanical retention make them a preferred choice across industrial, laboratory, construction, and HVAC electronics integration projects.
Explore related PCB connectors and headers in the Electronics & Electricals category on EnvMart to find complementary and advanced solutions from TE Connectivity and other leading manufacturers.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header has a voltage rating of 600V.
It supports a maximum current of 7A.
The pitch size of this connector is 3.96 mm.
The housing is made of glass filled polyester, and the contacts are copper alloy plated with tin.
It operates within a temperature range of -65°C to 105°C.
This model features 10 male contacts.
It uses solder termination for connections.
This model is unshrouded, allowing for easy access and solder termination.
It supports through hole mounting for secure board attachment.
It is suitable for automotive, computer, and consumer electronics applications.
The tail pin length is 3.18 mm.
The orientation of this model is straight.
