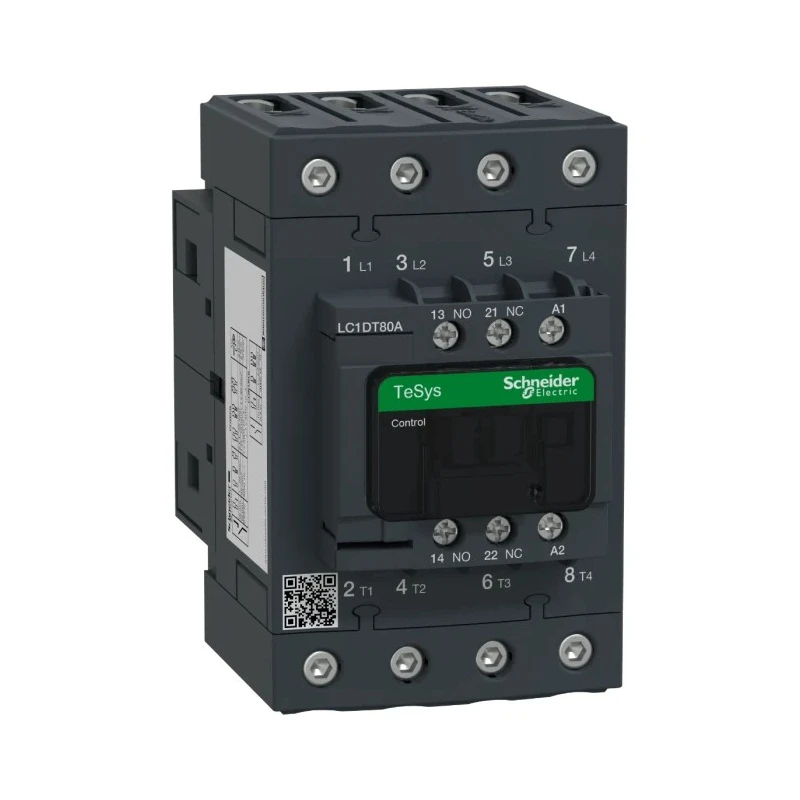

Schneider Electric LC1D Contactor, 24V AC Coil, 4-Pole, 80A, 10.2W Power Rating, 4 NO, 690V AC LC1DT80AB7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1DT80AB7 |
| Depth | 120mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 10.2W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 415V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a 24V AC coil for operation at 50/60Hz frequencies.
- Features 4 normally open power poles rated for 80A and a contact voltage of 690V AC.
- Includes 2 auxiliary contacts with a configuration of 1 normally open and 1 normally closed contact.
- Power rating of 10.2W at 415V control circuit voltage.
- Compact design with DIN rail mount, dimensions 122mm length, 70mm width, and 120mm depth.
- Suitable for operating temperatures from -5°C up to 60°C.
- Uses screw terminal type connections for load and auxiliary wiring.
- Certified to international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC1DT80AB7 is a high-quality TeSys Deca contactor featuring a 24V AC coil and 4 normally open power poles rated for 80A at 690V AC. Designed for intensive industrial use, it combines motor control and resistive load handling capabilities. The device includes 2 auxiliary contacts (1 NO and 1 NC), providing versatile switching options and enhanced control reliability. Compact and convenient, it mounts easily on DIN rails or via screw fixing, with precise dimensions of 122mm length, 70mm width, and 120mm depth.
This contactor operates reliably within a temperature range of -5°C to 60°C and supports operating rates up to 3600 cycles per hour, making it suitable for demanding industrial, manufacturing, HVAC, and automation environments. The power consumption is rated at 10.2 watts under a control voltage of 415V, ensuring energy efficiency in operation.
The terminals use a screw clamp system for secure and stable electrical connections on both power and auxiliary contacts. The NC auxiliary contact is mirror certified for safety and compliance. Certifications from CCC, CSA, EAC, IEC, RoHS, and UL ensure adherence to rigorous international standards. Manufactured in Indonesia, this component supports environmentally responsible manufacturing principles and is designed for easy disassembly, aligning with the Green Premium program.
Ideal for electrical automation, motor starters, and resistive load protection, this contactor is a reliable choice for integrating into complex electrical systems requiring robust performance. It is part of the LC1D series known for efficiency and durability in various industrial setups.
Equipped with a 24V AC coil for standardized control voltage. Four poles with 80A contact current rating support versatile applications. Includes 2 auxiliary contacts (1 NO and 1 NC) for auxiliary signaling and control. DIN rail mountable for easy installation in control panels.
Compact dimensions enable space-saving electrical setups. Certified to comply with international safety and environmental standards. Designed for robust operation with a cycle rate of up to 3600 per hour. Manufactured with sustainability in mind by Schneider Electric.
Suitable for industrial automation, HVAC, manufacturing, and motor control applications. Provides reliable switching for motors and resistive loads up to 690V AC. Explore more products in the automation and control gear category at EnvMart for professional industrial solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 10.2 watts at a control circuit voltage of 415V.
It features 4 normally open (NO) power poles and includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The dimensions are 122mm in length, 70mm in width, and 120mm in depth.
The maximum operating temperature is 60°C, while the minimum is -5°C.
It is designed for DIN rail mounting, allowing for easy installation in control panels.
The contact current rating is 80A, making it suitable for motor control and resistive load applications.
This contactor is certified to international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
The coil voltage is 24V AC, suitable for operation at 50/60Hz frequencies.
It is designed for motor control and resistive load applications, providing reliable switching capabilities.
The terminals use a screw clamp system for secure and stable electrical connections on both power and auxiliary contacts.
This contactor supports operational rates of up to 3600 cycles per hour, suitable for demanding environments.
It is manufactured in Indonesia, adhering to environmentally responsible manufacturing principles.
