TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14

Name: TE Connectivity AMPMODU HE14 Series Right Angle Through Hole PCB Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14
Brand: TE Connectivity
SKU: 210789
Price: 3.34 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Model	HE14
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	AMPMODU HE14
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm

Key Features

Shrouded design provides pin protection and reliable mating.
Made with high temperature thermoplastic housing rated UL 94V-0.
Phosphor bronze contacts plated with tin ensure excellent conductivity.
Supports up to 3A current and a voltage rating of 500V.
Operates reliably from -40°C to 105°C temperature range.
Integrated friction lock prevents mismating and ensures secure connection.
20 contacts arranged in 2 rows with 2.54 mm pitch for precise PCB interfacing.

Product Description

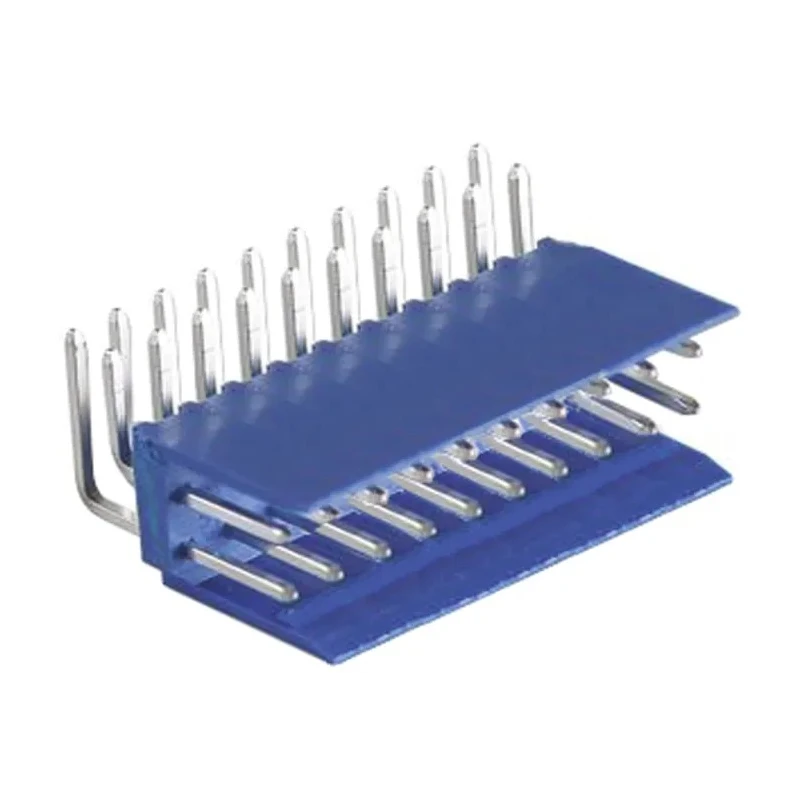

TE Connectivity HE14 series right angle through-hole PCB header is designed for robust wire-to-board interconnects in industrial, automotive, telecommunications, medical, computing, and test equipment applications. Featuring 20 phosphor bronze contacts arranged in 2 rows with a standard 2.54 mm pitch, it ensures precise and secure mating.

The header housing is made from blue, UL 94V-0 rated high temperature thermoplastic which provides excellent mechanical protection and insulation. The integrated shrouds prevent pin damage and the polarization design avoids incorrect connection, enhanced by an integrated friction lock which secures the connection during operation.

This connector supports a current rating of up to 3A and withstands voltages up to 500V, with operating temperatures ranging from -40°C to 105°C, making it suited for demanding environments.

Termination is via solder tail pins 2.9 mm in length, compatible with through-hole PCB mounting. The product conforms to no specific certifications but is built to TE Connectivity’s high manufacturing standards.

Applications include automotive control systems, industrial automation, telecommunications devices, medical instrumentation, computing hardware, storage equipment, and general test and measurement instruments, highlighting its versatility in electronic system interconnects.

Shrouded housing enhances pin protection and connector durability. Polarized design prevents incorrect mating during installation. High quality phosphor bronze contacts with tin plating ensure low resistance and reliable performance.

Rated for 3A current and 500V voltage supports robust electrical performance. Operating temperature range supports a wide spectrum of industrial and commercial environments. Right angle orientation and through-hole mount facilitate neat PCB layouts.

Integrated friction lock secures connector engagement.

This TE Connectivity AMPMODU HE14 connector is a dependable solution for industrial and electronic component interconnections. Explore EnvMart's full range of PCB Headers and connectors for additional technical solutions.
