Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator, 12V 1.5A, Fixed Output, TO-252 3-Pin NJM7812DL1A-TE1

Free Delivery in India | Lowest Global Shipping Charges

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator, 12V 1.5A, Fixed Output, TO-252 3-Pin NJM7812DL1A-TE1

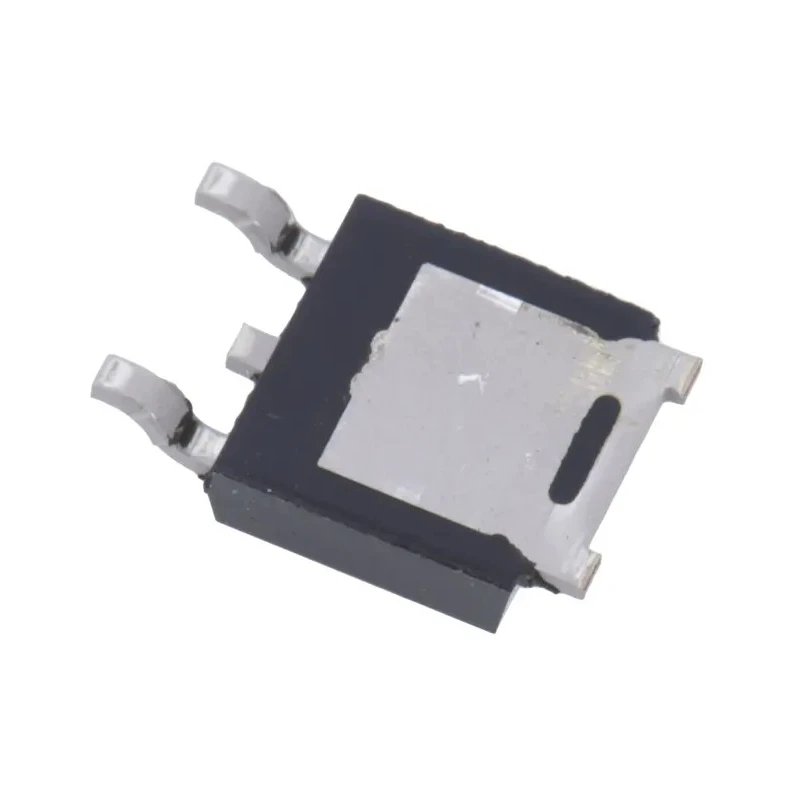

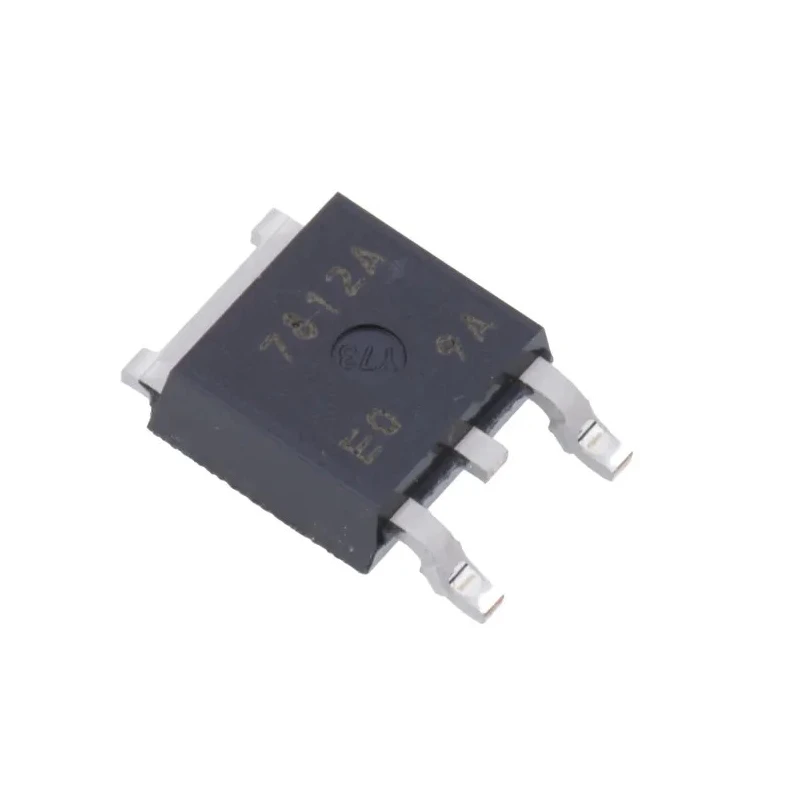

Name: Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator, 12V 1.5A, Fixed Output, TO-252 3-Pin NJM7812DL1A-TE1
Brand: Nisshinbo Micro Devices
SKU: 219112
Price: 1 USD
Availability: InStock



Category Voltage Regulator Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	Japan
Brand	Nisshinbo Micro Devices
Height	2.29mm
Length	6.54mm
Model	NJM7812DL1A-TE1
Width	6.04mm
Mount Type	Surface
Output type	Fixed
Series	NJM78xx
Power Rating	1W
Output Current	1.5A
Maximum Operating Temperature	85°C
Package Type	TO-252
Load Regulation	240 mV
Minimum Operating Temperature	-40°C
Polarity	Positive
Regulator Type	Linear Voltage
Number of outputs	1
Maximum Input Voltage	35V
Output Voltage	12V
Quiescent Current	4.3mA
Line Regulation	240 mV
Pin Count	3

Key Features

This device features internal thermal overload protection and current limiting for safe operation.
It comes in a compact TO-252 3-pin surface mount package suitable for space-constrained applications.
The regulator supports a wide input voltage range up to 35V, accommodating various power supply conditions.
It exhibits excellent line and load regulation performance of 240mV each.
The quiescent current is a low 4.3mA, improving efficiency in battery-powered designs.
The operating temperature range spans from -40°C to 85°C, ensuring reliability in harsh environments.
Built using bipolar technology, the NJM7812DL1A-TE1 provides stable and reliable fixed voltage output.
This regulator is ideal for on-card regulation in electronic circuits to avoid single-point regulation issues.

Product Description

The Nisshinbo Micro Devices NJM7812DL1A-TE1 is a 1-channel linear voltage regulator designed to provide a stable fixed output voltage of 12V with an output current capability of up to 1.5A. It is housed in a compact TO-252 package featuring 3 pins, making it suitable for surface mounting on PCBs where space constraint is critical.

Featuring internal thermal overload protection, internal short circuit current limiting, and safe area compensation, the device safeguards itself and the circuit during abnormal conditions. Its low quiescent current of 4.3mA enhances power savings especially in low power applications.

This regulator provides excellent line regulation and load regulation at 240mV each, ensuring consistent voltage output despite input voltage and load fluctuations. It operates effectively over a broad input voltage up to 35V and within a temperature range from -40°C to +85°C, enabling use in diverse environments including industrial and consumer electronics.

Built with bipolar technology, the NJM7812DL1A-TE1 is an ideal choice for applications requiring fixed output voltage regulation such as power supplies, embedded systems, and electronic instrumentation. Its fixed output voltage and current capabilities facilitate easy integration without complex external components.

Internal thermal overload and current limiting for protection. Compact TO-252 surface mount package for efficient PCB layout. Stable fixed 12V output voltage at a current of 1.5A. Wide operating temperature and input voltage ranges.

Low quiescent current for enhanced power efficiency. Robust bipolar technology ensuring reliable linear regulation. Suitable for industrial, electronic components, and power management IC applications.

This product is supplied new and originates from Japan, ensuring quality manufacturing standards. The NJM78xx series regulatory ICs are widely used for reliable voltage regulation needs.

Explore more high-quality Voltage Regulators and power management solutions in the Electronics & Electricals category at EnvMart for your industrial and laboratory power regulation applications.
