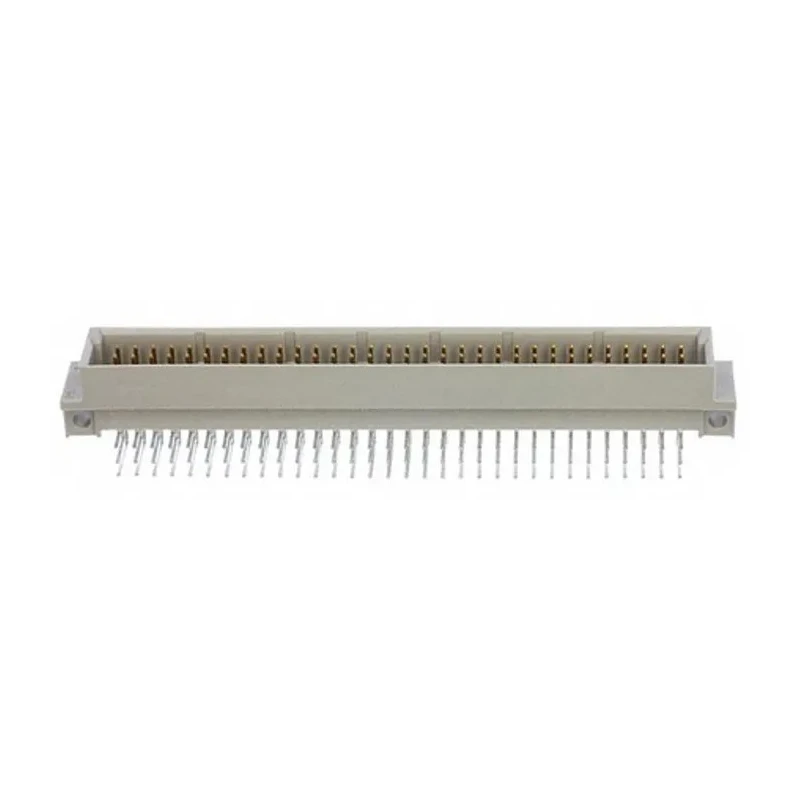

TE Connectivity Eurocard DIN 41612 Connector 96 Way 2.54 mm Pitch Type C/2 Through Hole Solder Class C2 3 Row 9-1393644-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/B/C |
Key Features
- This connector features a solder termination type suitable for high integrity connections.
- It operates at a voltage rating of 250V AC and supports a current of 1.5A per contact.
- The contact material is high-quality copper alloy ensuring durability and conductivity.
- The connector housing is made from flame retardant thermoplastic material providing safety and robustness.
- The product meets DIN 41612 and IEC 60603-2 standards with Class C2 solder class rating.
- Operates reliably between -55°C and 125°C, suitable for industrial environments.
- Polarizing features prevent mis-mating and ensure proper assembly.
- The right angle orientation and three row configuration are ideal for backplane and rack applications.
Product Description
TE Connectivity 9-1393644-1 Eurocard DIN 41612 Connector is a 96 contact male connector designed with a 2.54 mm pitch, through hole mounting and solder termination in a three-row configuration. Manufactured to meet DIN 41612 and IEC 60603-2 standards, this connector offers excellent electrical performance and signal integrity.
The connector's housing is crafted from robust, flame retardant thermoplastic, providing enhanced safety in demanding industrial environments. The contacts are made from high-quality copper alloy, ensuring reliable conductivity and low contact resistance, rated at a maximum of 15 milliohms.
With an operating temperature range from -55°C to 125°C, this connector is suited for a variety of challenges in industrial control, data center hardware, telecommunication equipment, and modular rack systems. Its polarized design features prevent mis-mating, providing assured assembly and operational reliability.
This Eurocard connector supports a current capacity of 1.5A and a voltage rating of 250V AC. It is optimized for right angle orientation installations and fits common bus systems including STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, NUBUS, VXi Bus, and VME 64X.
The solder class is Class C2, with a ‘class’ rating ensuring superior solder post lengths and reliable joint quality. The product is RoHS compliant, reflecting its environmental safety.
This connector has a high-quality design supporting signal integrity for demanding applications. Polarization features prevent mis-mating in complex assemblies. Flame retardant housing ensures safety in electrical applications.
Suitable for use in industrial, telecommunications, and data center equipment. Supports a wide operating temperature range for industrial use. Designed for use in multiple bus systems and modular racks.
This product is an excellent choice for engineers and technicians requiring durable, certified Eurocard connectors with consistent performance. Explore more TE Connectivity connectors and Eurocard solutions with EnvMart to find the ideal match for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 250V AC.
The connector supports a current of 1.5A per contact.
It operates reliably between -55°C and 125°C.
This model features a solder termination type suitable for high integrity connections.
It has 96 contacts arranged in a three-row configuration.
The housing is made from flame retardant thermoplastic and the contacts are made from high-quality copper alloy.
It meets DIN 41612 and IEC 60603-2 standards and is RoHS compliant.
The maximum contact resistance is rated at 15 milliohms.
This connector is designed for right angle orientation installations.
It is suitable for industrial control, data center hardware, telecommunication equipment, and modular rack systems.
The pitch size is 2.54 mm.
The connector includes polarizing features that prevent mis-mating and ensure proper assembly.
