TE Connectivity Right Angle Edge Connector Female, Cable Mount, 3-Contacts, 2.5 mm Pitch, 1 Row, IDT Termination 1-966194-3

Free Delivery in India | Lowest Global Shipping Charges

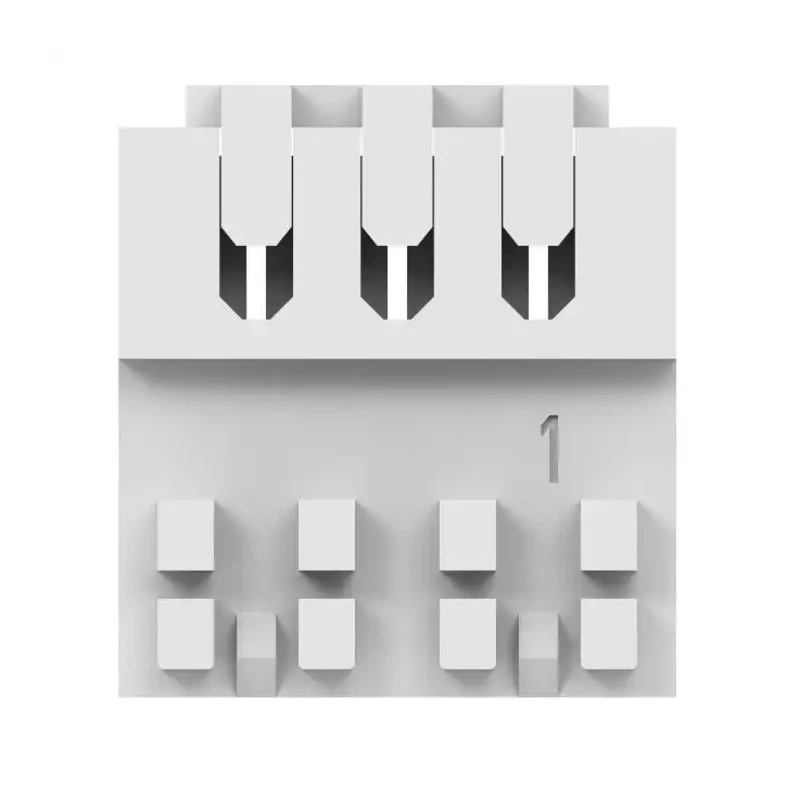

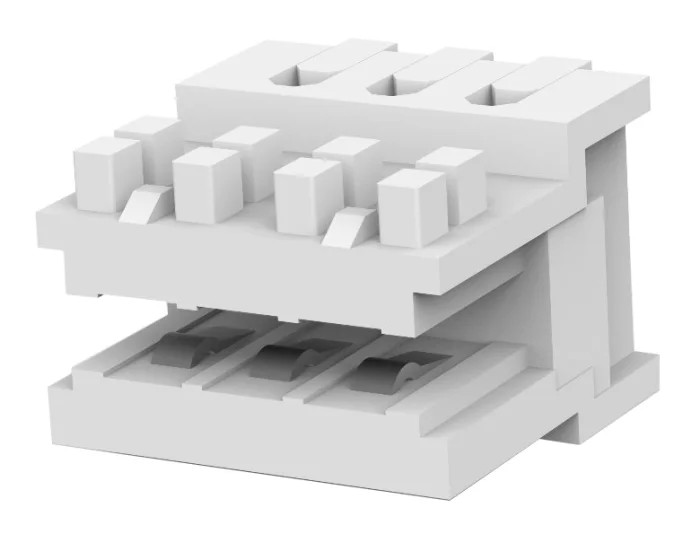

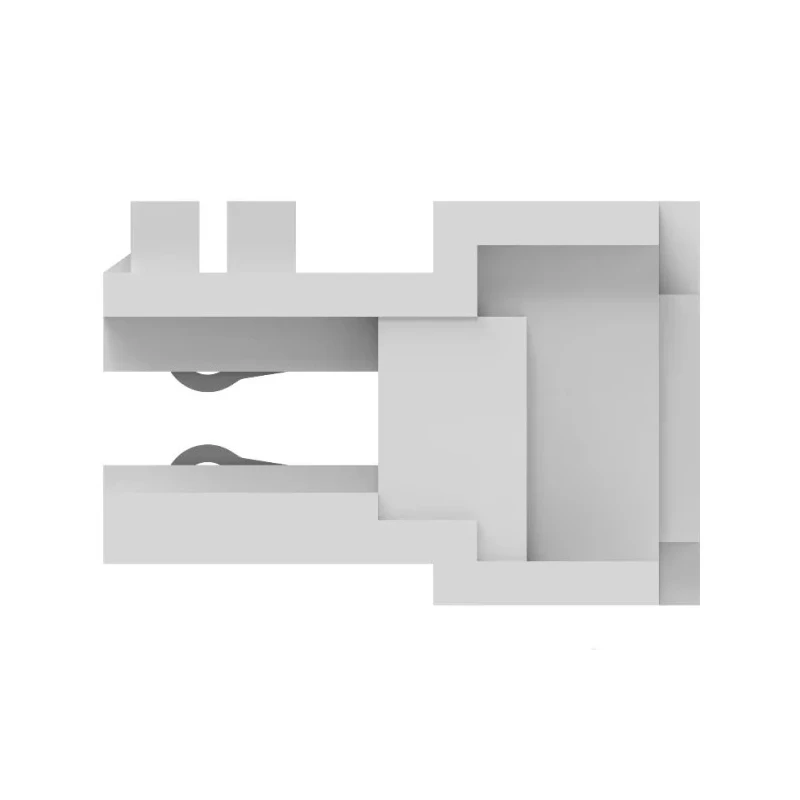

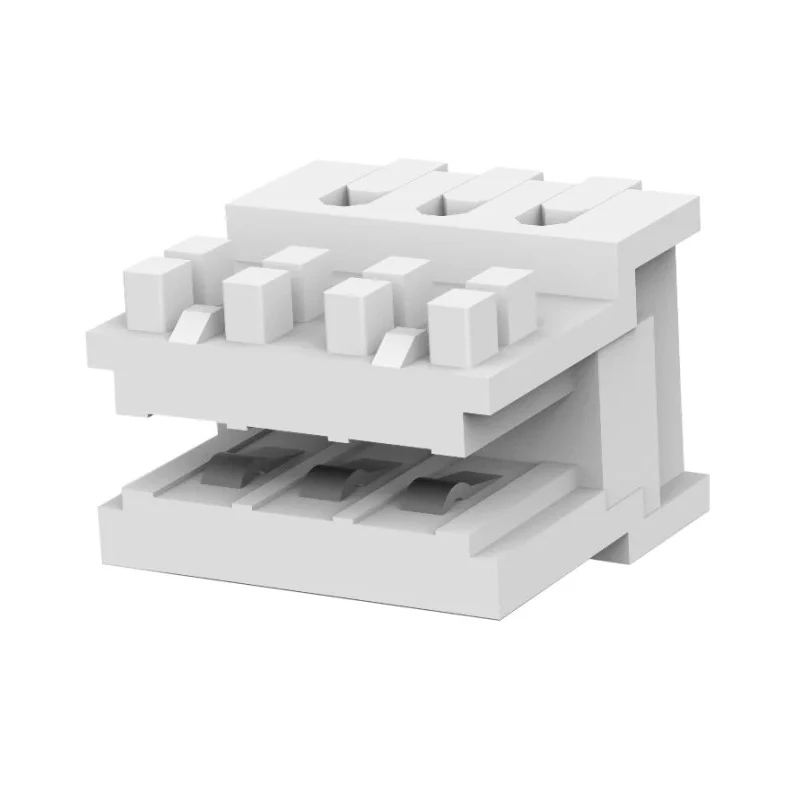

TE Connectivity Right Angle Edge Connector Female, Cable Mount, 3-Contacts, 2.5 mm Pitch, 1 Row, IDT Termination 1-966194-3

Name: TE Connectivity Right Angle Edge Connector Female, Cable Mount, 3-Contacts, 2.5 mm Pitch, 1 Row, IDT Termination 1-966194-3
Brand: TE Connectivity
SKU: 210487
Price: 0.46 USD
Availability: InStock



Category Edge Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	Italy
Voltage	63V
Brand	TE Connectivity
Orientation	Right Angle
Current	2A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Termination Type	IDT
Maximum Operating Temperature	110°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Female
Connector Gender	Female
Card Type	Dual Edge

Key Features

Constructed for right angle orientation ensuring secure installation.
Features female connector gender with reliable IDC termination.
Made with phosphor bronze contacts plated with tin for durability.
Operates reliably in temperature ranges from -40°C to 110°C.
Suitable for voltages up to 63V and current rating of 2A.
Housing material composed of sturdy Polybutylene Terephthalate.
Includes locking feature and ribbed keying for accurate mating and secure connection.
Designed according to RAST 2.5 standard for consistent compatibility.

Product Description

TE Connectivity 1-966194-3 Right Angle Edge Connector Female is a cable mount connector designed with 3 contacts spaced at a 2.5 mm pitch in a single row configuration. It employs an IDC termination type facilitating quick, reliable wire connections. The connector utilizes phosphor bronze contacts plated with tin, housed in durable Polybutylene Terephthalate material ensuring protection and resilience against mechanical stress.

Its right angle orientation aids in compact board layouts and space-saving designs. The locking mechanism and ribbed keying provide secure mating and strain relief, preventing accidental disconnections. The contact gender is female, designed to mate with corresponding male connectors, maintaining high-quality electrical contact and low resistance.

Operating temperature ranges from -40°C to 110°C make this connector suitable for industrial environments and harsh conditions. Rated for 63V and a current capacity of 2A, it supports applications in telecommunications, automotive electronics, consumer electronics, vending machines, and measuring devices.

Compliant with the AMP DUOPLUG 2.5 mm RAST standard, this connector system supports both single piece and two-piece connections, enhancing flexibility in design and assembly. Right angle orientation ensures compact installation.

Durable housing protects contacts and provides strain relief. Compatible with RAST 2.5 standard PCB frames and headers. Reliable tin-plated phosphor bronze contacts for excellent conductivity. Locking and keying features offer secure, accurate mating.

Suitable for harsh temperature ranges and industrial applications. Supports a wide range of sectors including automotive and telecommunications.

This high-quality Edge Connector is manufactured in Italy, guaranteeing compliance with quality standards. It is an essential component for electronic engineers and manufacturers requiring reliable cable-based edge connections. Browse EnvMart for a broad selection of connectors and electronic components for various industrial and commercial needs.
