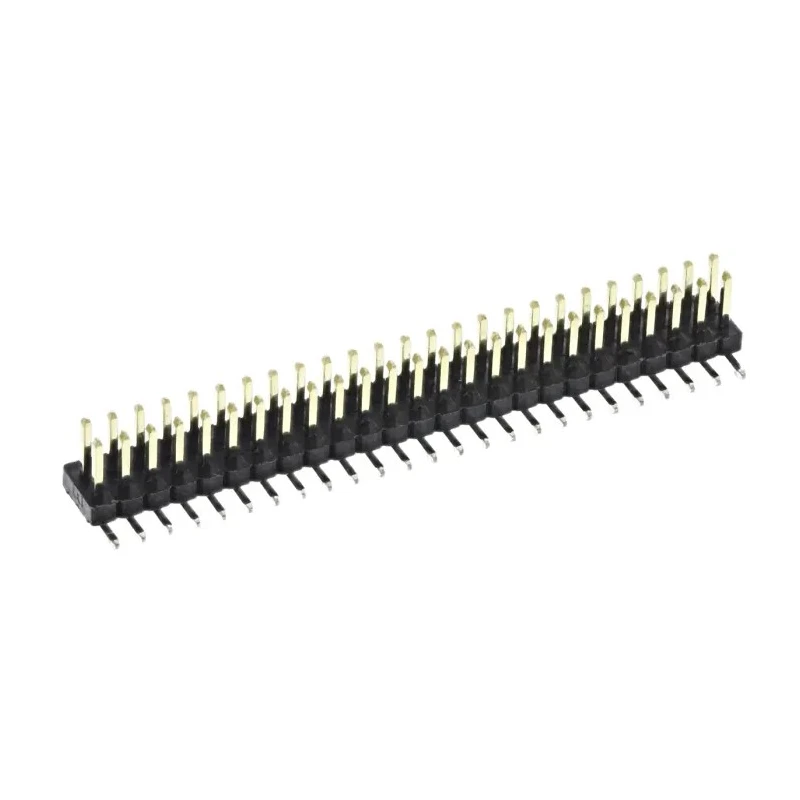

HARWIN Archer M50 Series Straight Surface Pin Header 50 Contacts 1.27 mm Pitch 2 Row Unshrouded M50-3602542

HARWIN M50-3602542 Archer M50 Series Straight Surface Pin Header is a compact and reliable connector designed for electronic applications requiring 50 contacts with 1.27 mm pitch spacing. This 2-row unshrouded pin header supports both board-to-board and wire-to-board systems with surface mounting and solder tail termination for secure connections.

The housing made from liquid crystal polymer provides excellent durability while gold-plated copper alloy contacts assure superior electrical conductivity and resistance to corrosion. It operates efficiently over a wide temperature range from -40°C up to 105°C, making it suitable for demanding environments.

Typical use cases for this connector include industrial controls, automotive electronics, telecommunications equipment, and sophisticated medical devices such as diagnostic and monitoring machines. The 3 mm mating pin length and male contact design ensure compatibility with a variety of mating connectors and sockets.

The unshrouded design offers design flexibility, allowing easy cutting to size and modification for specific electronic layouts. The compact 1.27 mm pitch further helps in conserving PCB space, enabling high-density circuit configurations.

Features high-quality liquid crystal polymer housing for durability. Gold-plated copper alloy contacts ensure excellent conductivity. Designed for board-to-board and wire-to-board connector systems. Suitable for surface mount applications with solder termination.

Operates reliably between -40°C and 105°C temperature range. Compact 1.27 mm pitch spacing supports high-density PCB layouts. Offers a male contact gender with a 3 mm mating pin length. Ideal for use in industrial, telecommunications, automotive, and medical equipment.

Manufactured in Taiwan, ensuring high-quality standards. Unshrouded 2-row configuration supports flexible design and custom modifications.

This HARWIN Archer M50 Series pin header provides a dependable solution for electronic device manufacturers seeking compact, high-density connection components. Explore more in the PCB Headers category for advanced connector solutions meeting industrial and commercial requirements.
