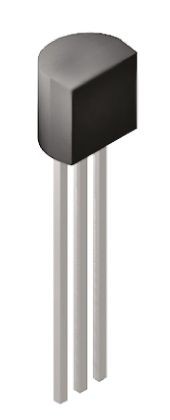

Taiwan Semiconductor 3002E/TO 5-Channel Low Dropout Voltage Regulator 3V 250mA TO-92 3-Pin MCP1702
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP1702 |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MCP1702 |
| Output Current | 250mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Load Regulation | 1 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 13.2V |
| Output Voltage | 3V |
| Quiescent Current | 2μA |
| Line Regulation | 0.1 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- This voltage regulator supports a wide input voltage range from 2.7V to 13.2V.
- It features extremely low quiescent current of 2μA, ideal for battery-powered applications.
- The device is designed for through-hole mounting with a positive polarity output and fixed output type.
- Line regulation is specified at 0.1% per volt and load regulation at 1%, providing stable voltage supply.
- Operating temperature ranges from -40°C to 125°C, suitable for industrial and automotive environments.
- The product complies with RoHS standards, ensuring environmentally-friendly manufacturing.
- The package contains a 3-terminal setup supporting five output channels combined internally.
Product Description
Microchip's MCP1702-3002E/TO is a 5-channel low dropout (LDO) voltage regulator designed for precise 3V fixed output at a maximum current of 250mA. Packaged in a compact TO-92 3-Pin through-hole package, this voltage regulator is ideal for low power applications requiring energy efficiency with a quiescent current of just 2μA.
This regulator operates over a broad input voltage range from 2.7V up to 13.2V, delivering excellent performance with line regulation of 0.1% per volt and load regulation of 1%. Its positive polarity output and fixed output type allow for simple integration into electronic circuits, ensuring a stable and reliable voltage supply.
Operating temperature tolerance from -40°C to 125°C makes the MCP1702-3002E/TO suitable for harsh industrial environments, including automotive applications, although it is not automotive certified. The device meets RoHS compliance, supporting environmentally conscious manufacturing and deployment.
The physical footprint of the regulator is minimal with dimensions of 4.71mm in length, 3.62mm in width, and 4.62mm in height. This compact design facilitates easy mounting on through-hole PCBs.
Fixed 3V output voltage with maximum 250mA current. Low quiescent current of 2μA for energy-efficient operation. Wide input voltage from 2.7V to 13.2V. Stable operation with line regulation of 0.1%/V and load regulation of 1%.
Suitable for temperatures from -40°C to 125°C. RoHS compliant for environmentally friendly usage. Compact TO-92 3-pin package suitable for through-hole mounting. Positive polarity, fixed output design.
This voltage regulator is ideal for electronic applications requiring low voltage dropout and regulated power supply performance in compact footprint scenarios. It is suitable for industrial, automotive (non-certified), consumer electronics, and general power management applications.
Explore more power management ICs and Voltage Regulators on EnvMart for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP1702-3002E/TO provides a fixed output voltage of 3V.
This voltage regulator can deliver a maximum output current of 250mA.
It operates over a wide input voltage range from 2.7V to 13.2V.
The quiescent current is extremely low at just 2μA, making it suitable for battery-powered applications.
The dimensions of the package are 4.71mm in length, 3.62mm in width, and 4.62mm in height.
It is designed for through-hole mounting, suitable for easy integration into PCBs.
The line regulation is specified at 0.1% per volt, and the load regulation is at 1%.
The operating temperature range is from -40°C to 125°C, making it suitable for industrial applications.
Yes, the MCP1702-3002E/TO complies with RoHS standards, ensuring environmentally-friendly manufacturing.
This voltage regulator features five output channels combined internally.
The output polarity is positive, which simplifies integration into electronic circuits.
This model belongs to the MCP1702 series of low dropout voltage regulators.
