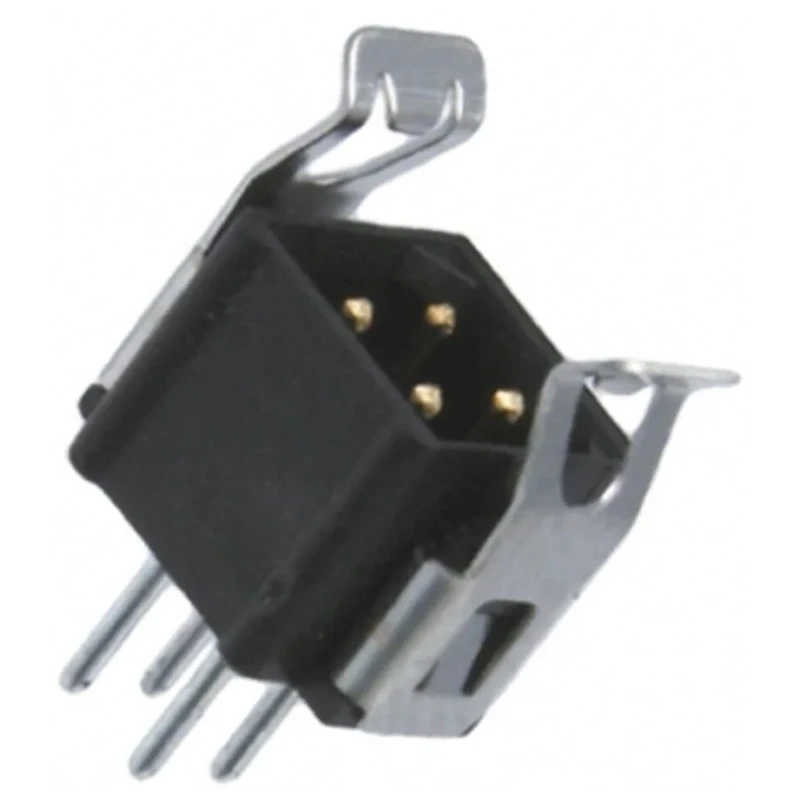

HARWIN Datamate L-Tek Series Straight Through Hole 4 Contact PCB Header, 2 mm Pitch, 2 Row, Shrouded M80-8530442
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M80-8530442 |
| Mount Type | Through Hole |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | Datamate L-Tek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
Key Features
- Designed for board-to-board and wire-to-board connector systems.
- Features gold-plated phosphor bronze male contacts for reliable signal transmission.
- Through hole mount type ensures secure PCB attachment.
- Operates reliably between -55°C and 125°C temperature range.
- Rated for 3A electrical current with 120V maximum voltage.
- Constructed from durable polyphenylene sulphide housing for harsh environments.
- 3 mm tail pin length typical for DIL plug vertical PC tail configuration.
- Shrouded for enhanced connection integrity and safety under vibration and shock.
Product Description
HARWIN M80-8530442 is a high-reliability PCB header from the Datamate L-Tek Series, featuring a straight through hole male connector with 4 contacts arranged in 2 rows at 2 mm pitch. Designed primarily for board-to-board and wire-to-board applications, this shrouded header ensures superior connection integrity in demanding electronic systems.
The contacts use gold-plated phosphor bronze material to guarantee excellent conductivity and corrosion resistance. The polyphenylene sulphide housing material provides mechanical strength and resistance to high temperatures and harsh environmental conditions, making it suitable for industrial and commercial electronics.
This PCB header has a 3A current rating and 120V voltage capacity, supporting operating temperatures from -55°C to 125°C. The 3 mm tail pin length configuration is typical for DIL plug vertical PC tails and supports secure solder termination for reliable assembly.
The shrouded design offers additional safety by protecting contacts against accidental shorts and enhancing mating stability, especially in applications subject to vibration, shock, or dynamic acceleration forces.
The Datamate L-Tek connectors comply with various standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, reflecting their suitability for defense, aerospace, industrial automation, and other critical uses.
Designed for board-to-board and wire-to-board connector systems. Gold-plated phosphor bronze male contacts ensure signal integrity. Durable polyphenylene sulphide housing for harsh environments. Rated for 3A current and 120V voltage.
Operating temperature range of -55°C to 125°C for wide environmental tolerance. 3 mm tail pin length suited for DIL plug vertical PC tail assembly. Shrouded connector enhances connection safety and robustness. Complies with key industry standards for reliability.
Ideal for industrial, aerospace, military, and commercial electronics applications.
This product is a new, high-quality HARWIN PCB header, ideal for improving connection reliability and electrical performance in challenging operating conditions. Explore more PCB Headers and connector solutions in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 120V.
This model has a current rating of 3A.
The operating temperature range for this connector is from -55°C to 125°C.
The contacts are made from gold-plated phosphor bronze, while the housing is constructed from polyphenylene sulphide.
This PCB header features 4 contacts arranged in 2 rows.
This model uses solder termination for secure assembly.
The HARWIN M80-8530442 is a shrouded connector, enhancing connection integrity and safety.
The pitch size of the contacts in this header is 2 mm.
The tail pin length for this PCB header is 3 mm, typical for DIL plug vertical PC tails.
This connector is suitable for board-to-board and wire-to-board applications, ideal for industrial and commercial electronics.
The Datamate L-Tek connectors comply with standards including BS9525-F0033, MIL C 55302, and CEC 75101-008.
The HARWIN M80-8530442 is manufactured in the United Kingdom.
