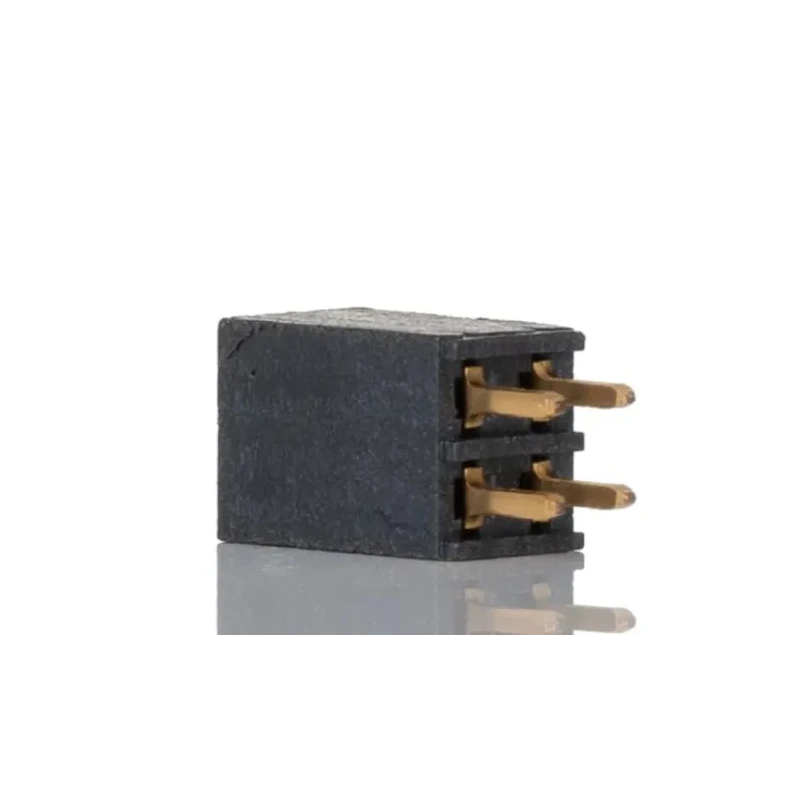

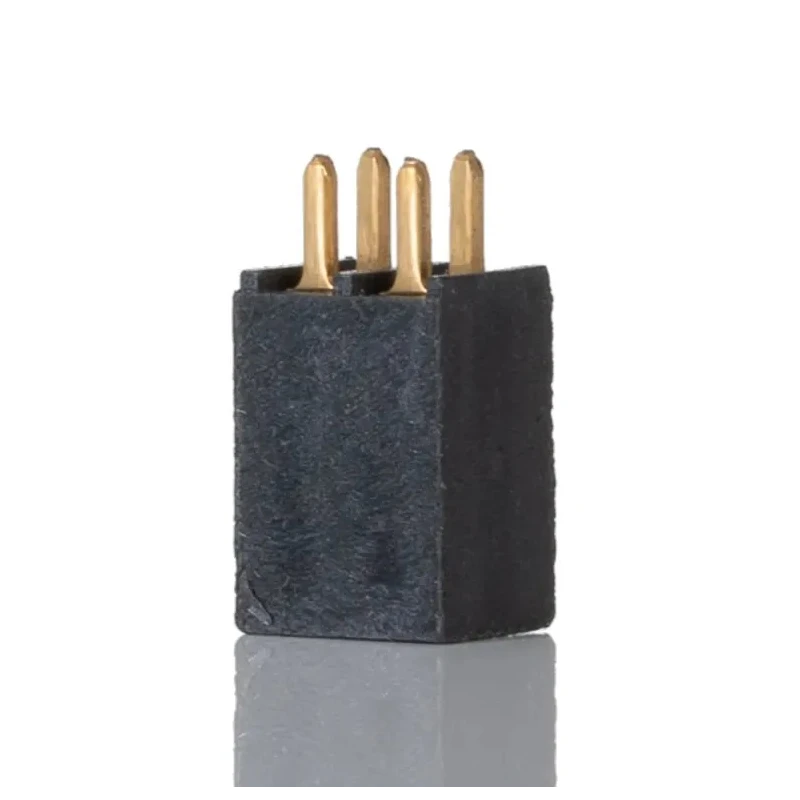

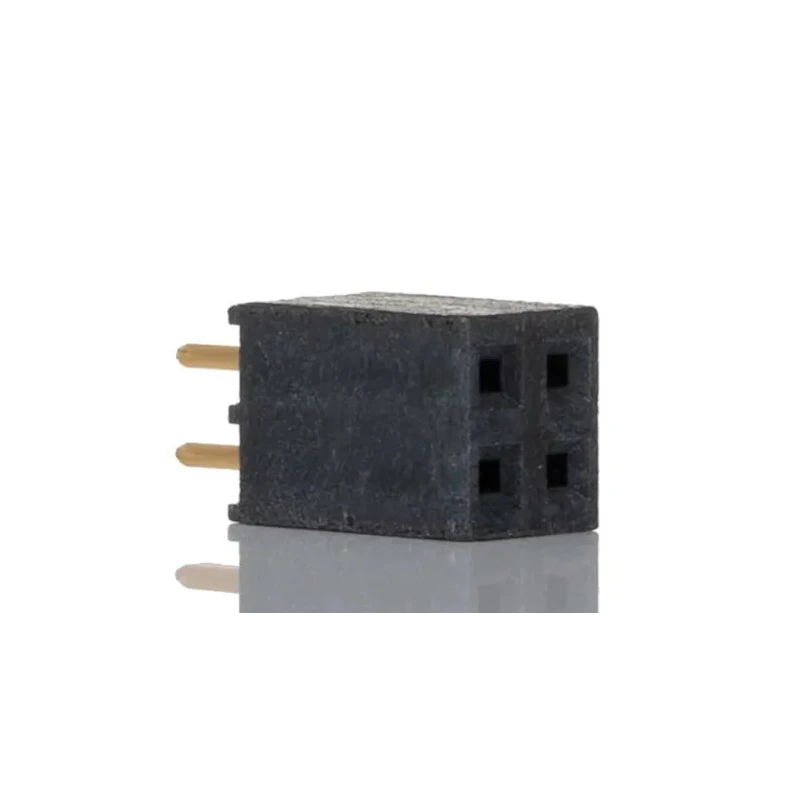

Samtec SSQ Series Straight Through Hole PCB Socket, 4-Contact, 2 Row, 2.54 mm Pitch Solder SSQ-102-01-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7.6A |
| Model | SSQ-102-01-G-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Constructed with bronze contacts plated in gold for excellent conductivity and corrosion resistance.
- Features a liquid crystal polymer housing for high durability and insulation.
- Through hole mount type with straight orientation for stable PCB connections.
- Operates reliably in temperature ranges from -55°C to 125°C suitable for harsh environments.
- Low insertion force of 0.92N ensures ease of assembly and maintenance.
- Reusable design supports up to 100 insertion cycles, ideal for frequent reconfiguration.
- Meets industrial demands for telecommunications, military, testing, and automation applications.
Product Description
Samtec SSQ-102-01-G-D Straight Through Hole PCB Socket is a high-quality 4-contact, 2-row connector with a precise 2.54 mm pitch, engineered for board-to-board connections requiring high reliability.
Its bronze contacts with gold plating ensure excellent electrical conductivity and resistance to corrosion, making it ideal for industrial automation, military equipment, telecommunications centers, and testing laboratories.
The socket housing is made from liquid crystal polymer, providing electrical insulation and mechanical robustness. Its through hole mount and straight orientation facilitate easy PCB integration, with a low insertion force of 0.92N to minimize assembly effort.
Designed to operate within a broad temperature range from -55°C to 125°C, this PCB socket is suitable for harsh industrial environments. Furthermore, its reusability persists up to 100 insertion and disconnection cycles, supporting setups requiring frequent configuration changes.
Bronze contact material with gold plating ensures durability and conductivity. Liquid crystal polymer housing offers excellent electrical insulation. Through hole mount and straight orientation provide stable mechanical and electrical connection.
Operating temperature range from -55°C to 125°C supports industrial and military applications. Low insertion force of 0.92N for quick and easy assembly. Reusability of up to 100 cycles suits frequent reconfiguration needs.
This Samtec SSQ Series PCB socket is designed for high performance in demanding industrial, laboratory, telecommunications, and military applications. Explore more electronic connectors and components in EnvMart's extensive catalog for your precise project requirements.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 7.6A.
The pitch of the contacts in this connector is 2.54 mm.
The contacts are made of bronze and are plated in gold, while the housing is constructed from liquid crystal polymer.
This PCB socket operates reliably within a temperature range from -55°C to 125°C.
This model supports up to 100 insertion and disconnection cycles.
It utilizes a through hole mount type for stable PCB connections.
The orientation of this model is straight.
The voltage rating for this PCB socket is 550V.
This connector features 4 contacts.
The termination type for this PCB socket is solder.
This model is suitable for telecommunications, military, testing, and automation applications.
The sub-type of this connector is Board-to-Board.
