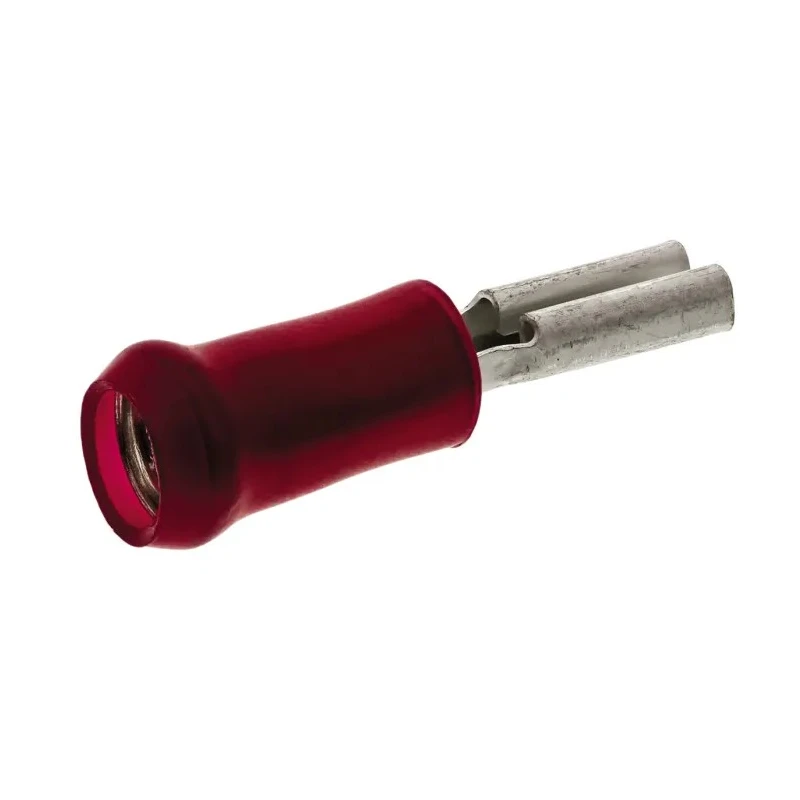

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.41 mm Tab Size 165564-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.41 mm Tab Size 165564-1

Name: TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.41 mm Tab Size 165564-1
Brand: TE Connectivity
SKU: 210086
Price: 0.83 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
Orientation	Straight
Model	165564-1
Gender	Female
Insulation	Insulated
Overall Length	19.8mm
Contact Material	Brass
Series	PIDG FASTON .110
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	15AWG
Tab Width	2.79mm
Tab Thickness	0.41mm
Tab Size	2.79 x 0.41 mm

Key Features

Compatible with wire gauges from 22 AWG to 15 AWG.
Features a 2.79 x 0.41 mm tab size for precise connection.
Constructed with brass contact material and tin plating for corrosion resistance.
Red nylon insulated sleeve provides electrical insulation and identification.
Straight orientation ensures easy and secure connections.
Overall connector length is 19.8 mm, optimizing compact installations.
Designed for industrial and electronic component applications.
Ensures maximum contact and tensile strength after crimping.

Product Description

TE Connectivity 165564-1 PIDG FASTON .110 Red Insulated Female Spade Connector is a high-quality crimp-type wire terminal designed for secure and efficient electrical connections. This connector supports wire sizes ranging from 22 AWG to 15 AWG with a precise tab size of 2.79 x 0.41 mm, making it suitable for a variety of electronic, industrial, and automotive applications requiring reliable wire termination.

The connector features a brass contact material with tin plating that enhances durability, corrosion resistance, and conductivity. It is enclosed within a red nylon insulation sleeve which not only provides electrical insulation but also aids in quick color-coded identification during installation and maintenance tasks.

With a straight orientation and an overall length of 19.8 mm, this female Spade Connector is engineered to deliver maximum contact and tensile strength after crimping, ensuring stable and long-lasting connections in demanding environments.

These connectors are ideal for use in industrial control panels, automotive electrical systems, manufacturing machinery wiring, and general electrical maintenance. Compatible with wire gauges from 22 AWG to 15 AWG. Precise 2.79 x 0.41 mm tab size for secure fit.

Brass contact with tin plating for enhanced conductivity and corrosion resistance. Red nylon insulation sleeve for electrical isolation and color coding. Straight orientation simplifies installation in tight spaces. Compact overall length of 19.8 mm for space-saving designs.

Ensures excellent tensile strength following crimping for durability. Widely applicable in automotive, industrial, and electronic wiring systems. Meets performance requirements without specific certifications.

This TE Connectivity product belongs to the PIDG FASTON .110 series, recognized for quality and reliability in wire terminal solutions. EnvMart offers an extensive selection of wire terminals and connectors ideal for professional, commercial, and industrial electrical applications.
