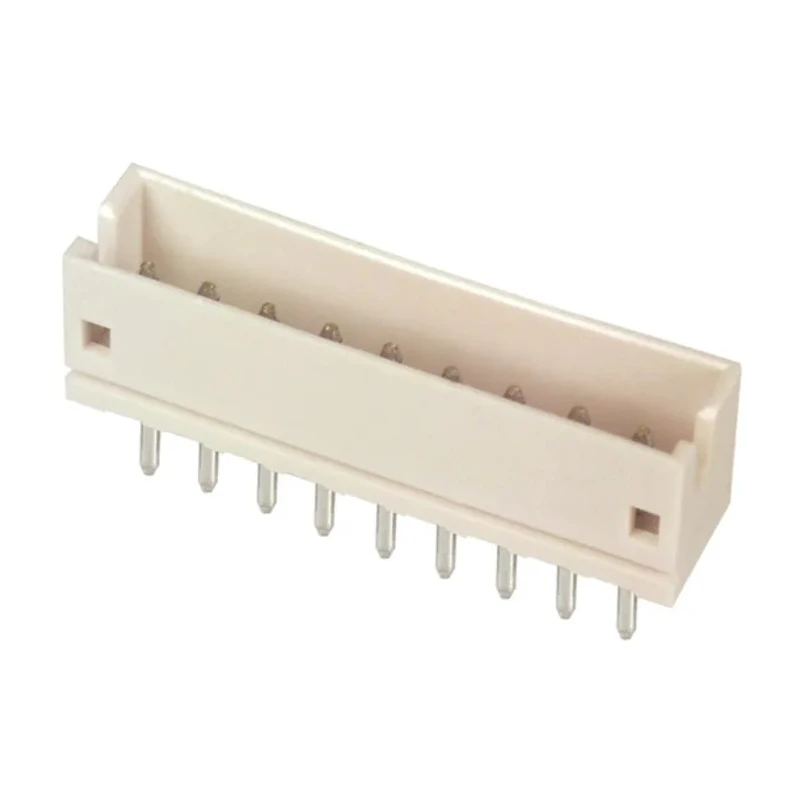

JST ZH Series Top Entry Through Hole Shrouded PCB Header 9 Contacts 1.5 mm Pitch 1 Row B9B-ZR (LF)(SN)

JST B9B-ZR (LF)(SN) is a top entry, through hole PCB header from the ZH Series designed for wire-to-board applications using a 1.5 mm pitch with 9 male contacts arranged in one row. This shrouded header features a compact, low-profile nylon housing which provides reliable contact construction and mechanical protection.

The PCB header supports a current rating of 1 amp and voltage up to 50 volts, suitable for various electronics and industrial equipment requiring secure signal connections. The contacts are made from brass with tin plating to ensure electrical conductivity and resistance to corrosion. It uses a solder termination type and is compatible with PC Board thickness ranging from 0.6 mm to 1.2 mm, ideal for compact PCB designs.

The operating temperature range of -25°C to 85°C makes it suitable for diverse industrial environments including manufacturing equipment, embedded electronics, and automation control systems. The shrouded design prevents accidental disconnection and enhances durability.

Designed also to be fully compatible with ZR insulation displacement connectors, it provides flexible wire-to-board system configurations. The housing includes lances to ensure firm locking with mating connectors.

This JST PCB header finds extensive use across industrial, laboratory, commercial electronics manufacturing, and electronics prototyping applications where reliable electrical connections and compact form factor are critical.

The header features a compact and low profile 1.5 mm pitch design for space efficiency. It supports a current rating of 1 amp and a voltage rating of 50 volts. Constructed with a nylon housing and brass contacts plated with tin for durability.

Designed for through hole mounting with solder termination and a male contact gender. The connector is shrouded to provide protection and secure connections. Operates reliably between -25°C and 85°C temperature range. Compatible with ZR insulation displacement connectors with housing lances for secure locking.
