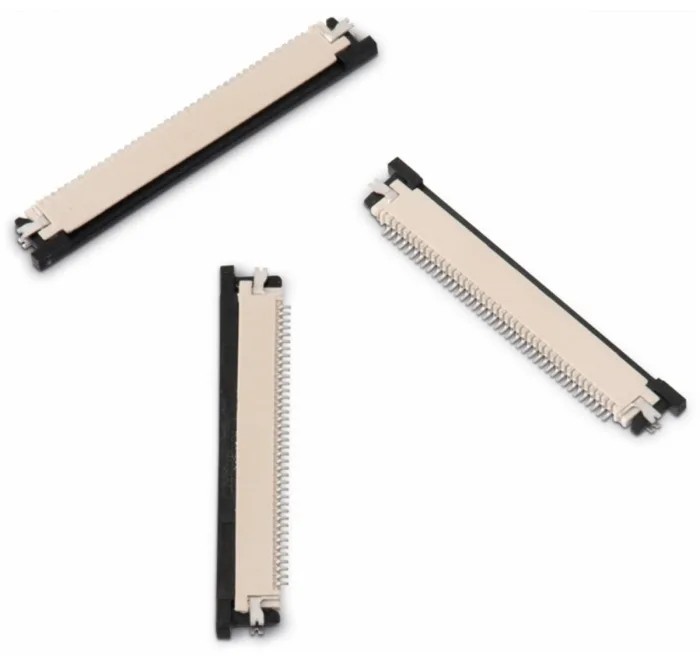

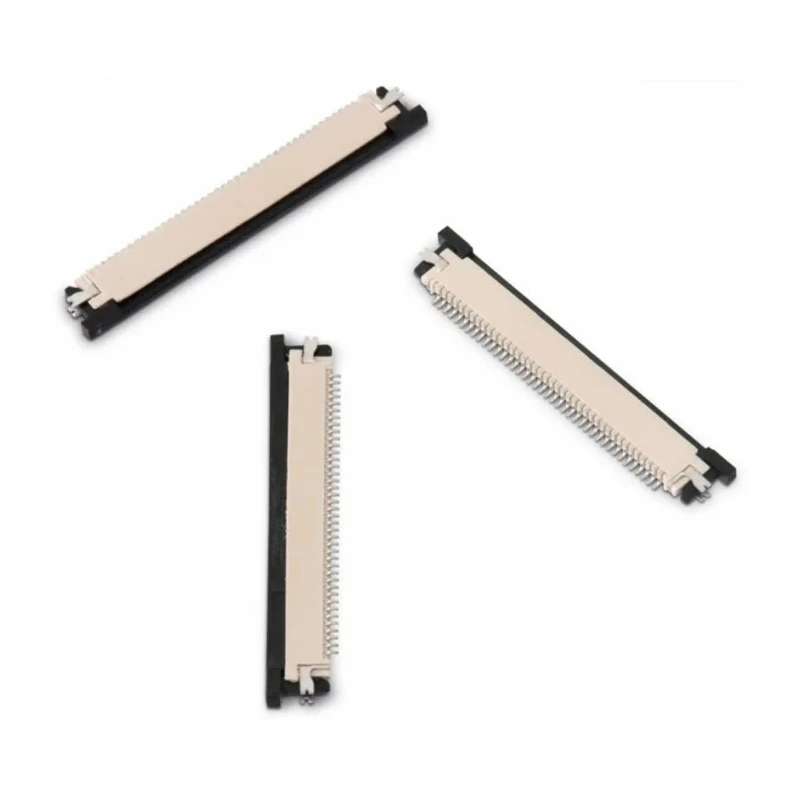

Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female FPC Connector Surface Mount 687140183622

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female FPC Connector Surface Mount 687140183622

Name: Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female FPC Connector Surface Mount 687140183622
Brand: Wurth Elektronik
SKU: 80645
Price: 3.21 USD
Availability: InStock



Category PCB Connectors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	50V ac
Brand	Wurth Elektronik
Orientation	Horizontal
Current	400mA
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	WR-FPC
Termination Type	Surface Mount
Maximum Operating Temperature	85°C
Sub Type	FPC
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin over Nickel
Number of Contacts	40
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

Features a zero insertion force (ZIF) mechanism with rotary flip lock for reliable retention.
Low profile 1.2 mm height for space-saving on dense circuit boards.
Top contact configuration, providing secure electrical connection with flexible printed circuits.
40-way female connector, suitable for displays, touch panels, mobile devices, and industrial electronics integration.
Phosphor bronze contacts plated with tin over nickel for enhanced durability and conductivity.
Surface mount with brass solder tabs for robust PCB attachment.
Rated for 50V AC operation and 400 mA current for various signal and power applications.
Locking mechanism ensures mechanical stability during vibrations and repeated insertions.

Product Description

The Wurth Elektronik WR-FPC 0.5 mm pitch 40 way horizontal female FPC connector, model 687140183622, is designed for high-density PCB arrangements in industrial, commercial, and consumer electronics. This connector incorporates a space-saving low profile of just 1.2 mm, enabling integration into compact devices while maintaining reliable connectivity.

At the core of this product is its zero insertion force (ZIF) locking actuator, which employs a rotary flip lock mechanism. With the actuator fully opened, the flexible PCB (FPC) can be easily inserted, after which the actuator is rotated back to engage the lock. This system ensures strong mechanical and electrical retention, minimizing wear and damage during repeated insertions and extractions.

The connector offers a top contact arrangement, providing superior electrical contact with flexible circuits. Its robust phosphor bronze contact pins, plated with tin over nickel, deliver excellent conductivity and corrosion resistance. Surface mounting is facilitated by brass solder tabs, reliably securing the connector onto the PCB.

Rated to operate at 50V AC and support up to 400 mA current, the connector is ideal for signal and low-power supply applications. Its locking mechanism and horizontal orientation make it suitable for products exposed to vibration or physical stress, such as industrial automation panels, displays, touch screens, tablets, and mobile communication devices.

Withstanding temperatures from -25 to 85°C, the connector can be deployed in harsh environments across manufacturing, laboratory, medical equipment, and consumer devices. Its single row, 40-way female configuration supports a wide range of electronic circuits and custom harnesses.

In summary, the WR-FPC 687140183622 delivers reliable, repeatable connectivity for high-density PCB layouts in applications requiring a compact, sturdy, and easy-to-use FPC interface. It complies with industry standards for quality and is suitable for use in professional installations, electronic manufacturing, and laboratory systems.

Explore more PCB Connectors and electronic interface solutions in the Wurth Elektronik category on EnvMart.
