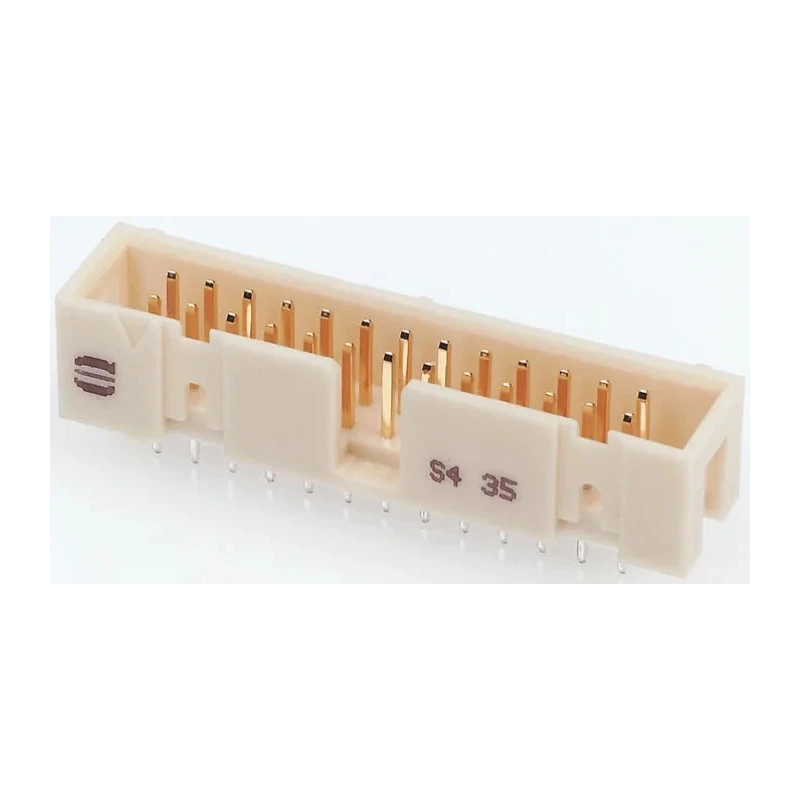

HARTING SEK 19 Series Straight Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09195146324
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The header uses gold-plated copper alloy contacts for reliable conductivity.
- The housing is made from durable Polycyclohexylenedimethylene Terephthalate material.
- Rated for 1 ampere current and 1000 volts operating voltage capacity.
- Features solder termination type for robust through-hole PCB mounting.
- Operates efficiently within temperatures from -55°C to 125°C.
- The 2-row design and 2.54 mm row pitch align to standard PCB layouts.
- Complies with IDC, BT224, DIN41651, and DIN EN 60603-13 standards.
- Includes UL and CSA approvals ensuring safety and quality.
Product Description
HARTING 09195146324 PCB Header is a high-quality connector designed for electronic applications requiring robust and durable wire-to-board connections. Featuring 14 gold-plated copper alloy male contacts arranged in 2 rows with a 2.54 mm pitch, this straight through-hole header ensures excellent electrical conductivity and mechanical reliability.
The connector housing is constructed from Polycyclohexylenedimethylene Terephthalate, offering excellent thermal and mechanical resistance suitable for industrial environments. It supports a continuous current rating of 1A and a voltage rating up to 1000V, making it fit for a wide range of electronic applications including industrial automation, telecommunications, instrumentation, and PCB assembly.
Its shrouded design enhances mechanical stability while providing protection against accidental contact. The solder termination ensures secure attachment to PCBs with through-hole mount technology. The connector operates reliably in temperature ranges from -55°C to 125°C, supporting performance across varying environmental conditions.
Designed to meet international standards such as IDC, BT224, DIN41651, and DIN EN 60603-13, and certified with UL (E102079) and CSA (98267) approvals, this HARTING PCB header guarantees quality and compliance for safety-critical applications.
This product is ideal for use in industrial, manufacturing, automation systems, and electronic assembly contexts requiring dependable electrical interconnections. The header uses gold-plated copper alloy contacts for reliable conductivity.
The housing is made from durable Polycyclohexylenedimethylene Terephthalate material. Rated for 1 ampere current and 1000 volts operating voltage capacity. Features solder termination type for robust through-hole PCB mounting.
Operates efficiently within temperatures from -55°C to 125°C. The 2-row design and 2.54 mm row pitch align to standard PCB layouts. Complies with IDC, BT224, DIN41651, and DIN EN 60603-13 standards. Includes UL and CSA approvals ensuring safety and quality.
Explore more reliable electronic component solutions in the PCB Connectors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB header is 1000 volts.
This model is rated for a continuous current of 1 ampere.
It features a solder termination type, which is suitable for robust through-hole PCB mounting.
The header has a pitch of 2.54 mm and consists of 2 rows.
The housing is made from Polycyclohexylenedimethylene Terephthalate, and the contacts are made from gold-plated copper alloy.
It operates efficiently within a temperature range of -55°C to 125°C.
It complies with IDC, BT224, DIN41651, and DIN EN 60603-13 standards.
This model features 14 male contacts.
This connector is shrouded, which enhances its mechanical stability and provides protection against accidental contact.
The country of origin for this product is India.
It is suitable for applications in industrial automation, telecommunications, instrumentation, and PCB assembly.
The connector system type for this model is wire-to-board.
