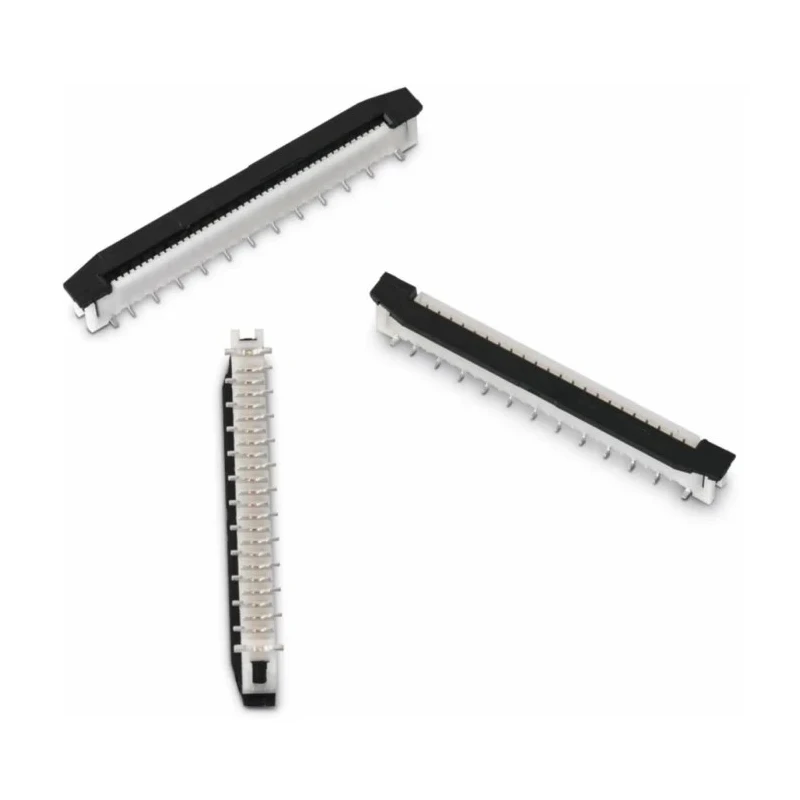

Wurth Elektronik WR-FPC 1 mm Pitch 8 Way Vertical Female FPC Connector, ZIF, Surface Mount 125V 1A 686108183822

The Wurth Elektronik WR-FPC 686108183822 is a high-performance vertical female FPC (Flexible Printed Circuit) connector engineered for compact and high-density electronic applications. This connector features a single row of 8 contacts, spaced with a precise 1 mm pitch, making it an ideal solution for miniaturized devices such as displays, touch panels, and consumer electronics.

Equipped with Zero Insertion Force (ZIF) functionality, this connector simplifies the process of Flexible Printed Circuit insertion and removal. Its slide lock actuator further enhances retention, providing a robust and secure electrical connection even in environments subject to vibration or movement. The locking mechanism ensures reliable engagement and minimizes the risk of accidental disconnection.

The WR-FPC connector utilizes phosphor bronze contacts plated with tin over nickel, delivering excellent electrical conductivity and resistance to corrosion. The housing is fabricated from high-grade polyamide, ensuring mechanical strength and thermal stability across a wide operating temperature range from minus 25°C to 85°C.

This connector is surface mountable, streamlining PCB assembly processes and supporting advanced automation. Rated for up to 125V AC and 1A current, it is well suited for both power and signal transmission within sophisticated electronic devices.

Typical application scenarios include consumer electronics (personal computers, tablets, mobile phones, cameras), industrial monitoring, medical equipment, and business devices requiring reliable high-density PCB interconnections. The compact WR-FPC design facilitates efficient circuit layouts in miniaturized systems.

Vertical female FPC connector, ideal for space-saving PCB layouts in industrial and commercial products. Zero Insertion Force mechanism allows effortless FPC insertion and removal while protecting contacts from damage. Slide lock actuator with high retention force for secure electrical and mechanical connection.

Phosphor bronze contacts with tin over nickel plating provide durable, low-resistance contact surfaces. Single row, 8-way configuration at 1 mm pitch supports flexible design options. Surface mount termination aligns with modern PCB manufacturing standards and automation.

Rated for 125V AC operation and 1A current handling; suitable for displays, sensors, and embedded modules. Wide operating temperature range ensures reliability in varied environmental conditions. Explore more PCB connector solutions and browse other Wurth Elektronik products and categories on EnvMart for your electronic interconnect needs.
