Wurth Elektronik WR-FPC 8 Way Horizontal Female FPC Connector, 1 mm Pitch, Surface Mount, ZIF Flip-Lock, 1A 686108148922

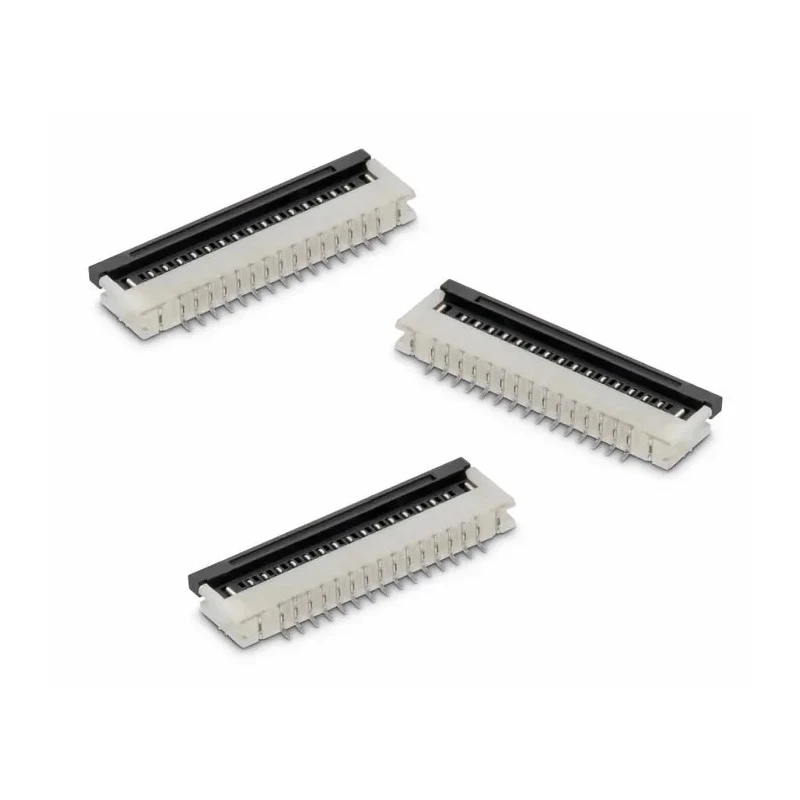

The Wurth Elektronik WR-FPC 8 Way PCB Connector, model 686108148922, is a high-precision surface mount connector tailored for flexible printed circuit (FPC) interconnections. This connector provides an 8-way horizontal female configuration with a fine 1 mm pitch, addressing the needs of compact, space-constrained electronic applications. The low-profile design incorporates a bottom contact orientation and a hinged flip-lock actuator that provides Zero Insertion Force (ZIF) for safe, simple cable engagement, ensuring both integrity and security in each connection.

This model is constructed with quality phosphor bronze contact material, plated with tin over nickel, ensuring superior electrical conductivity and resistance to wear. The polyamide housing delivers robust mechanical strength combined with effective insulation properties, supporting reliable performance even in demanding environments within a working temperature range from -40°C up to 105°C.

The solder retention feature helps secure the connector on the PCB during the reflow process, enhancing assembly efficiency on large-scale production lines. The horizontal orientation and bottom contacts are optimized for high-density PCBs, reducing the overall component footprint and making this connector ideal for applications such as small displays and keyboard modules where every millimeter counts.

Supported up to 1A of current and 100V AC voltage, this connector is suitable for a wide range of signal and low-power transmission tasks in consumer electronics, industrial controls, laboratory instruments, and compact embedded systems. The ZIF flip-lock actuator ensures a secure mechanical connection and minimizes physical stress on the delicate FPC, protecting circuit integrity during repeated mating cycles.

Applications span industrial and laboratory instrumentation, consumer electronics, automation controllers, and compact PCB assemblies where reliability, density, and ease of maintenance are crucial. The WR-FPC series from Wurth Elektronik is notably engineered to meet the evolving requirements of modern miniaturized electronics.

The flip-lock mechanism offers enhanced retention and operational convenience, reducing assembly errors and speeding up production line handling. Surface mount compatibility allows for automated placement and reflow processes, facilitating high-volume manufacturing typical in electronics industries.

This part is optimized for environments requiring robust, durable, and secure electrical connections, from industrial automation panels to laboratory data acquisition modules. For more quality PCB connector options and to explore other Wurth Elektronik WR-FPC series or FPC interconnect solutions, browse EnvMart's extensive connector catalog.
