Bulgin C14 Straight Panel Mount IEC Connector Male, 250V, 10A, Fuse Size 5x20 mm PF0002/63

Free Delivery in India | Lowest Global Shipping Charges

Bulgin C14 Straight Panel Mount IEC Connector Male, 250V, 10A, Fuse Size 5x20 mm PF0002/63

Name: Bulgin C14 Straight Panel Mount IEC Connector Male, 250V, 10A, Fuse Size 5x20 mm PF0002/63
Brand: Bulgin
SKU: 163005
Price: 5.96 USD
Availability: InStock



Category IEC Connector Brand Bulgin Condition New

Specifications

Country of Origin	Tunisia
Voltage	250V
Brand	Bulgin
Orientation	Straight
Current	10A
Model	PF0002/63
Mount Type	Panel Mount
Assembly	Longitudinal flange (flange fixed with two screws)
Series	PF
Termination Type	Quick Connect
Standards/Approvals	CSA certified, IMQ, SEMKO, UL recognised, VDE
Contact Gender	Male
Connector Gender	Male
Fuse Size	5 x 20 mm
Number of Fuses	1
IEC Connector Type	C14
Bulgin C16 Panel Mount IEC Connector Male, 10A, 250 VBrand	Bulgin

Key Features

This IEC connector is designed for panel mounting with a straight orientation.
Features a male connector and quick connect termination for ease of installation.
Includes one fuse carrier that is electrically separated and interlocked for safety.

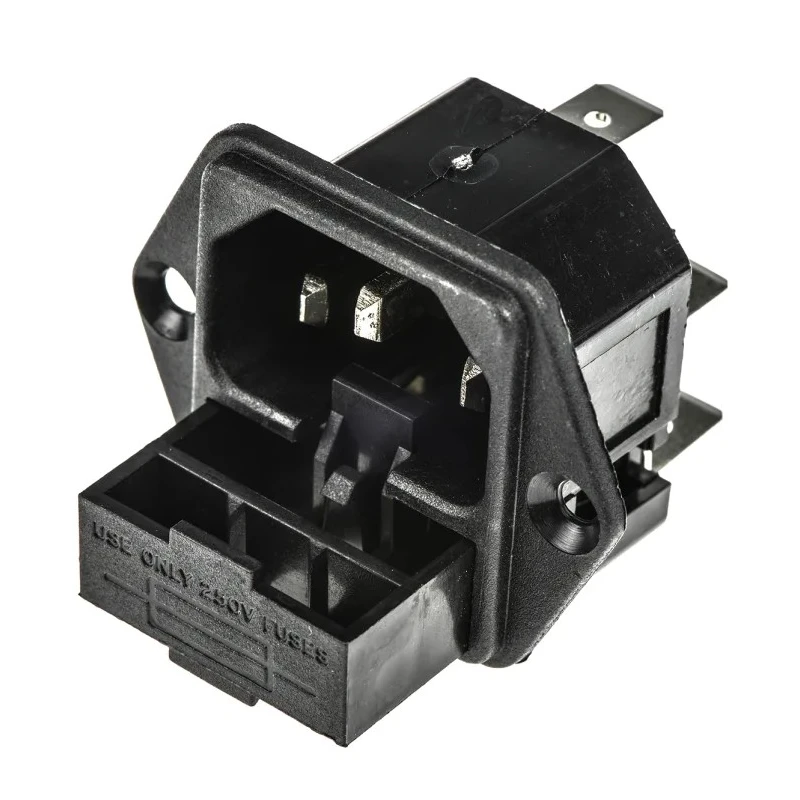

Accepts 5 x 20 mm fuses and can store one spare fuse internally.
Operates reliably within a temperature range of -40°C to 70°C ensuring durability in various environments.
Complies with CSA, UL, VDE, IMQ, and SEMKO certifications guaranteeing high quality and safety standards.
Designed with 6.3 mm blade receptacles and low contact resistance below 10 milliohms.
Ideal for applications in domestic and electrical appliances, instrumentation amplifiers, and computer hard drives.

Product Description

Bulgin PF0002/63 C14 Straight Panel Mount IEC Connector Male is a high-quality electrical connector designed for safe and reliable power connections up to 250V and 10A. This connector incorporates a fuse holder compatible with standard 5 x 20 mm fuses, providing additional circuit protection. The fuse carrier is designed to be interlocked and cannot be removed, enhancing user safety. The connector features quick connect termination and a male contact gender with a straight orientation suitable for panel mounting.

The fuse inlet supports 6.3 mm blade receptacles and includes a compartment for storing one spare fuse, ensuring convenient maintenance. The connector is constructed with a robust longitudinal flange fixed using two screws for a secure mounting on panels.

With a temperature operating range from -40°C to 70°C, the PF0002/63 model is suitable for a variety of industrial and commercial environments. It offers very low contact resistance (below 10 milliohms) and high insulation resistance (greater than 10⁴ MΩ), ensuring excellent electrical performance.

This IEC connector complies with stringent international safety and quality certifications including CSA certification, UL recognition, VDE, IMQ, and SEMKO approvals. It is widely used in domestic appliances, electrical appliances, instrumentation amplifiers, and computer hardware applications requiring fused power connectors.

This connector accepts 5 x 20 mm fuses, providing essential overcurrent protection. Quick connect termination facilitates easy and fast wiring installation. Includes storage for one spare fuse enhancing operational readiness.

Designed with a secure longitudinal flange mount using two screws for stable installation. Operating temperature range from -40°C to 70°C supports diverse environments. UL, CSA, VDE, IMQ, and SEMKO certifications ensure high safety and quality standards.

Choose Bulgin for dependable IEC power connectors engineered for demanding industrial and commercial electrical installations. Explore similar Bulgin products in the IEC Connector category on EnvMart for your power connection needs.
