Hammond 1552 Series Black ABS Handheld Enclosure, IP54, 70 mm x 50 mm x 30 mm 1552D1BK

Free Delivery in India | Lowest Global Shipping Charges

Hammond 1552 Series Black ABS Handheld Enclosure, IP54, 70 mm x 50 mm x 30 mm 1552D1BK

Name: Hammond 1552 Series Black ABS Handheld Enclosure, IP54, 70 mm x 50 mm x 30 mm 1552D1BK
Brand: Hammond
SKU: 163458
Price: 11.41 USD
Availability: InStock



Category Hand Held Enclosures Brand Hammond Condition New

Specifications

Country of Origin	Canada
Brand	Hammond
Colour	Black
Body Material	ABS
Model	1552D1BK
IP Rating	IP54
Gross Weight	36g
Series	1552
External Width	50mm
External Height	30mm
Standards/Approvals	RoHS
Internal Mount Type	PCB Mounting Boss
External Length	70mm
Material Flamability Rating	UL94-V0

Key Features

Constructed from flame-retardant black ABS material that self-extinguishes in less than 10 seconds.
IP54 rating ensures protection against dust ingress and water splashes from all directions.
Includes keypad recess for convenient membrane keypad or display integration.
Moulded PCB mounting bosses for easy installation of circuit boards up to 49 mm in length.
Comes with removable end panels for straightforward machining and installation.
Lightweight design at just 36 grams for comfortable handling and installation.
Includes box, lid, two panels, and four cover screws for quick assembly.
Ideal for measurement, instrumentation, environmental monitoring, and industrial control applications.

Product Description

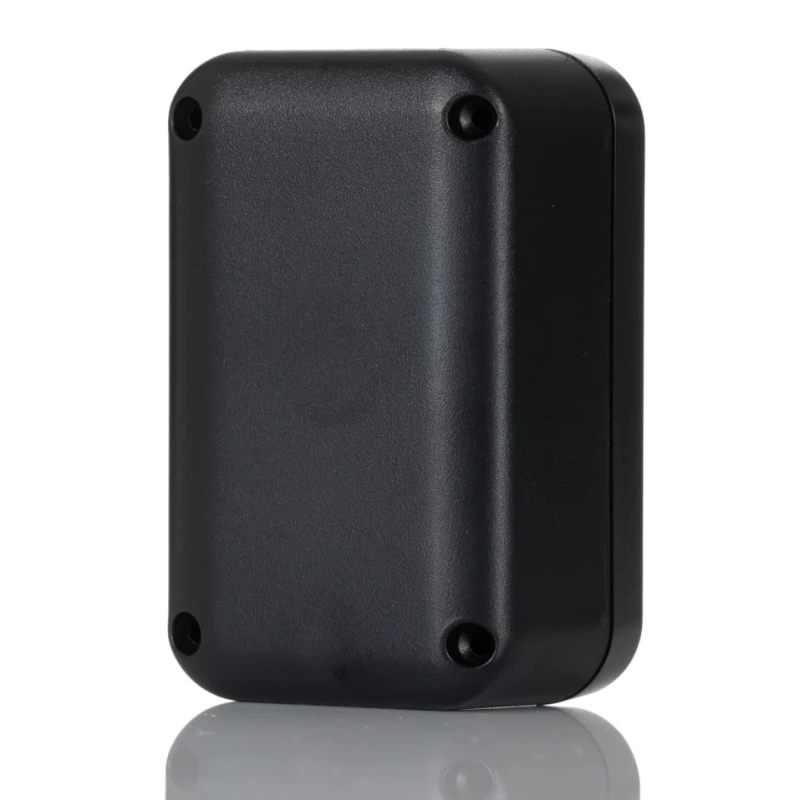

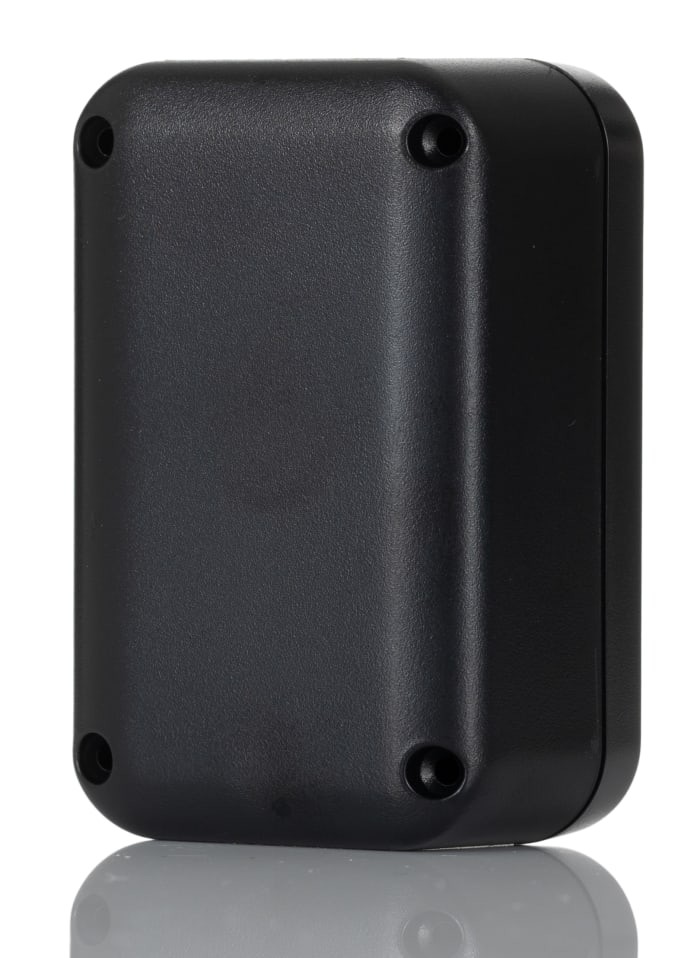

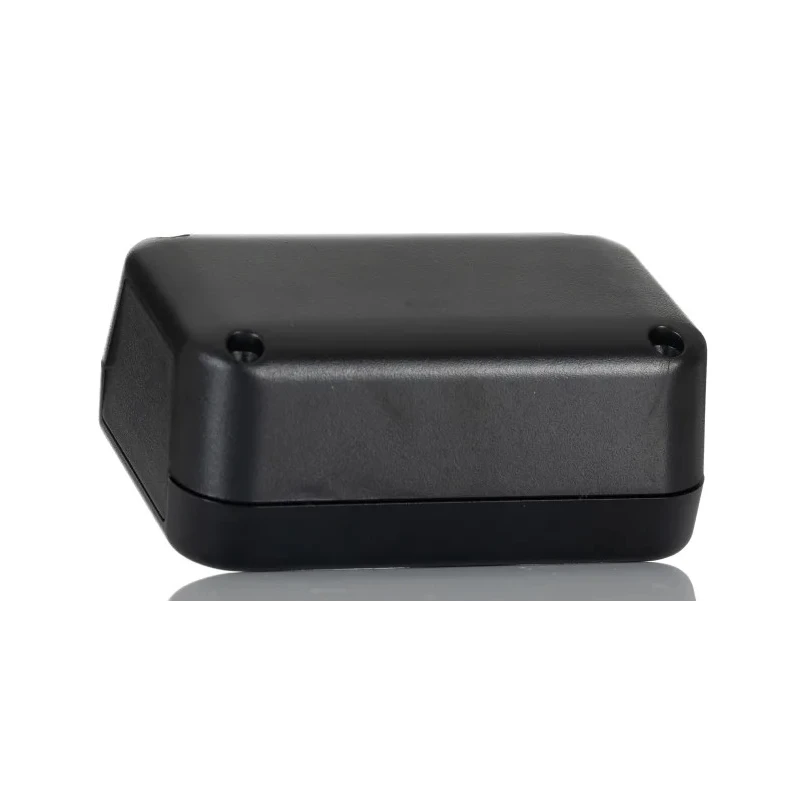

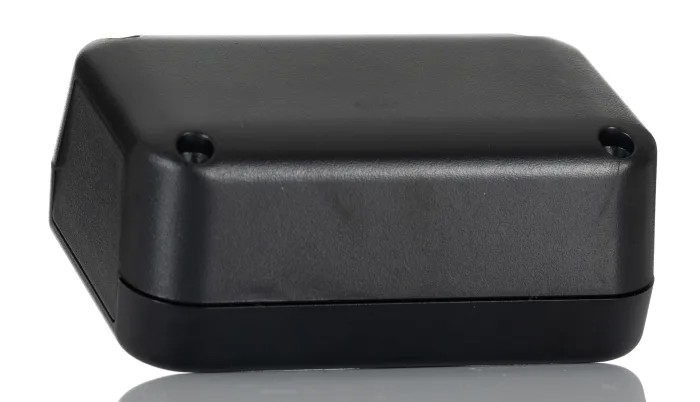

Hammond 1552D1BK handheld enclosure is designed to protect compact electronic devices and small printed circuit boards within industrial and instrumentation applications. Measuring 70 mm in length, 50 mm in width, and 30 mm in height, this enclosure features a sturdy black ABS construction that is flame-retardant and self-extinguishes rapidly, ensuring safety in demanding environments.

Its IP54 ingress protection rating provides partial protection against dust and resistance to water splashes from any direction, making it suitable for diverse industrial environments including environmental monitoring and industrial controllers.

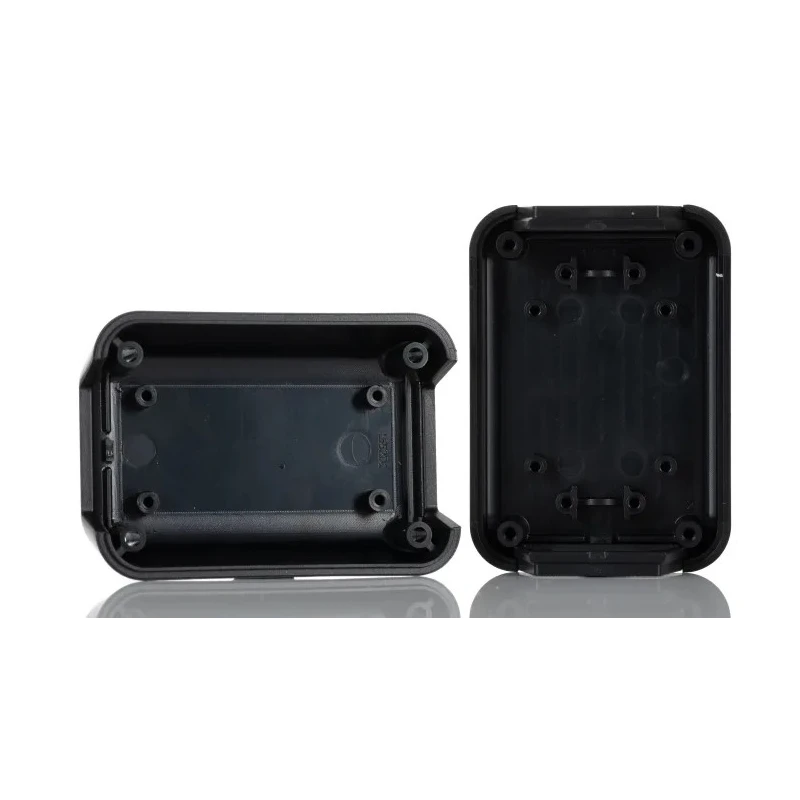

The enclosure design incorporates moulded-in PCB mounting bosses in both the lid and base, supporting PCBs with lengths up to 49 mm for secure mounting. Additionally, a recessed top cover allows for integration of membrane displays or keypads, enhancing device usability.

Removable end panels allow easy machining for custom cable entry or connector installation. The package includes the box, lid, two removable panels, and four cover screws facilitating quick and reliable assembly.

Weighing only 36 grams, the enclosure is lightweight and easy to handle or mount using compatible holders. It is fully RoHS compliant and meets UL94-V0 flammability standards, underscoring its suitability for industrial and laboratory use.

Constructed from flame-retardant black ABS material that self-extinguishes in less than 10 seconds. IP54 rating offers dust and splash water protection for robust environmental resilience. Includes keypad recess for seamless integration of control interfaces.

Moulded PCB mounting bosses support installations of PCBs up to 49 mm long. Removable side panels enable customisation via straightforward machining. Lightweight at 36 g for ease of use in handheld or mounted configurations.

Complete with box, lid, two panels, and four cover screws in the package. Manufactured in Canada with RoHS compliance and UL94-V0 flame rating. Ideal for measurement, instrumentation, environmental monitoring, and industrial controllers.
