JST ZH Series Top Entry Surface PCB Header 2 Contacts 1.5 mm Pitch 1 Row Shrouded B2B-ZR-SM4 TF (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

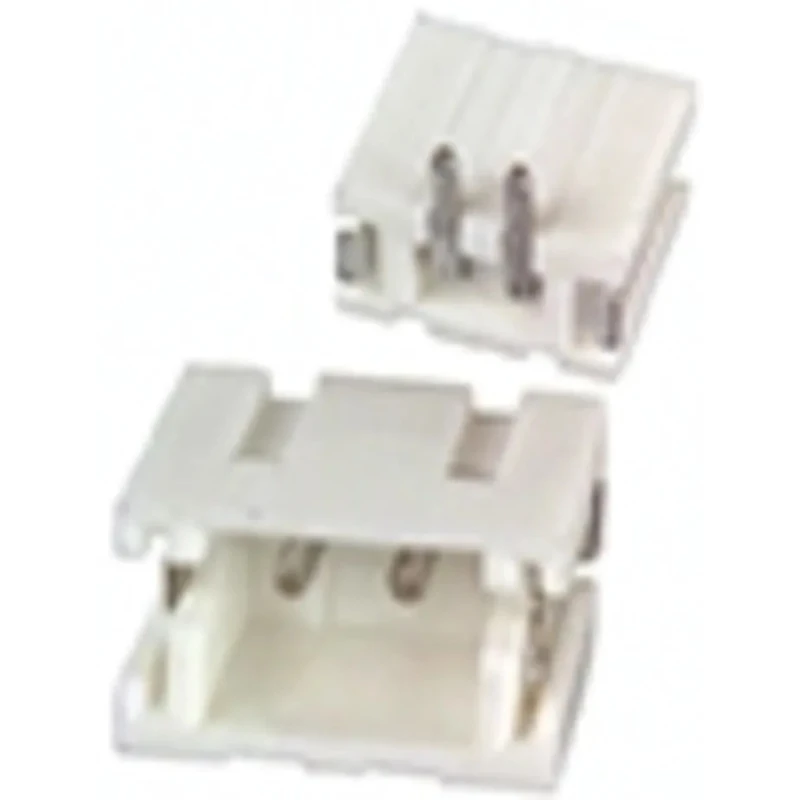

JST ZH Series Top Entry Surface PCB Header 2 Contacts 1.5 mm Pitch 1 Row Shrouded B2B-ZR-SM4 TF (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Top Entry
Current	1A
Model	B2B-ZR-SM4 TF (LF) (SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	lances
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact 1.5 mm pitch wire-to-board connector for space-saving applications.
Features 2 brass contacts with tin plating ensuring reliable conductivity.
Shrouded housing made of polyamide provides protection and contact retention lances enable visual confirmation of secure insertion.
Operates reliably between -25°C and 85°C temperature range.
Top entry orientation and surface mount type for flexible PCB assembly.
Supports a current of 1A and voltage rating up to 50V.
Compatible with JST ZR insulation displacement connectors.
Termination type is solder, facilitating strong PCB connection.

Product Description

The JST B2B-ZR-SM4 TF (LF) (SN) is a ZH Series Top Entry Surface PCB Header designed specifically for the compact and reliable wire-to-board connection needs in electronic applications.

With a small 1.5 mm pitch and 2 contacts arranged in a single row, this shrouded connector offers a low profile and secure contact retention featuring housing lances that allow visual confirmation of firm lock-in.

Its polyamide housing material contributes to durability and high insulation performance, while the brass contact material with tin plating ensures excellent conductivity and corrosion resistance.

Specifically built for Surface Mount Technology (SMT), this header supports solder termination for effective PCB mounting. Operating temperature range from -25°C to 85°C makes it suitable for various industrial and commercial environments.

The connector supports 1A current and a voltage rating of 50V, making it ideal for low power signal applications. Compact and low profile 1.5 mm pitch design for space-critical assemblies. Polyamide shrouded housing protects contacts and aids in preventing misalignment.

Visual confirmation lances ensure proper contact engagement. Durable brass contacts plated with tin promote stable electrical connections. Top entry orientation suits diverse PCB layouts. Surface mount type for ease of automated assembly processes.

Suitable for electronic components, power connectors, and signal interfaces. Compatible with JST ZR series insulation displacement connectors for versatile applications.

This JST PCB Header is widely used in industrial electronics, consumer devices, communication equipment, and other applications requiring reliable wire-to-board connections with minimal footprint.

For engineers and designers, this product provides an efficient, durable, and standardized connector solution, contributing to enhanced device reliability and manufacturing consistency.

Explore more high-quality PCB connectors and components at EnvMart for your next design and manufacturing project.
