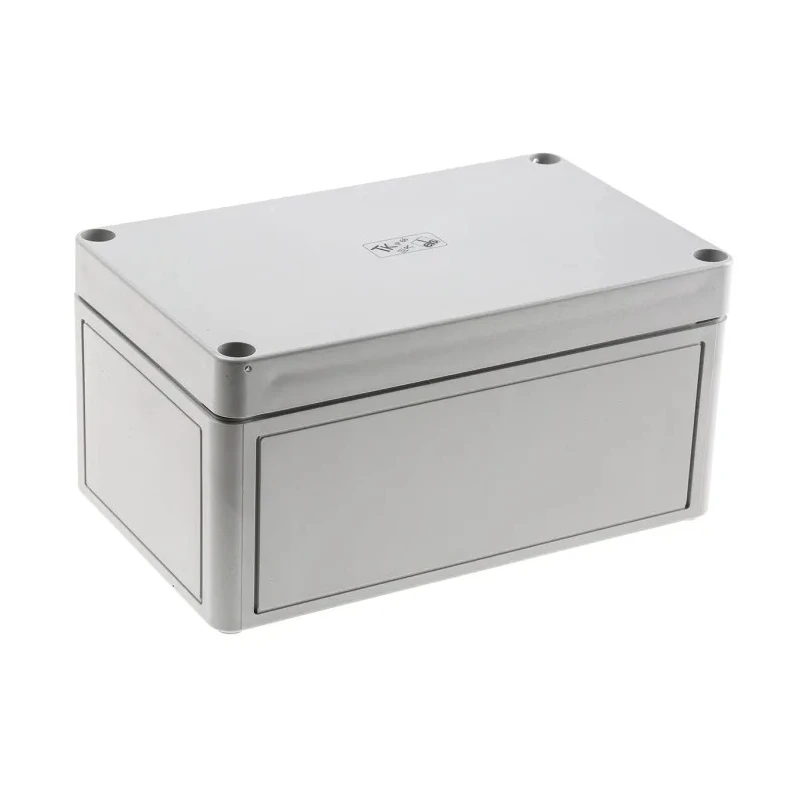

Spelsberg TK PC Series Grey Grey Lid Polycarbonate Enclosure IP66 IK08 90 mm x 180 mm x 110 mm 12040601

Free Delivery in India | Lowest Global Shipping Charges

Spelsberg TK PC Series Grey Grey Lid Polycarbonate Enclosure IP66 IK08 90 mm x 180 mm x 110 mm 12040601

Name: Spelsberg TK PC Series Grey Grey Lid Polycarbonate Enclosure IP66 IK08 90 mm x 180 mm x 110 mm 12040601
Brand: Spelsberg
SKU: 137424
Price: 53.75 USD
Availability: InStock



Category General Purpose Enclosures Brand Spelsberg Condition New

Specifications

Country of Origin	Germany
Brand	Spelsberg
Body Material	Polycarbonate
Model	12040601
IP Rating	IP66
Series	TK PC
External Width	110mm
External Height	90mm
Shielding	Unshielded
Standards/Approvals	RoHS Compliant
Flammability Rating	VDE 0471, UL94, 960 °C / V2
External Length	180mm
Lid Colour	Grey
IK Rating	IK08
IP66 ENC. 180X110X90 ULBrand	Gunther Spelsberg

Key Features

Constructed from robust polycarbonate material ensuring durability.
External dimensions are 90 mm height, 180 mm length, and 110 mm width.
Provides an ingress protection rating of IP66 suitable for dust and powerful water jets.
Impact resistant to IK08 standard for mechanical protection.
The enclosure features a grey polycarbonate lid with integrated polyurethane cover gasket.
Suitable for wall and surface mounting with included sealing plugs and mounting holes.
Operates reliably within a temperature range of -35°C to +80°C.
Flammability rated VDE 0471, UL94, 960 °C / V2 ensuring fire safety.

Product Description

Spelsberg 12040601 TK PC Series Grey Lid Polycarbonate Enclosure is a high-quality enclosure designed for industrial and electrical applications requiring robust protection. Made from durable grey polycarbonate, this enclosure offers reliable protection against dust, moisture, and mechanical impact in line with IP66 and IK08 standards.

The enclosure measures 90 mm in height, 180 mm in external length, and 110 mm in width, providing ample space for housing various electrical, electronic, and pneumatic components. Its unshielded design ensures versatility for a wide range of industrial use cases.

Designed for ease of installation, it allows wall mounting through holes below lid fixing screws and surface mounting with knockouts in the base. The lid is secured with mounting screws and includes an integrated polyurethane gasket to maintain the IP66 ingress protection rating.

With a flammability rating of VDE 0471 and UL94 at 960 °C / V2, this enclosure meets strict safety standards required in commercial and industrial environments. It operates efficiently in temperature ranges from -35°C to +80°C.

Constructed from polycarbonate body for durability. IP66 ingress protection according to EN 60529 / DIN VDE 0470-1. IK08 impact resistance for excellent mechanical protection. Grey polycarbonate lid with secure mounting screws.

Wall and surface mountable with sealing plugs supplied. Halogen-free materials ensuring environmental safety. Suitable for electrical, laboratory, industrial, and HVAC applications. Contents supplied: Base with grey lid and lid mounting screws.

This Spelsberg enclosure is ideal for general purpose industrial electrical housing needs, readily protecting sensitive components against environmental and mechanical hazards. Explore more electrical enclosures and related solutions at EnvMart.

Explore more products in our General Purpose Enclosures category.
