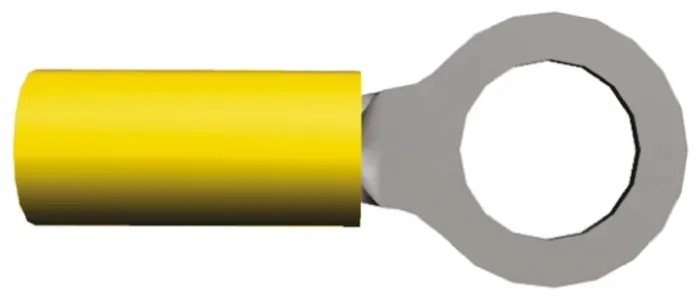

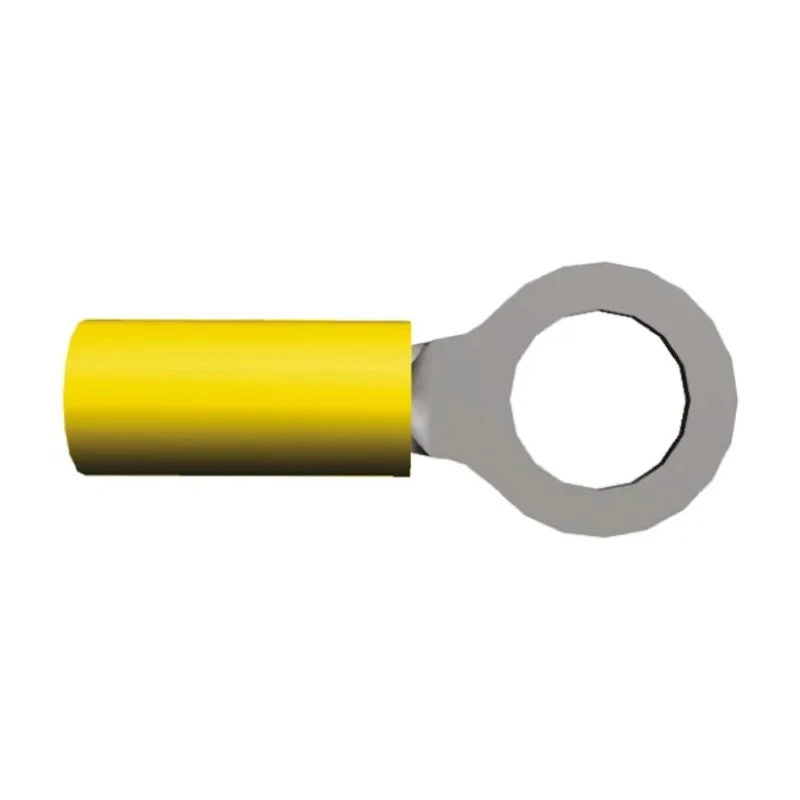

TE Connectivity PIDG Insulated Ring Terminal, M8 Stud Size, 12 AWG to 10 AWG Wire Size, Nylon Insulation, Yellow 160298

TE Connectivity 160298 PIDG Insulated Ring Terminal is designed for high-reliability wire crimping applications supporting M8 stud size and wire gauges from 12 AWG to 10 AWG. It features a high conductivity copper body complemented by a tin-plated surface for enhanced corrosion resistance and conductivity.

This ring terminal uses a copper sleeve inside the barrel to improve wire insulation support and prevent fraying of stranded wires. The wire barrel's serrated design ensures maximum contact and tensile strength after crimping, promoting secure electrical connections even under vibration or stress.

Enclosed in a yellow nylon insulation sleeve, it facilitates easy wire size identification and provides resistance against abrasion and environmental factors. The funnel-shaped wire entry enhances speed and accuracy of wire insertion during high-volume production.

Operating reliably up to 170 degrees Celsius, these PIDG ring terminals meet stringent industry requirements including RoHS compliance, making them suitable for industrial, commercial, aerospace, instrumentation, panel boxes, power supplies, and transportation wiring tasks.

High conductivity copper body. Copper sleeve for enhanced wire insulation and support. Serrated barrel for secure crimp connection. Yellow nylon insulation for wire identification. Funnel entry for fast wire insertion. Meets RoHS environmental standards.

Supports wire sizes 12 to 10 AWG (2.7 to 6.6 mm²). Maximum operating temperature 170°C. Overall length 30.2 mm and thickness 0.79 mm. Manufactured in the United States.

These ring terminals provide dependable performance in electrical control systems, aerospace wiring, industrial instrumentation, and automotive applications. They are engineered to deliver consistent, high-quality crimps for both manual and high-speed production use.
