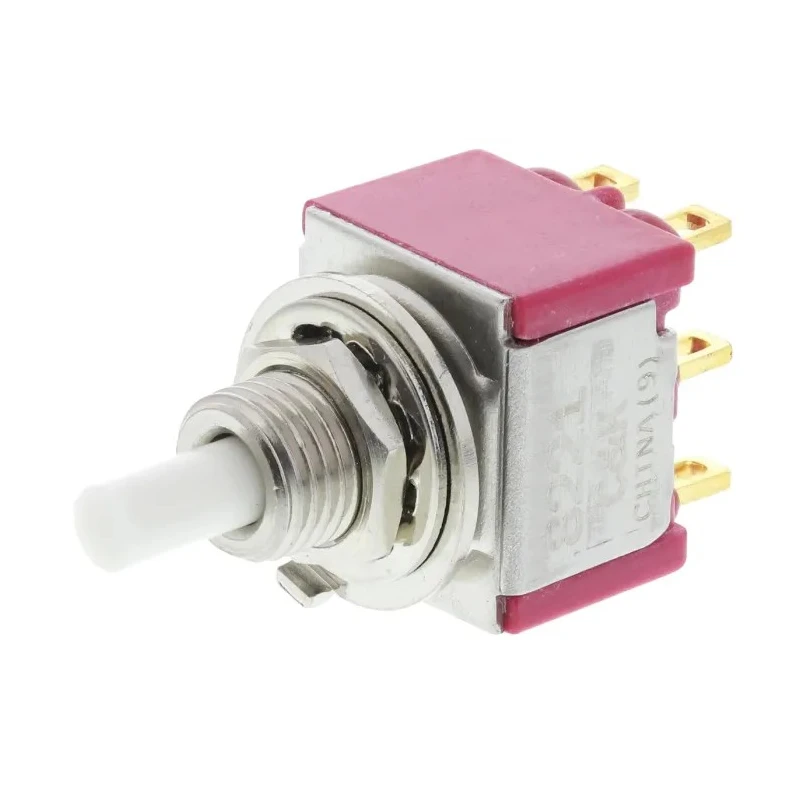

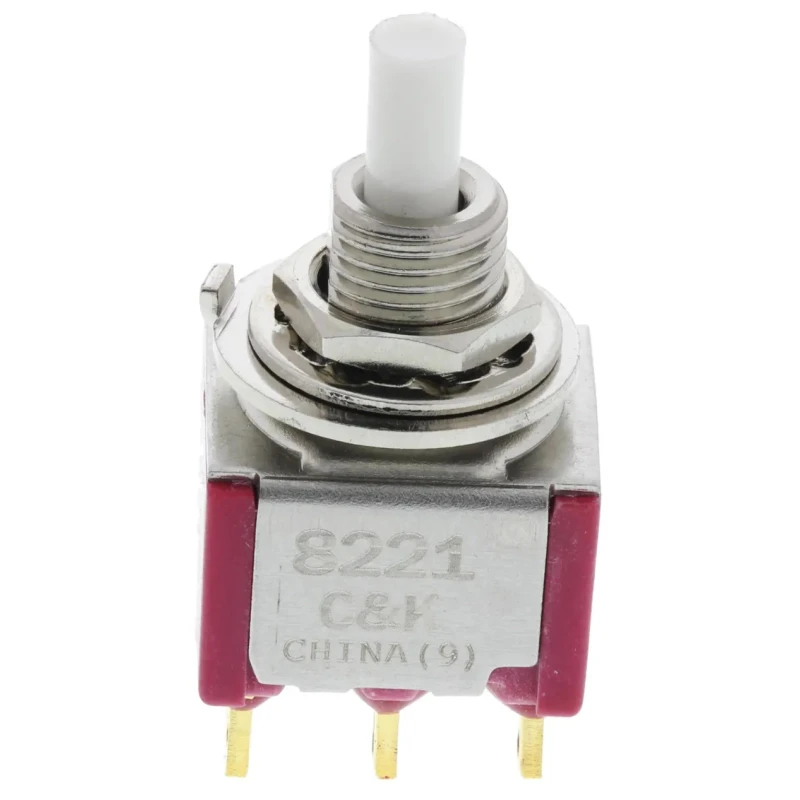

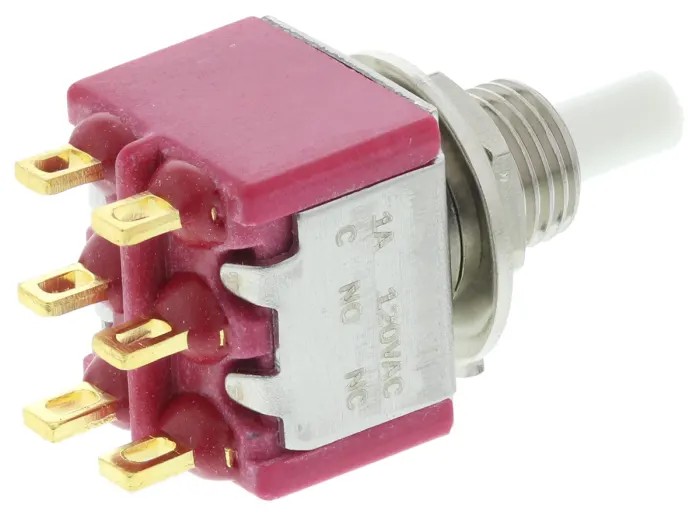

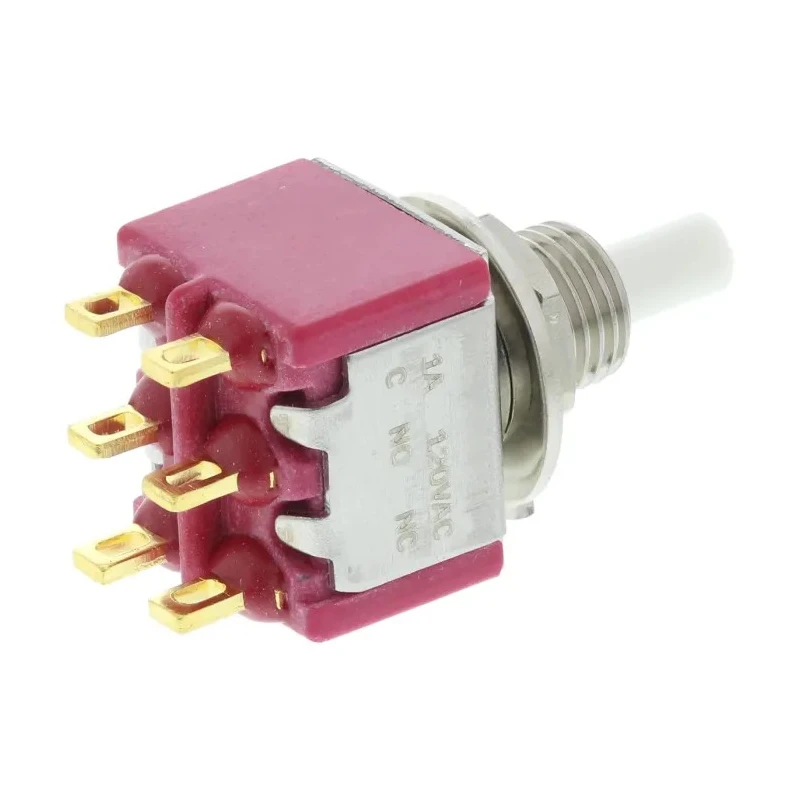

C & K 8020 Series Push Button Switch Momentary Panel Mount DPDT 11.4 x 12.7 mm Cutout with Green Red Yellow LED 8221SHZGE
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | C & K |
| Model | 8221SHZGE |
| Mount Type | Panel |
| Series | 8020 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 11.4 x 12.7 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, CSA, UR |
| LED Colour | Green, Red, Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Style | Plunger |
| Switch Contact Current | 1A |
| Accessories available include | Caps, Frames, Washers and Mounting Nuts |
| C & K 8020 Series Push Button Switch, Momentary, Panel, 6.4 mm Cutout, DPDTBrand | C & K |
Key Features
- This switch features a black plunger actuator with a positive tactile feel.
- It operates as a momentary snap-action push button with DPDT contact configuration.
- Illuminated with green, red, and yellow LEDs for versatile signaling.
- Panel cutout size is 11.4 x 12.7 mm for standard panel mounting.
- Operates within temperature range of -30°C to 75°C reliably.
- Switch contact current rating is 1 Amp AC for typical industrial loads.
- Compatible with solder terminal type and epoxy terminal seal.
- Complies with RoHS, CSA, and UR standards ensuring safety.
Product Description
C & K 8221SHZGE push button switch is part of the 8020 series featuring a momentary snap-action DPDT switch designed for panel mounting with an 11.4 x 12.7 mm cutout. It includes green, red, and yellow LED indicators and a black plunger actuator providing a positive tactile feel.
This switch is ideal for industrial, instrumentation, telecommunications equipment, and computer peripheral applications where momentary contact switching is required.
Constructed to operate reliably within a temperature range of -30°C to 75°C, the switch complies with RoHS, CSA, and UR standards ensuring quality, safety, and environmental compliance.
The solder terminal type and epoxy terminal seal make it compatible with bottom wash cleaning processes. Accessories like caps, frames, washers, and mounting nuts enable flexible installation options.
Overall, C & K's 8221SHZGE model offers robust performance for electrical control and signaling in commercial and industrial settings. This switch features a black plunger actuator with a positive tactile feel. Double Pole Double Throw (DPDT) contact configuration with momentary switch operation.
Illuminated with green, red, and yellow LEDs for status indication. Panel cutout size is precisely 11.4 x 12.7 mm suitable for standard panel mounting. Operates between minimum -30°C and maximum 75°C temperatures with high reliability.
Switch contact current rated at 1 Amp AC for moderate electrical loads. Compatible with solder terminal type and epoxy terminal seal. Compliant with RoHS, CSA, and UR certifications. Includes accessory options such as caps, frames, washers, and mounting nuts.
Explore more push button switches and related components in the Electronics & Electricals category at EnvMart for your industrial and automation applications.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile electrical control.
The panel cutout size required for installation is 11.4 x 12.7 mm, suitable for standard panel mounting.
It operates reliably within a temperature range of -30°C to 75°C, making it suitable for various environments.
The switch contact current rating is 1 Amp AC, which is appropriate for typical industrial loads.
This model is compatible with solder terminal types and features an epoxy terminal seal for added protection.
The switch is illuminated with green, red, and yellow LEDs, providing versatile signaling options.
Accessories for this model include caps, frames, washers, and mounting nuts, allowing for flexible installation options.
It complies with RoHS, CSA, and UR standards, ensuring safety and environmental compliance.
The actuator style is a black plunger, designed to provide a positive tactile feel during operation.
This model is suitable for industrial, instrumentation, telecommunications equipment, and computer peripheral applications.
This switch is part of the C & K 8020 series, known for its momentary snap-action functionality.
The country of origin for this model is Vietnam, indicating its manufacturing location.
