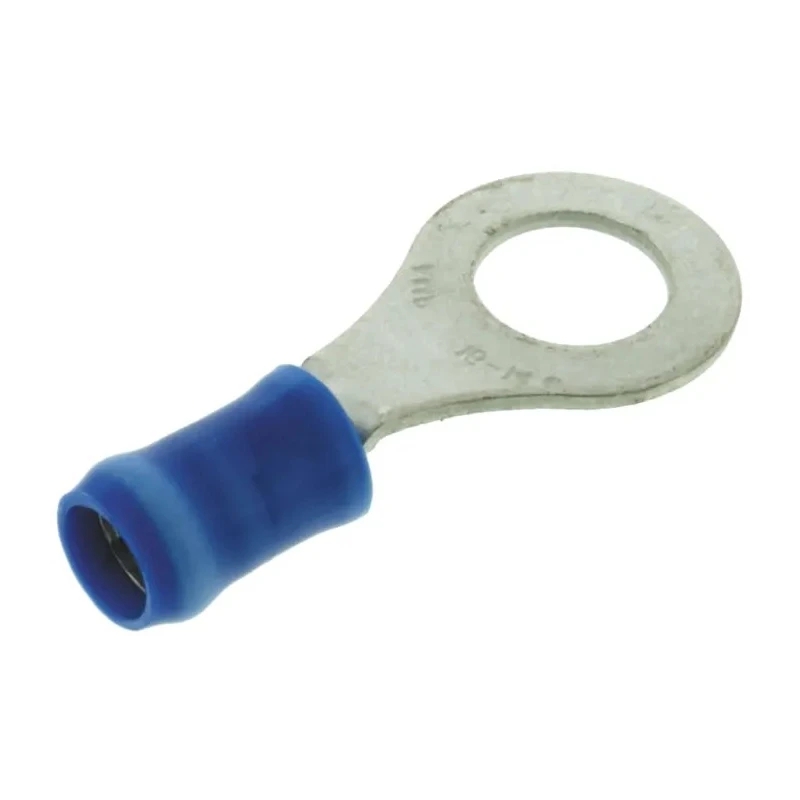

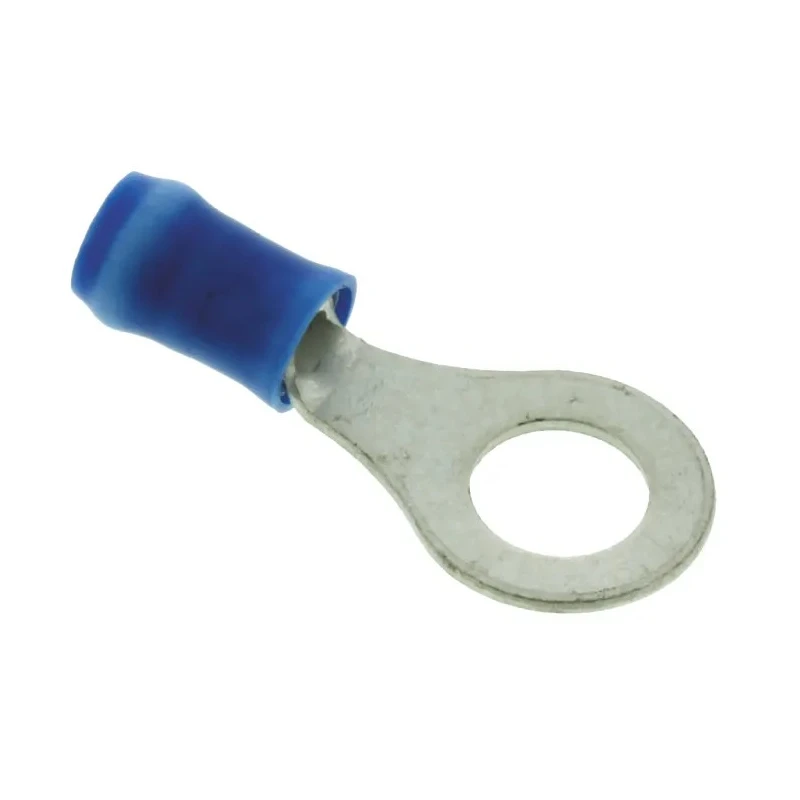

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Blue 31906

TE Connectivity 31906 PIDG Insulated Ring Terminal is engineered with a precision-formed high conductivity copper body and barrel, ensuring reliable electrical contact. The insulated polyvinyl chloride sleeve provides robust protection and wire insulation.

The wire barrel includes serrations for maximum contact and tensile strength, while the copper sleeve enhances wire support and prevents strand fraying. The outer blue nylon sleeve offers quick visual wire size identification and simplifies tooling processes.

This 27.38mm long terminal features an M6 stud size with an inner ring diameter of 6.7mm and outer ring diameter of 11.9mm, compatible with wire sizes ranging from 16 AWG to 14 AWG (1mm² to 2.5mm²). It withstands operating temperatures up to 105°C.

High conductivity copper contact material ensures minimal energy loss. Copper plating on contacts improves corrosion resistance. Color-coded PVC insulation provides ease of installation and identification. Funnelled wire entry reduces wire strand damage and speeds up assembly.

Designed for uniform and reliable crimps using specialized tooling dies. Ideal for industrial, commercial, aerospace, transportation, and electrical panel applications.

The PIDG ring terminal range from TE Connectivity is recognized for meeting or exceeding MIL-T-7928, Type II, Class 1 and 2 standards. This product supports effective wiring connections in diverse environments where dependable performance is critical.
