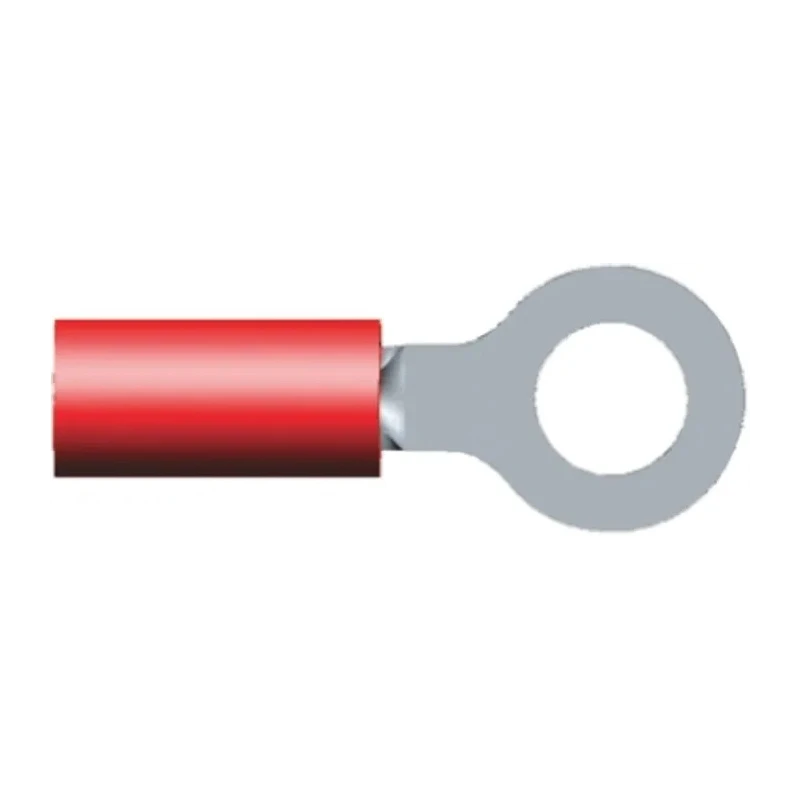

TE Connectivity PIDG Insulated Ring Terminal Nylon 8.74mm Outer Diameter M5 Stud Size 22 AWG-16 AWG Red 32837

TE Connectivity 32837 PIDG Insulated Ring Terminal is engineered for secure, uniform, and reliable wire connections in demanding industrial and electronics environments. It features a high conductivity copper body combined with a nylon insulated sleeve that provides excellent wire insulation and mechanical protection. The terminal’s design includes serrations inside the wire barrel to maximize contact and tensile strength after crimping. Its funnelled wire entry simplifies wire insertion, reducing assembly time and errors.

This ring terminal is suitable for wire sizes from 22 AWG (0.3 mm²) up to 16 AWG (1.4 mm²) and fits an M5 stud size, making it versatile for use in instrumentation, power supply connections, aerospace, automotive, control panels, lighting systems, and motor wiring. The red nylon sleeve provides easy identification for wire size and improves insulation reliability.

Designed to withstand a maximum operating temperature of 105°C, the terminal meets multiple industry standards including UL, RoHS, and CSA LR7189, ensuring high quality and safety compliance. The precision-formed copper body and copper sleeve inside the barrel prevent wire fraying and enhance connection durability.

High conductivity copper body ensures optimal electrical performance. Nylon insulation provides excellent wire protection and color coding. Serrated wire barrel enhances contact reliability and tensile strength. Funnelled wire entry prevents turned back wire strands for fast insertion.

Suitable for various industrial, aerospace, and control panel applications. Operates reliably up to 105°C maximum temperature. Complies with UL, RoHS, and CSA LR7189 standards. Outer ring diameter measures 8.74 mm and overall length is 22.25 mm.

This product is ideal for industrial, manufacturing, automotive, aerospace, and electrical control applications requiring safe and durable wire terminations. Experience the high performance and reliability of TE Connectivity’s PIDG insulated Ring Terminals for your wire management needs. Browse EnvMart for more quality wire terminals and connectors from TE Connectivity and other leading brands.
