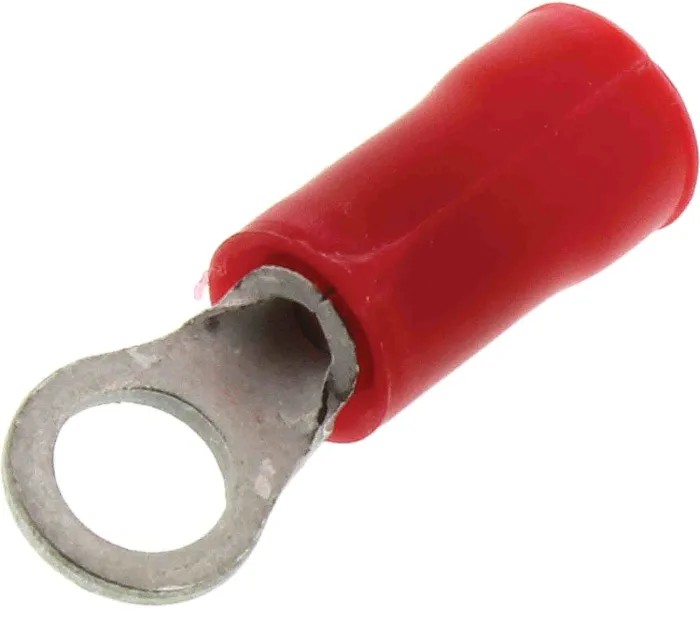

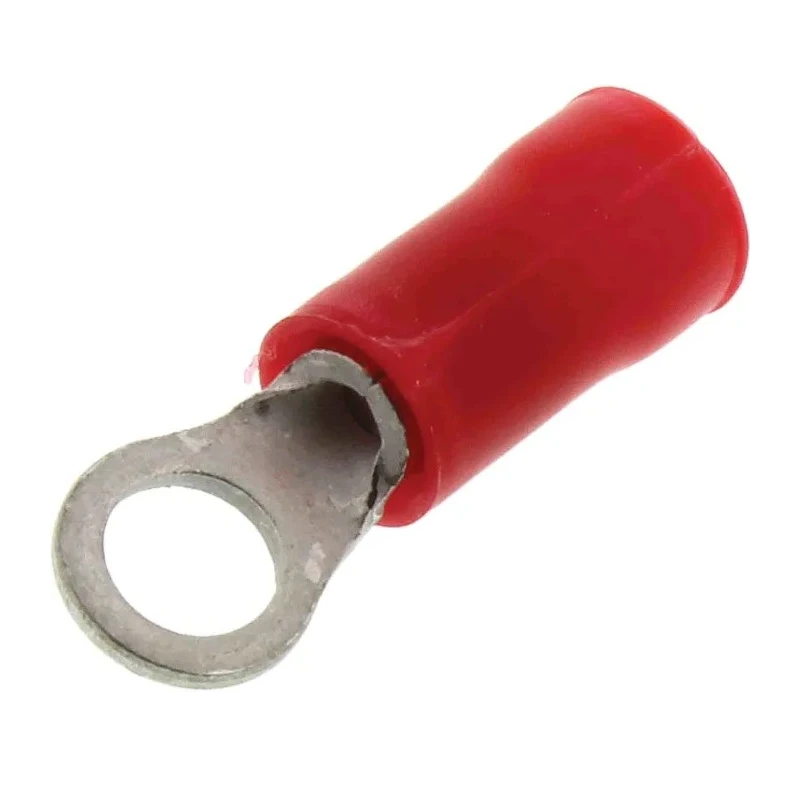

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size Red 342104-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 342104-1 |
| Insulation | Insulated |
| Overall Length | 21.87mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 90°C |
| Insulation Material | Vinyl |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.6mm |
| Inner Ring Diameter | 2.5mm |
| Stud Size | M5 |
| RS PRO Insulated Ring Terminal, M5 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
Key Features
- Features vinyl insulated sleeve for high dielectric strength and electrical safety.
- Constructed from copper contact material with tin plating for reliable conductivity and corrosion resistance.
- Overall length measures 21.87 mm for compact installation.
- Red color coding indicates wire size compatibility from 0.3 mm² to 1.3 mm².
- Suitable for operating temperatures up to 90°C in various industrial and electronic applications.
- Inner barrel serrated to enhance electrical contact and mechanical retention after crimping.
- Funnel entry assists easy wire insertion for efficient and consistent crimps.
Product Description
TE Connectivity 342104-1 PLASTI-GRIP Insulated Ring Terminal features a vinyl insulated sleeve rated at 94V-0 for high dielectric strength and durable performance. The terminal is made from high conductivity copper with tin plating to ensure excellent electrical contact and corrosion resistance. Its compact overall length of 21.87 mm with a 5.6 mm outer ring diameter and 2.5 mm inner ring diameter suits secure connections where space is limited.
Designed for wire sizes ranging from 22 AWG to 16 AWG (0.3 mm² to 1.3 mm²) and an M5 stud size, this red color-coded terminal simplifies installation and identification. The serrated inner barrel increases tensile strength and electrical reliability after crimping, while the funnel wire entry design allows easy insertion of stripped wire ends.
This Ring Terminal supports a maximum operating temperature of 90°C, making it ideal for factory, industrial electronics, power connectors, and maintenance applications where secure and safe electrical splices are critical. Its RoHS compliance ensures environmentally responsible manufacturing.
Vinyl insulation sleeve for electrical safety and durability. Copper contact with tin plating ensures corrosion resistance. Serrated inner barrel improves mechanical and electrical integrity. Supports wire sizes 22 AWG to 16 AWG with M5 stud compatibility.
Rated maximum operating temperature of 90°C. Compact overall length of 21.87 mm for tight installation spaces. Red color coding for easy wire gauge identification.
Used extensively in electronic assemblies, automotive wiring harnesses, control panels, and HVAC systems, the TE Connectivity PLASTI-GRIP series facilitates reliable and efficient electrical connections. This terminal enhances productivity with its ergonomic design and consistent crimp quality.
Explore more electronic components and wire terminal options on EnvMart for industrial applications requiring quality connectors and splices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 90°C.
This terminal is compatible with wire sizes ranging from 22 AWG to 16 AWG, or 0.3 mm² to 1.3 mm².
The overall length of this terminal measures 21.87 mm, making it suitable for compact installations.
The terminal is constructed from copper contact material with tin plating for reliable conductivity and corrosion resistance, and features a vinyl insulated sleeve.
The stud size for this ring terminal is M5.
Yes, this terminal is RoHS compliant, ensuring environmentally responsible manufacturing.
The outer ring diameter is 5.6 mm and the inner ring diameter is 2.5 mm.
The serrated inner barrel enhances electrical contact and mechanical retention after crimping, improving both tensile strength and reliability.
This terminal features a vinyl insulated sleeve, providing high dielectric strength and electrical safety.
This terminal is suitable for various industrial and electronic applications, including electronic assemblies, automotive wiring harnesses, and control panels.
The thickness of the terminal is 0.79 mm.
The red color coding indicates wire size compatibility, making it easier to identify the appropriate wire gauge for installation.
