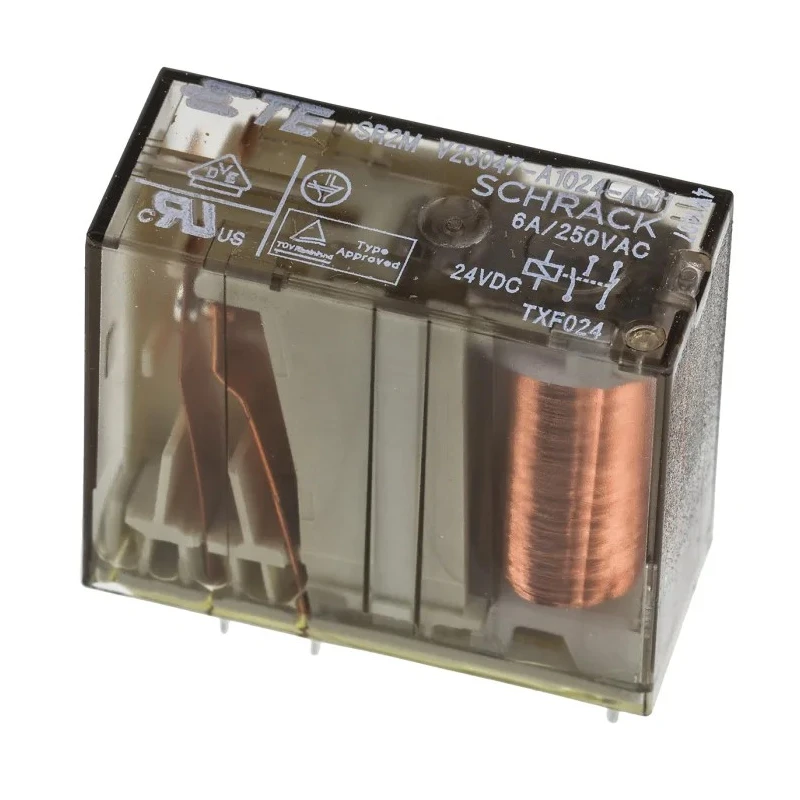

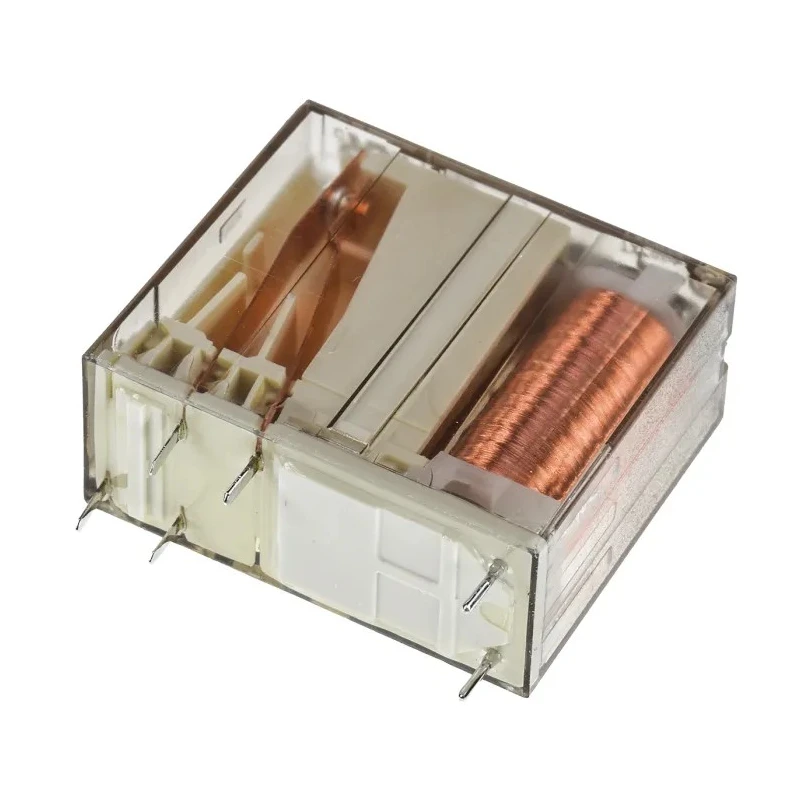

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 2-Pole 1 NO/1 NC V23047-A1024-A511 1-1393258-7
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Length | 29mm |
| Model | V23047-A1024-A511 1-1393258-7 |
| Depth | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR2M |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 823Ω |
| Coil Power | 700mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- Equipped with a silver alloy contact material for enhanced conductivity.
- Coil resistance rated at 823 ohms with a coil power consumption of 700mW.
- Designed for PCB mounting using solder terminals for secure installation.
- Operates efficiently within a temperature range from -25°C to 70°C.

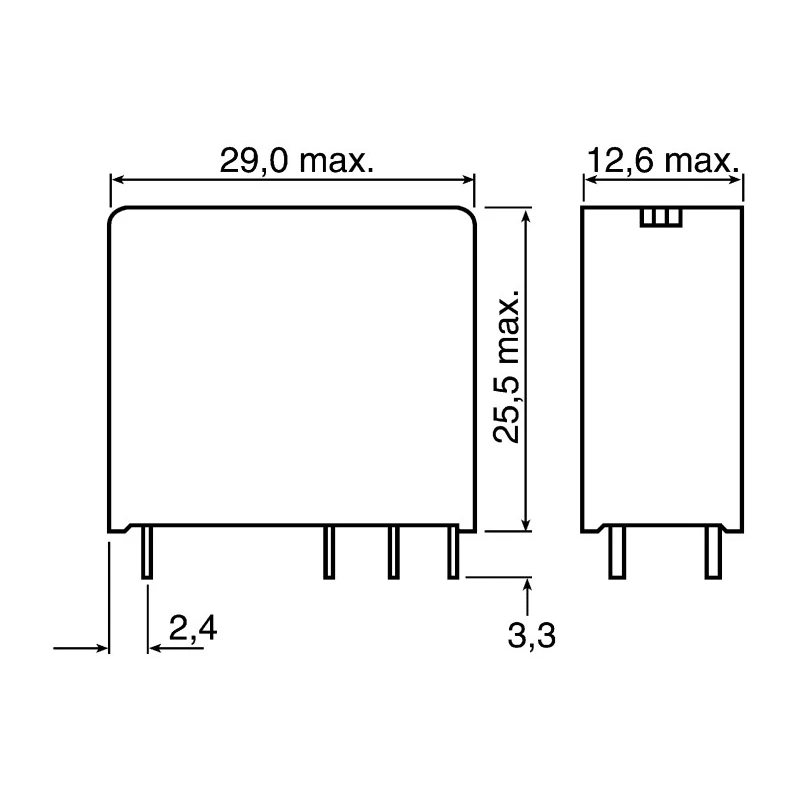

- Compact dimensions of 29mm length, 25.5mm height, and 12.6mm depth ensure space-saving integration.
- Coil to contact isolation voltage of 4kVrms provides strong electrical separation.
- Part of the SR2M series, offering washproof reed relay technology for durability in DC voltage applications.
- Low contact noise and low thermo voltage characteristics.
Product Description
TE Connectivity V23047-A1024-A511 1-1393258-7 is a high-quality PCB Force Guided Relay designed for precise and reliable switching in industrial, automation, electrical, and electronics applications. Featuring a 24V DC coil voltage and a contact configuration of 1 NO/1 NC across 2 poles, this relay supports stable performance with low contact noise and minimal thermo voltage effects.
The relay is part of the SR2M series, characterized by washproof reed relay technology suitable for DC voltage environments. It uses silver alloy contacts to ensure excellent conductivity and durability. With coil resistance of 823 ohms and power consumption of 700mW, the relay is optimized for energy efficiency. Its solder terminal mount enables straightforward PCB installation.
Operating across a temperature spectrum from -25°C to 70°C, the relay guarantees robustness in various industrial conditions. Compact dimensions (29mm length, 25.5mm height, 12.6mm depth) allow easy integration in constrained spaces. The coil to contact isolation voltage of 4kVrms assures safe electrical separation for demanding applications.
Additional features include options for shielding plates that protect against electrostatic interference and spark dampers for enhanced longevity. This relay is ideal for industrial automation, control systems, electrical panels, manufacturing equipment, and related environments where dependable switching is critical.
Equipped with a silver alloy contact material for enhanced conductivity. Coil resistance rated at 823 ohms with a coil power consumption of 700mW. Designed for PCB mounting using solder terminals for secure installation.
Operates efficiently within a temperature range from -25°C to 70°C. Compact dimensions of 29mm length, 25.5mm height, and 12.6mm depth ensure space-saving integration. Coil to contact isolation voltage of 4kVrms provides strong electrical separation.
Part of the SR2M series, offering washproof reed relay technology for durability in DC voltage applications. Low contact noise and low thermo voltage characteristics. Includes shielding options for electrostatic protection and spark suppression.
TE Connectivity products provide trusted performance in complex electrical and automation systems. Explore EnvMart’s selection of relays and contactors for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It features a contact configuration of 1 Normally Open (NO) and 1 Normally Closed (NC) across 2 poles.
The coil resistance is rated at 823 ohms, with a power consumption of 700mW.
The isolation voltage from coil to contact is 4kVrms.
The relay has compact dimensions of 29mm in length, 25.5mm in height, and 12.6mm in depth.
It operates efficiently within a temperature range from -25°C to 70°C.
This model is designed for PCB mounting using solder terminals for secure installation.
The contacts are made from silver alloy, which enhances conductivity.
It is part of the SR2M series, which features washproof reed relay technology.
This relay is suitable for industrial automation, control systems, electrical panels, and manufacturing equipment.
Yes, it includes options for shielding plates to protect against electrostatic interference and spark dampers for enhanced longevity.
The relay is manufactured in the Czech Republic.
