TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 1.1 A Idc B82472G4223M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4223M000 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 200mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound construction provides reliable performance.
- Ferrite core ensures efficient magnetic shielding and stability.

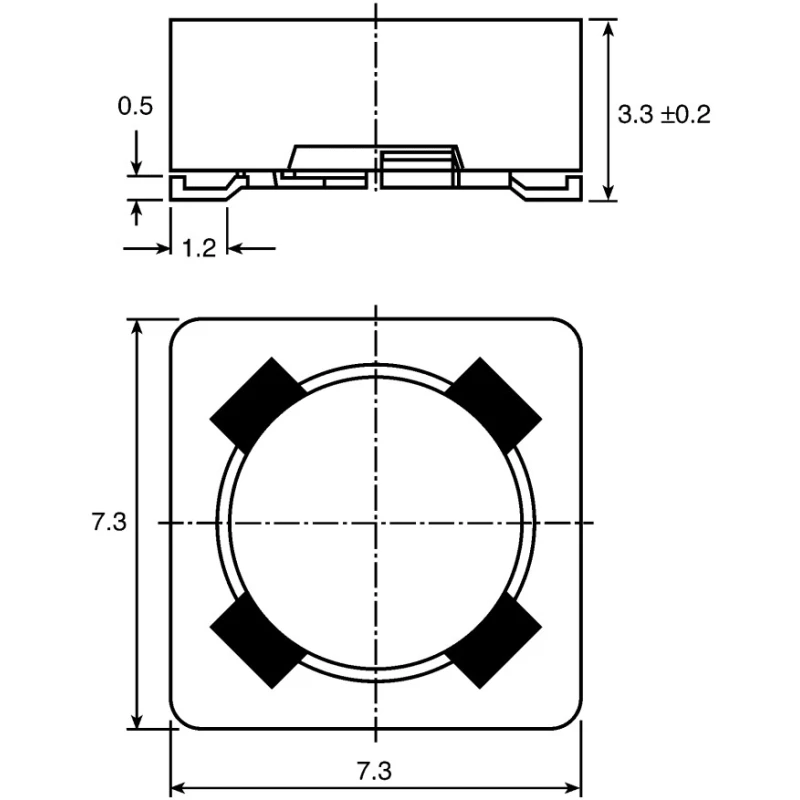

- Compact surface mount design with dimensions 7.3 mm x 7.3 mm x 3.3 mm.
- Operating temperature range from -55°C to 125°C suitable for various applications.
- Maximum DC resistance of 200 mΩ for efficient current conduction.
- Inductance tolerance of ±20% for design flexibility.
- Solder termination style compatible with automated assembly.
- RoHS compliant ensuring environmental safety.
Product Description
TDK B82472G4223M000 shielded wirewound surface mount inductor features a high-quality ferrite core and magnetically shielded wirewound construction, offering an inductance value of 22 μH with a tolerance of ±20% and a maximum DC current of 1.1 A. Its compact size of 7.3 mm length, 7.3 mm depth, and 3.3 mm height enables use in densely packed electronic assemblies.
The inductor operates over a wide temperature range from -55°C to 125°C, ensuring robustness in demanding industrial and automotive environments. The low maximum DC resistance of 200 mΩ enhances performance in power supply filtering and DC-DC converter applications.
Produced with a solder termination style, this component is well-suited for surface mount technology and automated assembly processes. RoHS compliance confirms its environmental safety standards.
Applications include filtering of supply voltages, smoothing in DC-DC converters, and use in automotive electronic systems where reliability and magnetic shielding are critical. Magnetically shielded wirewound construction for noise reduction.
Ferrite core material ensuring magnetic stability and efficiency. Compact form factor ideal for surface mount assembly. Operating temperature range from -55°C to 125°C for broad usage. Maximum DC current rating of 1.1 A supports moderate current loads.
Maximum DC resistance of 200 mΩ reduces power loss. Inductance tolerance at ±20% allows design margin. Packaging on tape and reel facilitates automated production. RoHS compliant for environmental standards adherence. Solder termination style ensures secure mounting and connectivity.
This TDK surface mount inductor is essential for applications in industrial electronics, automotive systems, power management circuits, and other electrical and electronic assemblies requiring reliable inductive components with shielding and performance stability. Browse the EnvMart Electronics & Electricals catalog for more components and accessories from leading manufacturers.
Explore more products in our Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It has a maximum DC current rating of 1.1 A, making it suitable for moderate current loads.
This inductor measures 7.3 mm in length, 7.3 mm in depth, and 3.3 mm in height.
The maximum DC resistance is 200 mΩ, which helps in reducing power loss during operation.
It operates over a temperature range from -55°C to 125°C, suitable for various applications.
This inductor features a solder termination style, making it compatible with surface mount technology.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The core material is ferrite, which provides efficient magnetic shielding and stability.
It is suitable for applications such as filtering of supply voltages and smoothing in DC-DC converters.
It is packaged on tape and reel, which facilitates automated production processes.
This inductor is part of the B82472-G4 series.
This model has a pin count of 2, suitable for standard connections in electronic assemblies.
