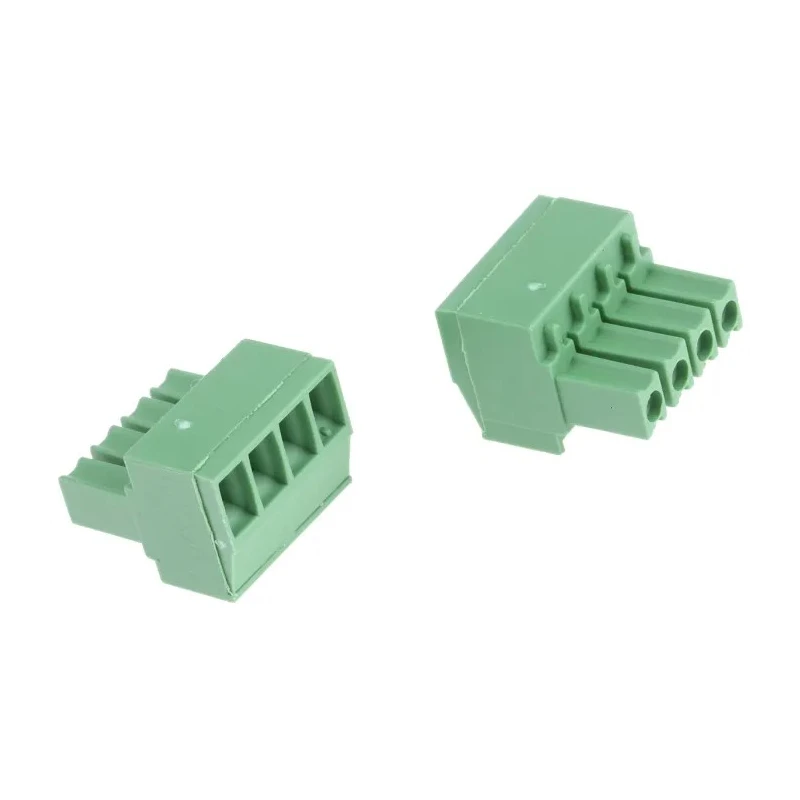

TE Connectivity Buchanan Series 3.5mm Pitch 4-Contact 1 Row Pluggable Terminal Block 284506-4
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 11A |
| Length | 14mm |
| Model | 284506-4 |
| Depth | 15.5mm |
| Width | 11.1mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Supports current up to 11A for reliable performance.
- Right angle orientation suitable for compact PCB designs.
- Compatible with wire sizes from 0.05 mm² to 2 mm² (30-14 AWG).
- Constructed with durable green polyamide housing material.
- Features M2 nickel plated brass screws and tin plated contacts for corrosion resistance.
- Designed for rising cage clamp connection ensuring secure wire retention.
- Connector gender is male allowing correct mating with matching headers.
- Rated for voltage up to 300V AC ensuring safety in various applications.
Product Description
TE Connectivity 284506-4 Buchanan Series 4-contact pluggable terminal block with 3.5 mm pitch and 1 row offers a robust solution for electrical connections. Designed with a green polyamide 6.6 GF housing, this right angle terminal block plug features side wire entry and a rising cage clamp mechanism for secure wire retention. The male connector design mates with corresponding headers to ensure reliable connections in industrial and electronic applications.
Supporting a current rating of 11A and accommodating wire sizes ranging from 0.05 mm² to 2 mm² (30 to 14 AWG), it operates safely at voltages up to 300V AC. The plug connectors incorporate M2 nickel plated brass screws and tin plated contacts to resist corrosion and maintain electrical integrity over time. The compact dimensions - length 14 mm, width 11.1 mm, and depth 15.5 mm - allow use in space-restricted printed circuit board assemblies.
This terminal block meets UL 94V-0 flammability standards, ensuring compliance for electronic device safety. It is ideal for electronics manufacturing, industrial automation, control panels, and other commercial electrical systems requiring reliable pluggable terminal interfaces.
Supports current up to 11A for reliable performance. Right angle orientation suitable for compact PCB designs. Compatible with wire sizes from 0.05 mm² to 2 mm² (30-14 AWG). Durable green polyamide housing material. M2 nickel plated brass screws and tin plated contacts ensure corrosion resistance.
Rising cage clamp provides secure wire retention. Male connector gender for proper mating. Compact dimensions: length 14 mm, width 11.1 mm, depth 15.5 mm. Rated voltage of 300V AC. Meets UL 94V-0 flammability standard.
Designed for industrial, electronics manufacturing, and commercial electrical applications, the TE Connectivity 284506-4 terminal block enhances connectivity reliability and ease of assembly.
Explore the extensive range of TE Connectivity Pluggable Terminal Blocks and related electronic components on EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 11A, ensuring reliable performance in electrical connections.
The terminal block is rated for a maximum voltage of 300V AC, making it suitable for various applications.
It accommodates wire sizes ranging from 0.05 mm² to 2 mm² (30 to 14 AWG).
The compact dimensions are 14 mm in length, 11.1 mm in width, and 15.5 mm in depth.
The housing is constructed from durable green polyamide material, which contributes to its reliability.
It features a rising cage clamp mechanism that ensures secure wire retention.
This model has a right angle orientation, making it suitable for compact PCB designs.
It has 4 contacts, allowing for multiple connections in a single unit.
Yes, it meets UL 94V-0 flammability standards, ensuring safety in electronic devices.
It is ideal for electronics manufacturing, industrial automation, control panels, and commercial electrical systems.
The country of origin for this terminal block is Italy.
