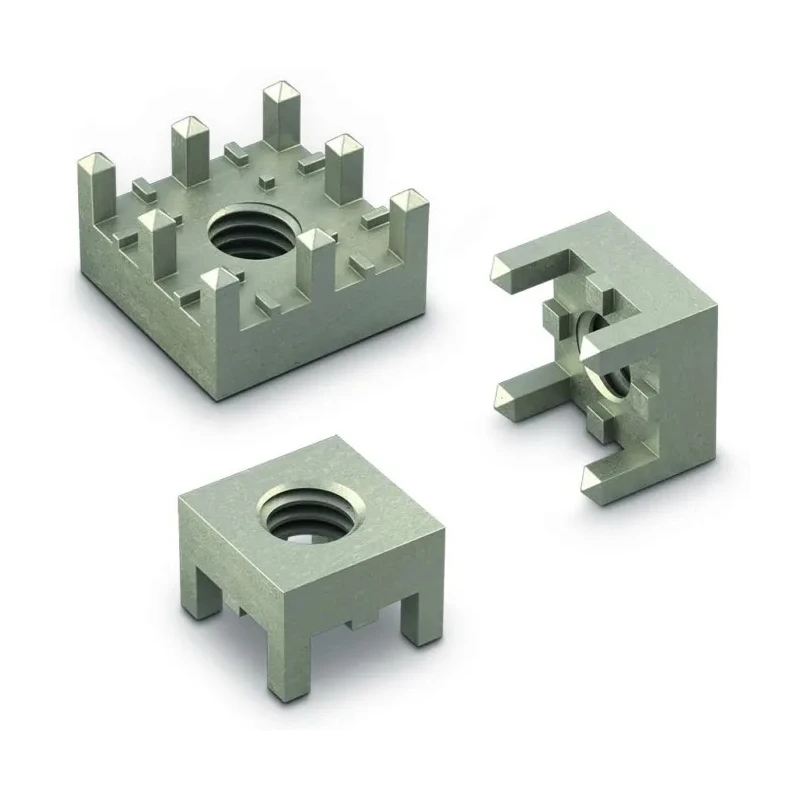

Wurth Elektronik Brass Screw Terminal Vertical 50A, REDCUBE Series, Tin Plated Brass Body 74650073R

Wurth Elektronik 74650073R brass screw terminal is a vertical orientation PCB mount power terminal from the REDCUBE series designed for high current wire-to-board connections up to 50A. It features a robust brass body with tin plating to ensure excellent conductivity and corrosion resistance. The terminal's low profile design minimizes space use on the PCB, making it suitable for compact and multilayer electronics assemblies.

The terminal includes four legs arranged in two rows at a 2.54 mm pitch, facilitating easy insertion and mechanical stability. An M3 screw size allows secure and reliable clamping of wires, capable of handling high tightening torque which safeguards the connection integrity during operation.

Designed with automated manufacturing in mind, the terminal supports automated pick and place and reflow soldering processes, improving production efficiency and repeatability. The solid brass construction allows for low heat development, ensuring the terminal remains cool and efficient under continuous current load conditions.

This product is ideal for use in industrial, electronic, telecommunications, and assembly line environments requiring reliable power connections on printed circuit boards. Its mechanical stability and high current rating make it well-suited for demanding applications in power distribution and control systems.

The low profile design optimizes PCB real estate for compact electronic assemblies. High current capacity of up to 50A enables use in robust power applications. Brass body with tin plating provides corrosion resistance and superior electrical conductivity.

Snap-in terminals facilitate automated assembly with pick and place and reflow soldering compatibility. Supports secure wire clamping using an M3 screw ensuring reliable electrical connections. Two-row, four-leg layout with 2.54 mm pitch maintains mechanical stability on multilayer PCBs.

Reduces heat generation for efficient current distribution and extended device longevity. Explore more Wurth Elektronik power connectors and terminals on EnvMart to meet diverse industrial and electronic assembly needs.
