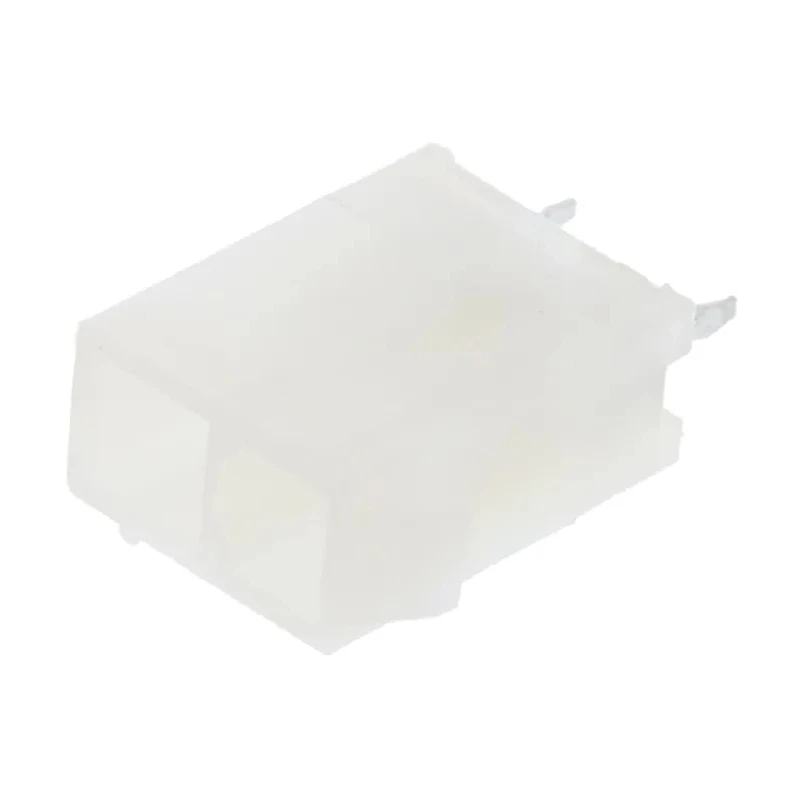

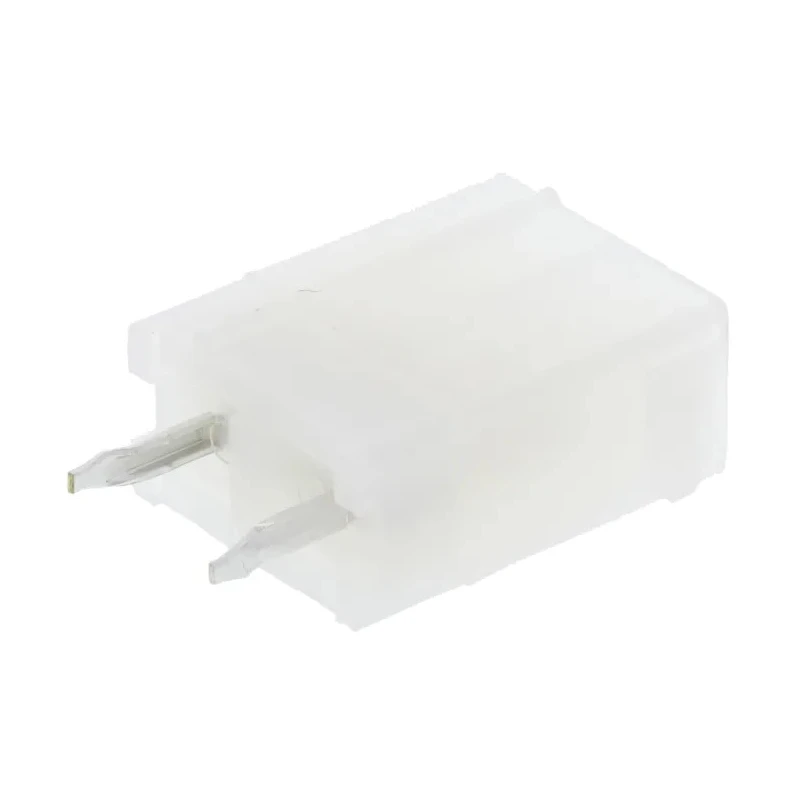

Molex Mini-Fit Jr Male Connector Housing 2 Way 2 Row 4.2 mm Pitch Through Hole Nylon Mexico 39-29-0023
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 6.2mm |
| Width | 12.8mm |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Series | Mini-Fit Jr |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Standard Mini-Fit Female Terminal |
| Number of Contacts | 2 |
| Connector Gender | Male |
Key Features
- Constructed with durable nylon housing material rated for reliable electrical insulation.
- Features a through-hole mount type facilitating secure PCB installation.
- Straight orientation design with scoop-proof housings to prevent contact damage.
- Accommodates standard Mini-Fit female terminals for versatile connectivity.
- Designed with polarization and keying features to prevent mismating.
- Incorporates a positive locking mechanism ensuring secure mating connections with audible click confirmation.
- Capable of handling up to 9A current per circuit for high power applications.
- Manufactured in Mexico, guaranteeing consistent quality and performance.
Product Description
Molex 39-29-0023 Mini-Fit Jr Male Connector Housing is a high-quality electrical connector housing designed for use in demanding wire-to-board and wire-to-wire applications. Featuring a 4.2 mm pitch with 2 rows and 2 contacts, it is suitable for high current applications up to 9A per circuit.
This connector housing is constructed from durable nylon material providing excellent electrical insulation and mechanical strength. The through-hole mounting style allows for reliable PCB attachment. Its straight orientation and scoop-proof housing design protect the delicate terminals from damage during mating at severe angles.
Advanced polarization and keying features prevent incorrect mating, while the positive locking mechanism with an audible click ensures a secure connection against vibration or shock. This connector housing is compatible with standard Mini-Fit female terminals to provide flexibility in PCB connector systems.
The Molex Mini-Fit Jr series is widely used in consumer white goods, industrial automation, servers, networking equipment, and other industrial and commercial electrical applications requiring compact, reliable power connectors.
Constructed from nylon housing material ensuring insulation and durability. Through-hole mounting for precise PCB installation. Scoop-proof design to protect contact terminals from damage. Polarization and keying features to prevent mismating.
Positive locking mechanism with audible click for mating confirmation. Suitable for current ratings up to 9A per circuit. Compact size with 6.2 mm length and 12.8 mm width.
Set your equipment up for reliable power connection with the Molex Mini-Fit Jr 39-29-0023 Connector Housing, designed and manufactured to high standards in Mexico. For more advanced PCB connector options, explore the full range of Molex Mini-Fit Jr connectors and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing is capable of handling up to 9A current per circuit, making it suitable for high power applications.
The pitch size of this connector is 4.2 mm, which is standard for the Mini-Fit Jr series.
This model features 2 contacts, designed for efficient connectivity in various applications.
The housing is constructed from durable nylon, providing reliable electrical insulation and mechanical strength.
It utilizes a through-hole mount type, facilitating secure installation on printed circuit boards (PCBs).
The dimensions of this model are 6.2 mm in length and 12.8 mm in width.
This connector housing includes advanced polarization and keying features to prevent incorrect mating.
Yes, it incorporates a positive locking mechanism that provides an audible click confirmation to ensure secure mating connections.
The orientation of this connector housing is straight, designed for easy installation and connection.
It is designed for use with standard Mini-Fit female terminals, allowing for versatile connectivity options.
This model is manufactured in Mexico, ensuring consistent quality and performance.
It is widely used in consumer white goods, industrial automation, servers, networking equipment, and other commercial electrical applications.
