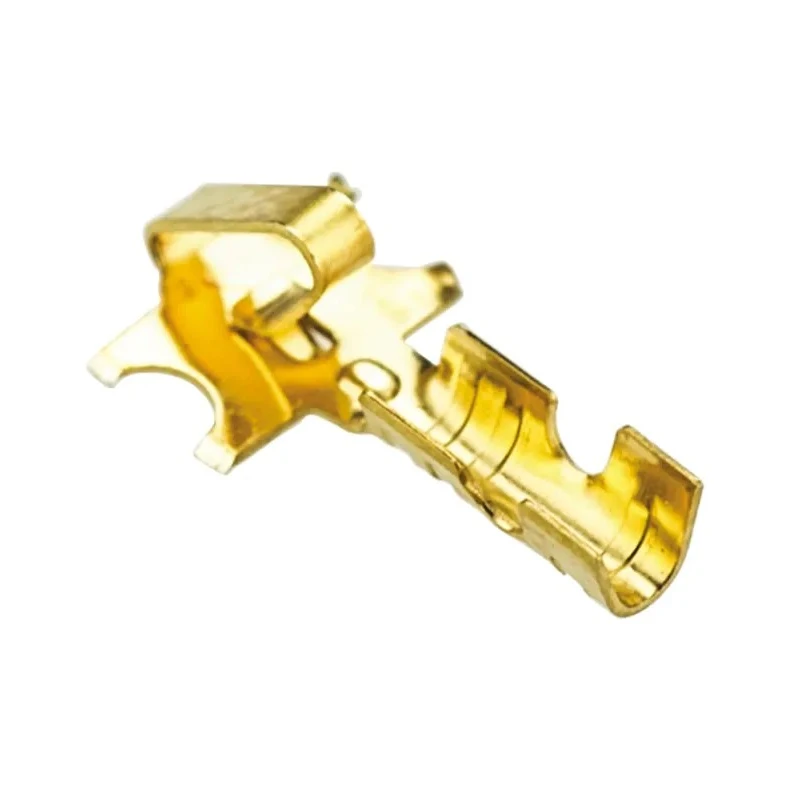

Molex Female Crimp Terminal 4A Current, Gold Plated Brass Contact, 30 AWG Min, 22 AWG Max 08-56-0109
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 4A |
| Gender | Female |
| Contact Material | Brass |
| Series | 2759 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | 0°C |
| For Use With | KK 254 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 2759 Series Female Crimp Terminal, 30 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Key Features
- Compatible with KK 254 connector housings for secure connections.
- Gold plating enhances conductivity and corrosion resistance.
- Brass contact material ensures reliable and durable electrical performance.
- Suitable for a temperature range from 0°C to 75°C.
- Termination by crimping provides stable mechanical and electrical contacts.
- Maximum contact resistance of 10 milliohms ensures minimal signal loss.
- Meets standard operating conditions without specific certifications.
- Used extensively in electronic component assembly and PCB wiring applications.
Product Description
Molex 08-56-0109 female crimp terminal is engineered for reliable electrical connections with a 4 ampere current rating. The contact is made of brass with a gold plating that ensures excellent conductivity and corrosion resistance, making it suitable for demanding electronic applications.
Designed for use with KK 254 connector housings, this crimp terminal supports wire sizes ranging from 30 AWG (0.05 mm²) minimum to 22 AWG (0.35 mm²) maximum, providing versatility across various wiring needs.
The terminal offers a maximum contact resistance of 10 milliohms and an operating temperature range from 0°C to 75°C, ensuring performance stability in typical electronic and electrical environments.
Termination is achieved via crimping, ensuring a secure mechanical hold and strong electrical contact. The product does not carry additional certifications but aligns with industry-accepted standards of reliability and quality inherent to Molex products.
Compatible with KK 254 connector housings for secure, robust connections. Gold-plated brass contacts improve conduction and resist corrosion. Supports 30 AWG to 22 AWG wire sizes for flexibility. Termination type: crimp for mechanical robustness.
Current rating of 4A suitable for low power electronic circuits. Operating temperature from 0°C to 75°C for standard environments. Maximum contact resistance of 10 milliohms for efficiency. Reliable component for PCB connectors and wire housings.
This terminal is widely applicable in industrial, commercial, and laboratory electrical assemblies requiring dependable low-current connections. Its robust construction and standardized dimensions facilitate easy integration into existing connector systems.
Explore more electronic components and connectors at EnvMart for all your industrial and manufacturing needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal has a current rating of 4 amperes, making it suitable for low power electronic circuits.
It supports wire sizes ranging from 30 AWG (0.05 mm²) minimum to 22 AWG (0.35 mm²) maximum, providing flexibility for various wiring needs.
The maximum contact resistance is 10 milliohms, ensuring minimal signal loss during operation.
The operating temperature range is from 0°C to 75°C, suitable for standard electronic environments.
Termination is achieved via crimping, which provides a secure mechanical hold and strong electrical contact.
It is designed for use with KK 254 connector housings, ensuring secure and robust connections.
The contact is made of brass and features gold plating, which enhances conductivity and corrosion resistance.
This terminal belongs to the Molex 2759 series, which is known for reliable electrical connections.
It is widely applicable in industrial, commercial, and laboratory electrical assemblies requiring dependable low-current connections.
The country of origin for this crimp terminal is India.
Specific dimensions are not provided, but it is designed to fit standard KK 254 connector housings.
The product does not carry additional certifications but aligns with industry-accepted standards of reliability and quality.
