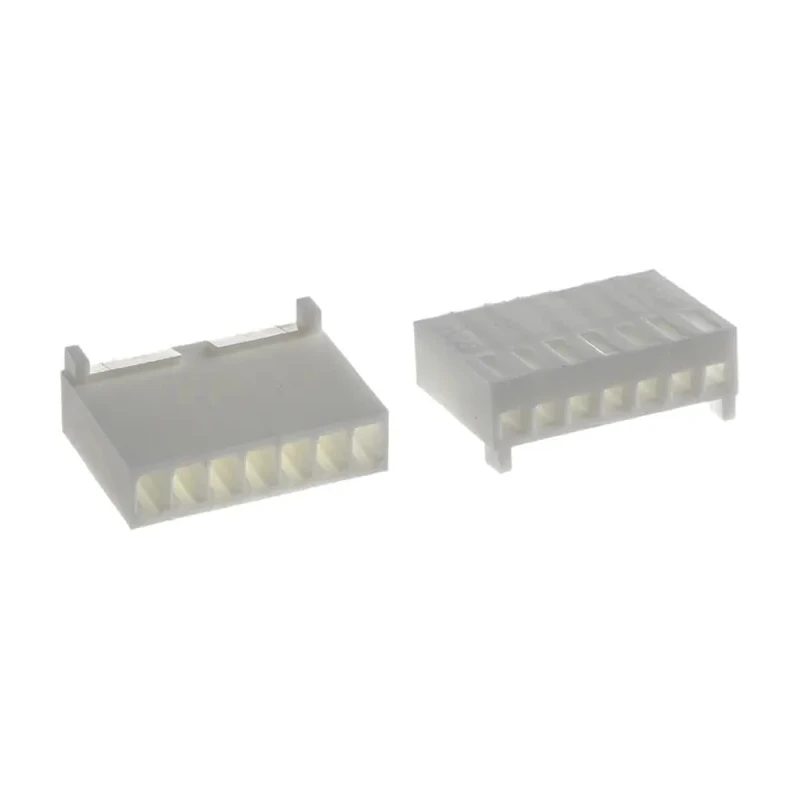

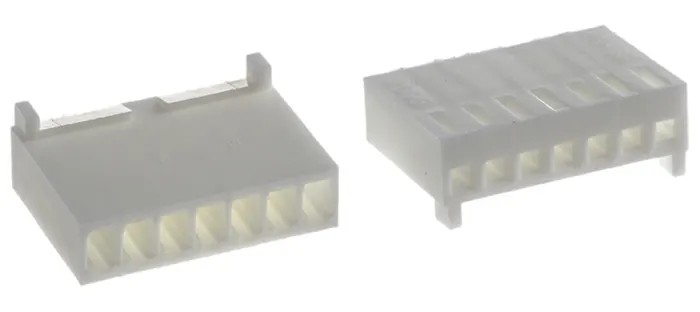

Molex KK 254 Female Connector Housing Nylon Cable Mount 7 Contacts 2.54 mm Pitch 22-01-3077
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 18.34mm |
| Width | 4.82mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 254 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | KK Connector |
| Number of Contacts | 7 |
| Connector Gender | Female |
Key Features
- The housing is made of durable nylon, offering resistance to mechanical stress.
- It features a 7-way, single-row straight female connector design.
- The pitch spacing is 2.54 mm, compatible with KK connectors.
- Compact dimensions of 18.34 mm length, 4.82 mm width, and 12.7 mm depth ensure space-efficient installation.
- Polarised and locking features prevent incorrect mating and secure connections.
- Flame-resistant material stops burning within 10 seconds in fire conditions.
- Ideal for printed circuit boards, industrial automation, and machine building applications.
Product Description
Molex 22-01-3077 KK 254 Female Connector Housing is a high-quality nylon connector housing designed for cable mount use with KK series connectors. It features a 7-way, single-row straight female connector with a 2.54 mm pitch, providing reliable electrical connections for various electronic components.
The housing material is nylon, offering excellent resistance to mechanical stress and ensuring long-term durability. Its compact size with precise dimensions of 18.34 mm length, 4.82 mm width, and 12.7 mm depth makes it an excellent space-efficient solution for electronic assemblies.
This connector housing is polarised to the mating part to facilitate easy installation without errors, and a locking mechanism ensures secure connections preventing accidental disconnections. Furthermore, the housing is flame resistant, ceasing to burn in less than 10 seconds, which enhances safety in industrial and commercial environments.
Applications for this connector housing include printed circuit boards (PCBs), machine building, industrial automation systems, and other electronic equipment where dependable connector housing is essential for system reliability and performance.
Durable nylon housing resists mechanical stress for long service life. 7-way, single-row straight female connector configuration. 2.54 mm pitch for compatibility with KK series connectors. Compact dimensions (18.34 mm L × 4.82 mm W × 12.7 mm D).
Polarised and locking for error-free and secure mating. Flame-resistant material meets safety requirements. Suitable for PCBs, industrial automation, and machine building. Choose Molex KK 254 Female Connector Housing for reliable and safe electronic interconnections. Explore more connector options and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, making it compatible with KK series connectors.
This model features 7 contacts, arranged in a single-row configuration.
The dimensions are 18.34 mm in length, 4.82 mm in width, and 12.7 mm in depth.
The housing is made of nylon, which provides resistance to mechanical stress.
Yes, this connector housing is designed for cable mount applications.
Yes, it is flame-resistant and ceases to burn within 10 seconds in fire conditions, enhancing safety.
This model supports a female connector gender.
It is suitable for applications including printed circuit boards (PCBs), industrial automation, and machine building.
It features a polarised design and a locking mechanism to prevent incorrect mating and accidental disconnections.
The orientation of this housing is straight, allowing for straightforward installation.
This connector housing belongs to the KK 254 series.
The country of origin for this connector housing is India.
