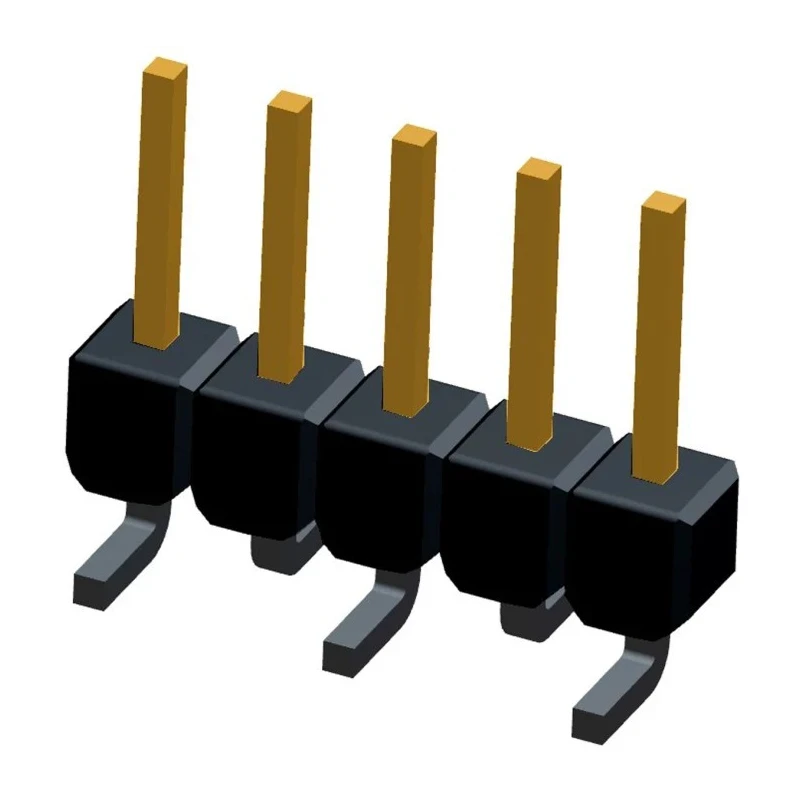

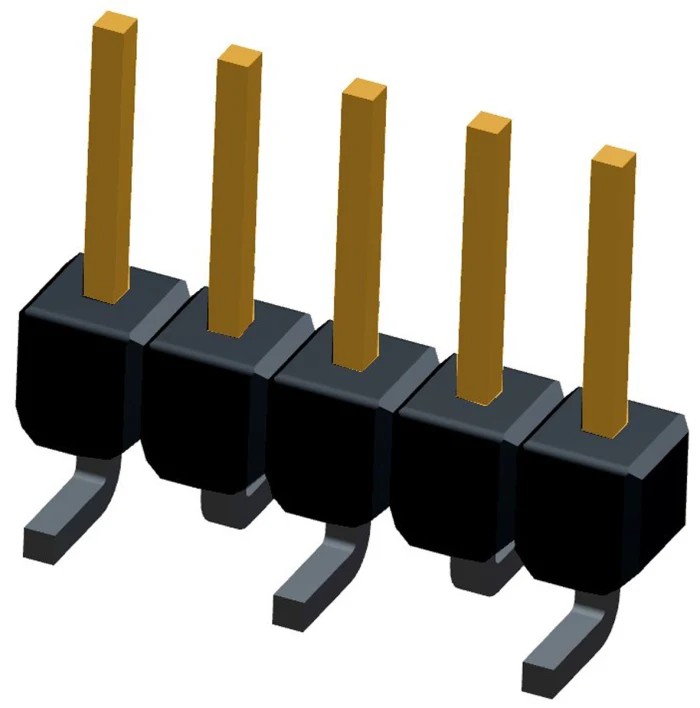

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 1241150-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Glass Filled Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- Constructed with glass filled polycyclohexylenedimethylene terephthalate housing for durability.
- Features phosphor bronze contact material plated with gold for reliable connectivity.
- Designed as a single row, unshrouded pin header with straight orientation.
- Suitable for surface mount applications with solder termination type.
- Operates reliably in temperatures ranging from -65°C to 105°C.
- Mating pin length of 5.8 mm ensures secure connections.
- Rated for a current of 3 amps for industrial and electronic equipment.
- Can be broken down to required size for flexible installation and labor savings.
Product Description
TE Connectivity 1241150-5 AMPMODU MOD II Series straight surface pin header offers a robust solution with a 2.54 mm pitch and 5 male contacts in a single row. Constructed from glass filled polycyclohexylenedimethylene terephthalate housing and phosphor bronze contacts plated in gold, this pin header provides high reliability and excellent conductivity.
Designed for surface mount use, the header features a solder termination type and an unshrouded straight orientation, ideal for board-to-board and wire-to-board connector systems. Its operating temperature range from -65°C up to 105°C allows use in diverse industrial, automotive, and telecommunications environments.
The mating pin length of 5.8 mm secures connections while supporting a current capacity of 3 amperes, suitable for a wide range of electronic control and test equipment.
The AMPMODU MOD II interconnect system is renowned for versatility; these pin headers can easily be broken down to size to save time and cost during assembly. Their compact 2.54 mm centerline pitch meets standard PCB design requirements for many applications.
Constructed with glass filled polycyclohexylenedimethylene terephthalate housing for durability. Phosphor bronze contact material with gold plating ensures superior conductivity. Single row, 5-contact configuration with straight, unshrouded design.
Surface mount solder termination for efficient PCB integration. Wide operating temperature range from -65°C to 105°C. Mating pin length of 5.8 mm for reliable connections. Supports 3 amp current suitable for industrial and automotive uses.
Breakaway design allows customization for production efficiencies. Applications include automotive controls, industrial machinery, telecommunications, and medical instruments.
This pin header is ideal for diverse industrial applications including manufacturing automation, control systems in automotive electronics, medical device connections, and telecommunications hardware. The reliable electrical performance and robust construction make it a valuable component for assembly lines demanding precision and durability.
Explore EnvMart's extensive Electronics Components catalog for complementary PCB Headers and connectors from TE Connectivity and other leading manufacturers to complete your system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header has a pitch of 2.54 mm.
It can operate reliably at temperatures up to 105°C.
This model features 5 male contacts.
It utilizes a solder termination type for efficient PCB integration.
It is rated for a current of 3 amperes.
The housing is constructed from glass filled polycyclohexylenedimethylene terephthalate.
The mating pin length is 5.8 mm.
Yes, it is designed for surface mount applications with a solder termination type.
It features a straight orientation.
Yes, it can be broken down to the required size for flexible installation and labor savings.
It is suitable for automotive controls, industrial machinery, telecommunications, and medical instruments.
The contacts are made of phosphor bronze and are plated with gold for reliable connectivity.
