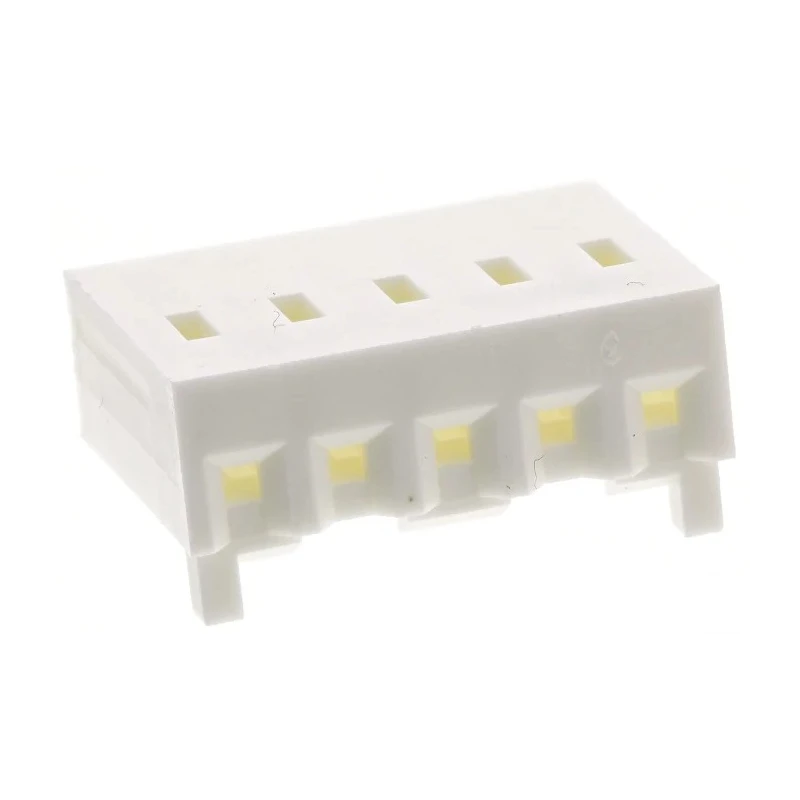

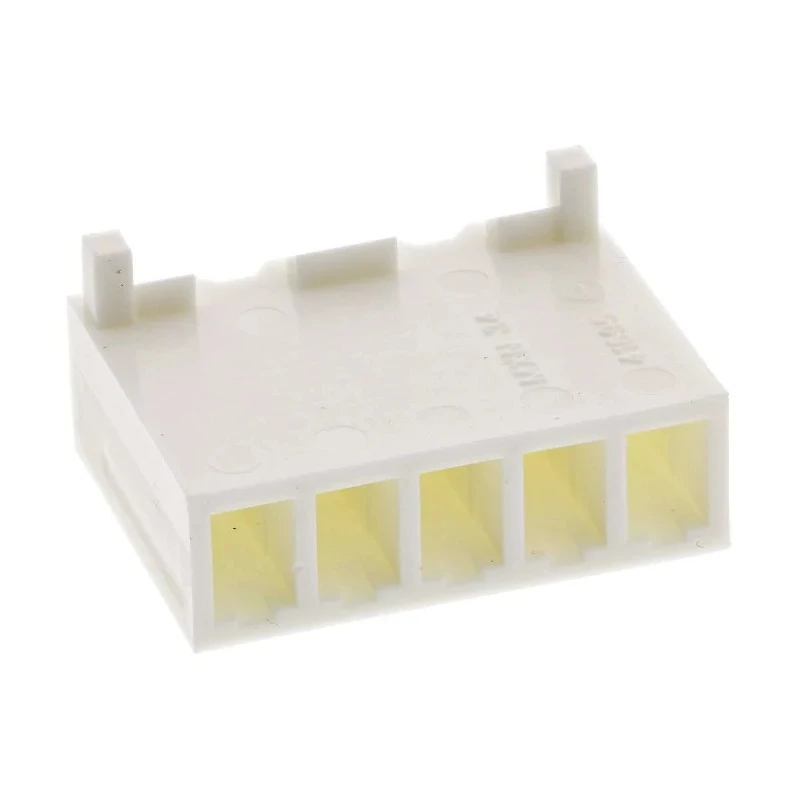

Molex KK 396 Female Connector Housing 3.96 mm Pitch 5 Way 1 Row Straight 09-50-8053
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 20.67mm |
| Width | 8.07mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | KK Connector |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- The connector housing features 5 contact positions arranged in a single row.
- It supports a pitch of 3.96 mm, suitable for KK connectors.
- Constructed from polyethylene terephthalate, providing durable insulation and mechanical strength.
- Designed with a straight orientation for easy cable mounting and routing.
- Compact size with length of 20.67 mm and width of 8.07 mm ensures efficient PCB space usage.
- Manufactured in India and compliant with industry standards though no formal approvals specified.
- Compatible with KK 2478, 2578, and Trifurcon™ 6838 series terminals for versatile applications.
- Ideal for electronic components requiring secure socket connections on printed circuit boards.
Product Description
Molex 09-50-8053 KK 396 Female Connector Housing is a premium quality 5-way, 1-row straight female connector housing designed for cable mounting applications. Featuring a precise 3.96 mm pitch, this connector provides reliable electrical connections in a compact form factor measuring 20.67 mm in length and 8.07 mm in width.
The housing material is polyethylene terephthalate, offering excellent durability, electrical insulation, and resistance to mechanical stresses encountered in electronic, industrial, and manufacturing environments. Its straight orientation facilitates straightforward cable routing and integration into KK connector systems.
This connector housing is compatible with Molex's KK 2478 and 2578 series, as well as the Trifurcon™ 6838 series crimp terminals, allowing flexible use in a variety of electronic assembly applications including PCB connections, power connectors, and wire housings.
The product is manufactured in India under Molex's stringent quality practices. It supports industry-standard applications in electronics assembly, automation, telecommunications, and general electrical equipment, securing stable contact points and improving overall system reliability.
The connector features a pitch of 3.96 mm and 5 contacts arranged in a single row. Its polyethylene terephthalate housing ensures robust mechanical and electrical performance. Designed for straight cable mount orientation enhancing ease of installation.
Dimensions of 20.67 mm length and 8.07 mm width suit compact PCB layouts. Compatible with various Molex KK and Trifurcon™ crimp terminal series. Suited for use in electronics, power connectors, wire housings, and related industrial applications.
This KK 396 connector housing is an essential component for engineers and technicians requiring dependable female connectors for wire-to-board or cable connections in commercial, industrial, and laboratory settings. Browse EnvMart's comprehensive selection of electronic components and Connector Housings to find Molex products and accessories suitable for your engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm, designed specifically for KK connectors.
It features 5 contact positions arranged in a single row.
The housing has a length of 20.67 mm and a width of 8.07 mm, making it suitable for compact PCB layouts.
This model has a straight orientation, which facilitates easy cable mounting and routing.
It is constructed from polyethylene terephthalate, providing good electrical insulation and mechanical strength.
This housing is compatible with KK 2478, 2578, and Trifurcon™ 6838 series terminals.
It supports cable mounting, allowing for straightforward installation in various applications.
It is manufactured in India under Molex's quality practices.
It is suitable for electronic assembly applications including PCB connections, power connectors, and wire housings.
This connector housing has 1 row for its contacts.
The connector gender of this housing is female, designed for secure socket connections.
It belongs to the KK 396 series, which is part of Molex's connector offerings.
