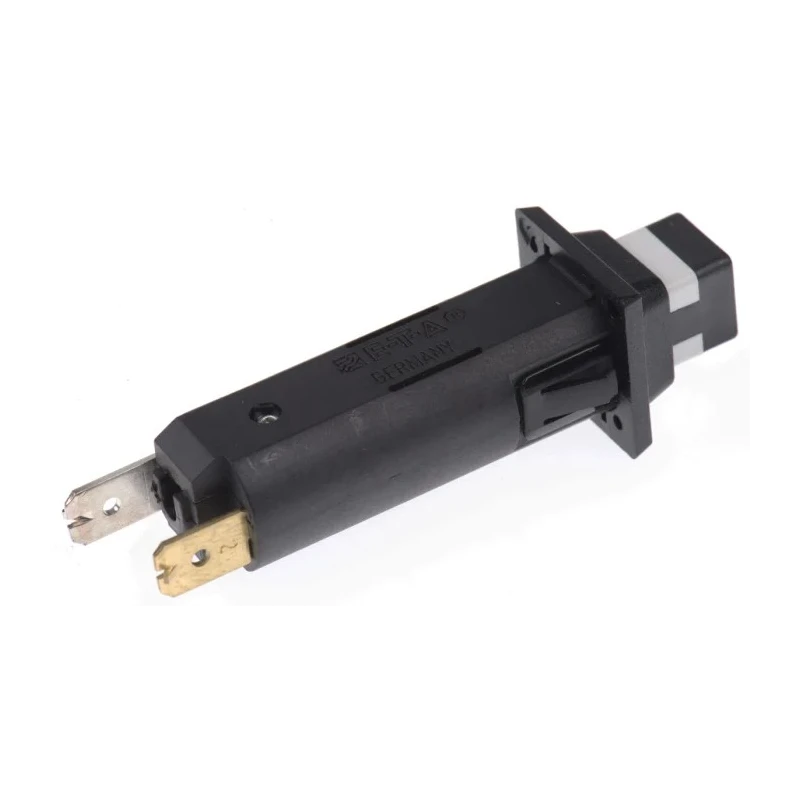

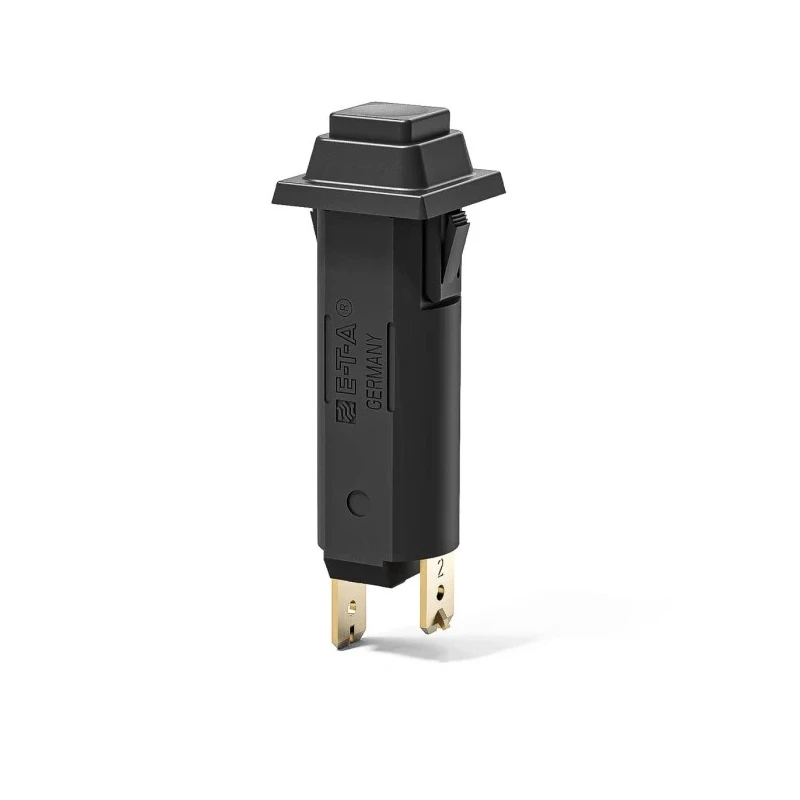

ETA Thermal Circuit Breaker 1A 250V AC 1-Pole Base Mount, Screw Terminal, 1110-F112-P1M1-1A

Free Delivery in India | Lowest Global Shipping Charges

ETA Thermal Circuit Breaker 1A 250V AC 1-Pole Base Mount, Screw Terminal, 1110-F112-P1M1-1A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	Tunisia
Brand	ETA
Height	50.3mm
Model	1110-F112-P1M1-1A
Width	19mm
Mount Type	Base
Current Rating	1A
Series	1110
Terminal type	Screw
Visual Indication	Tripped/off position
Breaking Capacity	25A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	250V ac
Rated DC Voltage	50V dc
IEC Classification	S/TO
Tripping Characteristics	Type R
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Break Time	Medium

Key Features

Reliable thermal circuit breaker designed for circuit protection in industrial, automation, and control applications.
Rated for 1A current and 250V AC operation, supporting both AC and DC voltage up to 50V DC.
Features a tripping mechanism with type R characteristics and a robust base mount with screw terminals.
Compact form factor with 19mm width and 50.3mm height enables easy integration in panels.
Reset actuator with pushbutton for manual operation and visual indication in tripped/off position.
Has a medium break time and a breaking capacity of 25A, suitable for motors, transformers, and power supplies.
Compliance with CE and RoHS standards for safety and reliability.
Long operational life, typically 300 operations at twice nominal current rating.

Product Description

ETA 1110-F112-P1M1-1A is a high-quality thermal circuit breaker engineered for the protection and control of electrical circuits in various industrial and commercial settings. This model is rated at 1 ampere and is suitable for single-pole applications. Supporting an operational voltage of up to 250V AC and 50V DC, it is ideal for both alternating and direct current systems.

The circuit breaker features a reliable thermal tripping mechanism with type R characteristics, providing stable and precise overcurrent protection. Its robust base mounting design, complemented by screw terminals, ensures secure connections and easy installation in control panels or equipment housings.

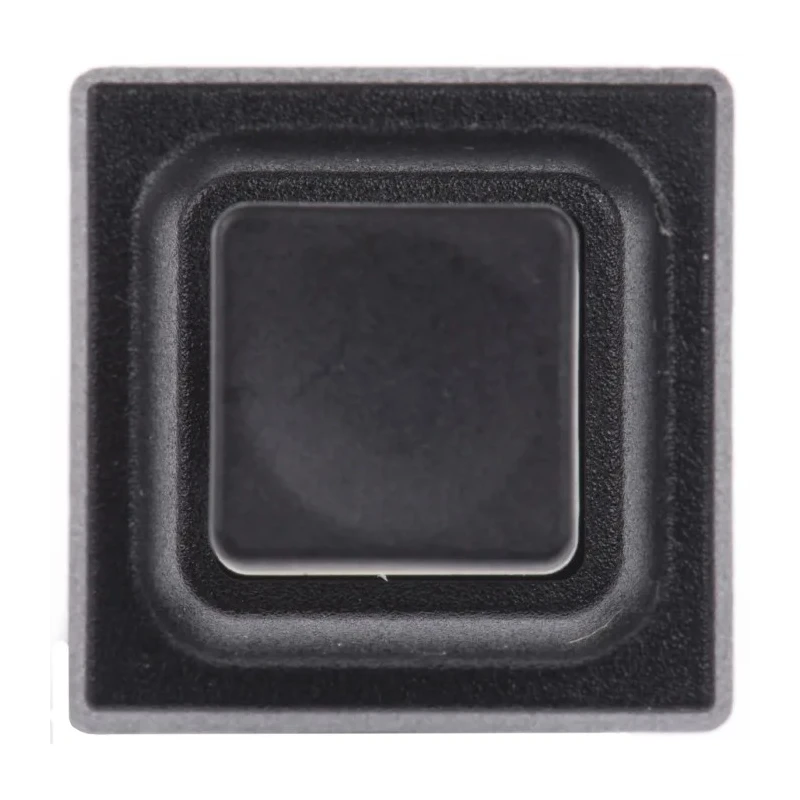

A black square pushbutton acts as the reset actuator, allowing manual circuit reset and providing clear visual indication when the unit is tripped or in the off position. With a break time classified as medium and a breaking capacity of 25A, this breaker delivers effective interruption of fault currents, making it especially suitable for safeguarding motors, transformers, and power supplies.

Its compact dimensions - 19mm width and 50.3mm height - allow integration in space-constrained environments without sacrificing functionality. Installation is further streamlined by front panel snap-in mounting and standard fuse holder cut-out compatibility, utilizing 6.3 - 0.8 blade terminals.

This circuit breaker is compliant with CE and RoHS standards, ensuring adherence to international safety and environmental requirements. It boasts a tease free/trip free mechanism, with a typical response time of 20 to 30 seconds at twice nominal current rating, and has a long operational life of approximately 300 cycles at overload conditions.

Commonly used in automation, manufacturing, electrical panels, and other settings requiring precise circuit protection, the ETA 1110-F112-P1M1-1A meets IEC S/TO classification and is approved by UL, CSA, and VDE.

For further exploration of thermal circuit breaker solutions, browse the Circuit Breakers category at EnvMart or review additional ETA models for specialized protection needs.
