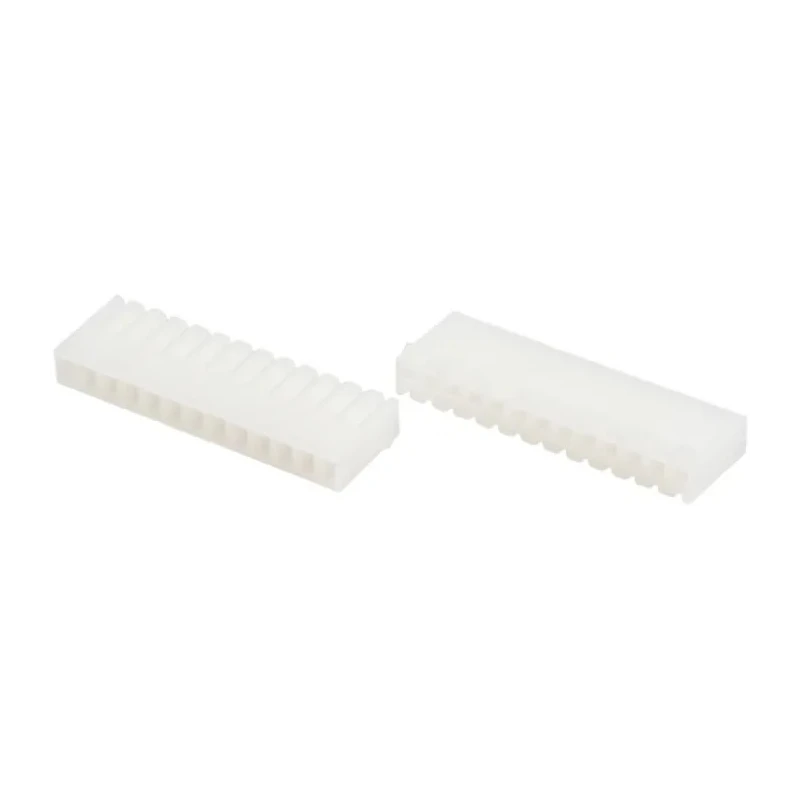

Molex KK 396 Female Connector Housing 24 Way 1 Row Straight 3.96 mm Pitch Nylon 09-50-3241
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 95mm |
| Width | 6.4mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | KK Connector |
| Number of Contacts | 24 |
| Connector Gender | Female |
Key Features
- Features a single row and straight orientation for easy cable mounting.
- Constructed from robust nylon housing material for protection and durability.
- Compatible with KK Connector systems providing secure friction lock.
- Designed with ramp and polarising ribs to prevent incorrect connections.
- Accepts KK 2478 and 2578 series terminals for versatile use.
- Measures 95 mm in length and 6.4 mm in width, suitable for varied cable assemblies.
- Natural white color housing for clear identification and aesthetic integration.
- Essential component in electronic, electrical, and industrial connector assemblies.
Product Description
Molex 09-50-3241 KK 396 Female Connector Housing is a high-quality connector housing designed for electronic and electrical applications requiring reliable cable-to-board connections. This housing features a 3.96 mm pitch and a 24-way, single row female configuration, making it suitable for industries such as electronics manufacturing, automation, and control systems.
The connector housing is made from nylon, offering strong durability and protection for internal contacts. Its straight orientation and cable mount type allow easy integration into wiring assemblies and electronic equipment. The KK Interconnect system ensures a secure friction lock to prevent accidental disconnections, aided by ramp and polarising ribs that enhance connection reliability.
This housing is compatible with KK 2478 and 2578 series terminals, expanding its versatility for various industrial wiring needs. The natural white color allows clear visual identification which assists in assembly and maintenance processes.
Dimensionally, the housing measures 95 mm in length and 6.4 mm in width, providing a compact size for electronic component layouts while maintaining robust mechanical strength.
Common applications include use in laboratory equipment, industrial automation, electrical control panels, and other commercial electronic assemblies where dependable multi-contact connectors are critical for system performance.
Single row, 24-way female connector housing with 3.96 mm pitch. Durable nylon housing material provides protection and mechanical stability. Cable mount type with straight orientation for simplified assembly. Friction lock and polarising ribs prevent disconnection and improper mating.
Compatible with related KK series terminals for flexible utilization. Compact dimensions suited for tight electronic layouts and wiring harnesses. Ideal for industrial, electronic manufacturing, and automation applications.
Explore more Connector Housings and electronic components from Molex and other trusted brands in our electronics components category at EnvMart for reliable sourcing of industrial-grade connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm.
This model supports 24 contacts in a single row configuration.
The housing is constructed from nylon, providing protection and mechanical stability.
The housing measures 95 mm in length and 6.4 mm in width.
It uses a cable mount type for easy integration into wiring assemblies.
It is compatible with KK 2478 and 2578 series terminals.
The orientation of this model is straight, allowing for simplified assembly.
This connector housing is suitable for applications in electronics manufacturing, industrial automation, and electrical control panels.
Yes, it is designed with ramp and polarising ribs to prevent incorrect connections and enhance reliability.
The connector gender of this housing is female.
This product is manufactured in India.
This housing belongs to the KK 396 series.
