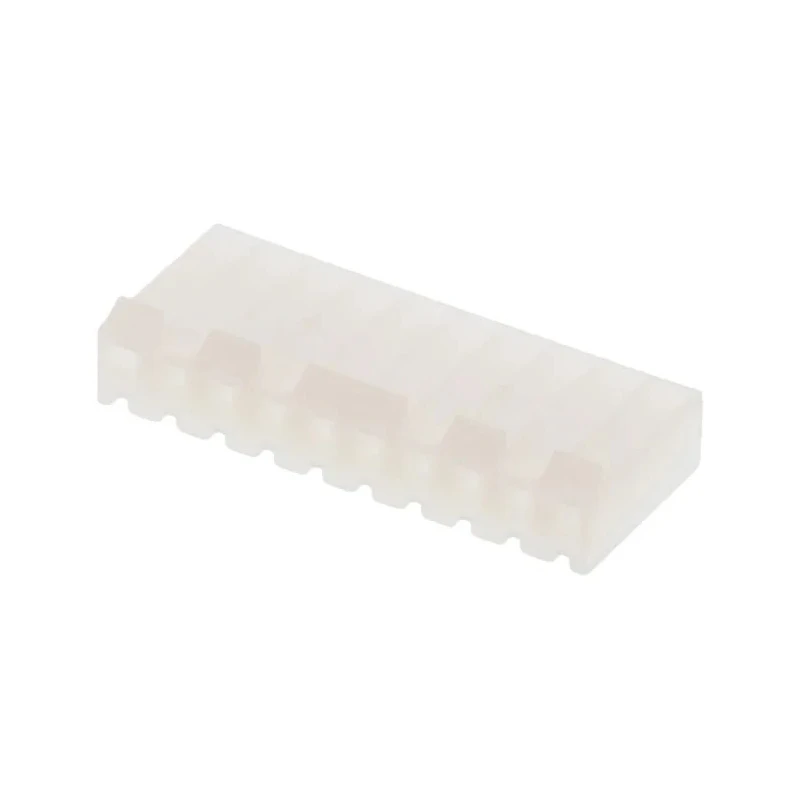

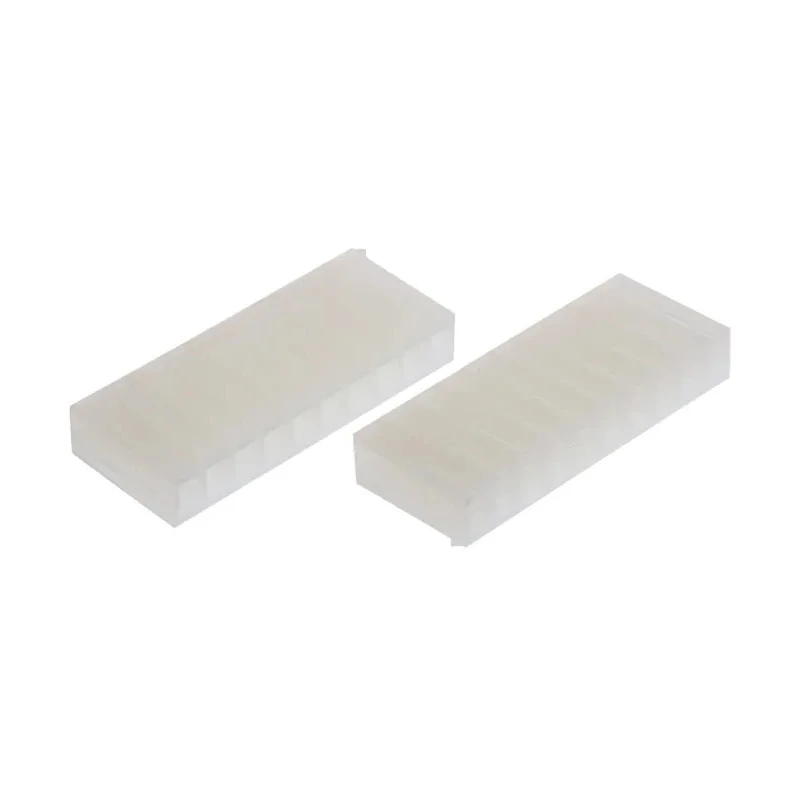

Molex KK 396 Female Connector Housing 3.96 mm Pitch 10 Way 1 Row Straight 09-50-3101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 39.52mm |
| Width | 6.4mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | KK Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon for thermal resistance and impact protection.
- Features a straight body orientation for easy front-facing board installation.
- Integrated friction lock ensures secure connections and prevents accidental disconnection.
- Polarising ribs and ramp design minimize mating errors for reliable connectivity.
- Compatible with Molex KK 2478 and 2578 series crimp terminals for versatile use.
- Suitable for applications in agricultural equipment, audio-visual devices, marine engineering, and packaging facilities.
Product Description
Molex 09-50-3101 KK 396 Female Connector Housing is a high-quality electronic component designed for reliable wire-to-board connections. Featuring a 3.96 mm pitch and 10 contact positions arranged in a single row, this Connector Housing provides excellent compactness and multi-circuit capability.
The housing is crafted from tough, thermally resistant nylon, which offers protection against abrasion and mechanical impact in demanding industrial and commercial environments. Its straight orientation body facilitates straightforward mounting on front-facing PCBs, simplifying installation in diverse panel assemblies.
Integral friction locking mechanisms help prevent accidental disconnections during vibration or movement, enhancing overall connection integrity. The inclusion of ramp and polarising ribs reduces the risk of incorrect mating, promoting fault-free assembly and operation.
This housing is designed for use with Molex KK 2478 and 2578 series crimp terminals, enabling secure wire attachment and optimal electrical contact. The product finds extensive applications across sectors including agricultural machinery, audio-visual equipment, marine engineering, and packaging operations, demonstrating its versatile compatibility.
Designed as part of the Molex KK 2139 series, the connector meets industry needs for compact, dependable multipole connections, ensuring both physical protection of the contacts and electrical performance. Its nylon body not only protects the terminals from environmental contaminants like moisture and dust but also ensures long-term durability under continuous use.
Constructed from durable nylon for thermal resistance and impact protection. Features a straight body orientation for easy front-facing board installation. Integrated friction lock ensures secure connections and prevents accidental disconnection.
Polarising ribs and ramp design minimize mating errors for reliable connectivity. Compatible with Molex KK 2478 and 2578 series crimp terminals for versatile use. Suitable for applications in agricultural equipment, audio-visual devices, marine engineering, and packaging facilities.
Explore more Molex connector solutions and reliable wire housing products in the Electronics Components category on EnvMart for your industrial, commercial, or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm.
This model features 10 contact positions arranged in a single row.
The housing is constructed from durable nylon, providing thermal resistance and impact protection.
It has a straight body orientation, which facilitates easy front-facing board installation.
It is compatible with Molex KK 2478 and 2578 series crimp terminals.
The dimensions are 39.52 mm in length and 6.4 mm in width.
This model is suitable for applications in agricultural equipment, audio-visual devices, marine engineering, and packaging facilities.
It supports cable mounting.
Yes, it includes an integrated friction lock to ensure secure connections and prevent accidental disconnection.
The connector features polarising ribs and a ramp design that help reduce the risk of incorrect mating.
The country of origin for this product is India.
This connector housing is part of the Molex KK 396 series.
