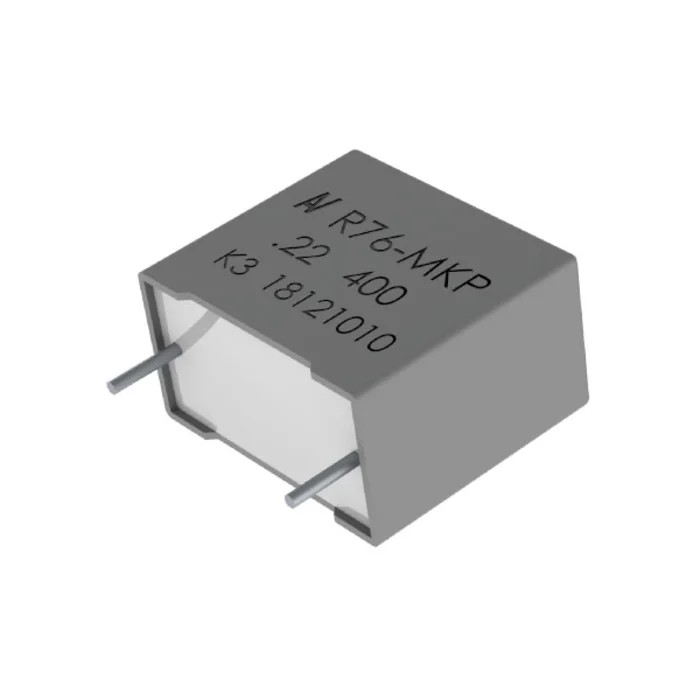

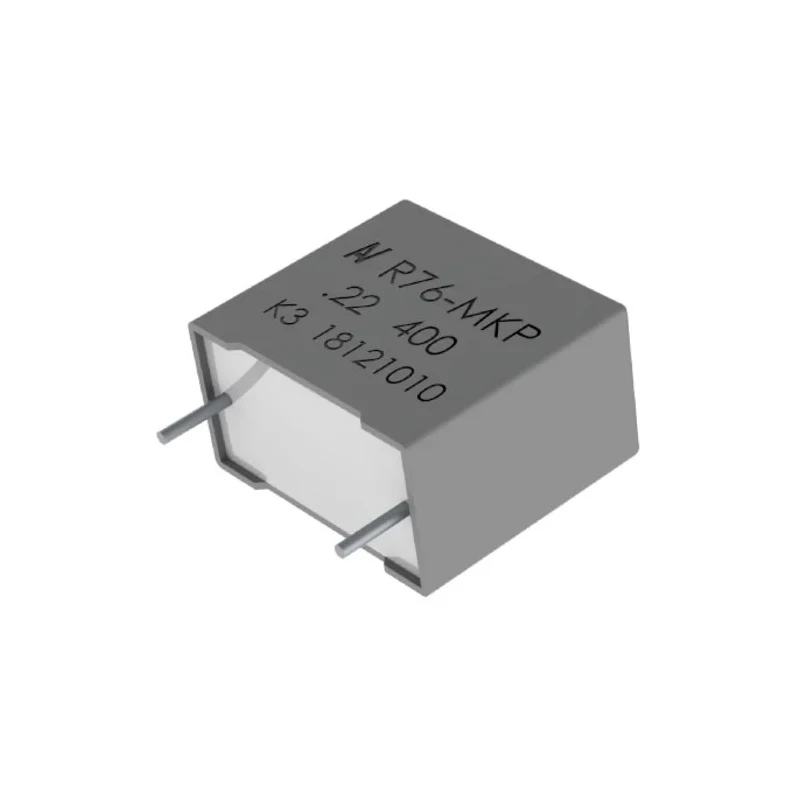

KEMET Film Capacitor, ±5 % Tolerance, 100 nF Capacitance, 2 kV DC Rated Voltage, 700 V AC, Through Hole Mount R76UR310050H3J

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor, ±5 % Tolerance, 100 nF Capacitance, 2 kV DC Rated Voltage, 700 V AC, Through Hole Mount R76UR310050H3J

Name: KEMET Film Capacitor, ±5 % Tolerance, 100 nF Capacitance, 2 kV DC Rated Voltage, 700 V AC, Through Hole Mount R76UR310050H3J
Brand: KEMET
SKU: 103873
Price: 3.35 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	China
Capacitance Range	100 pF - 15 μF
Brand	KEMET
Height	28mm
Length	32mm
Model	R76UR310050H3J
Packaging	Tray
Width	14mm
Mount Type	Through Hole
Series	R76_125C
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	25mm
Standards/Approvals	IEC 60286-2, RoHS
Pin Count	2
Rated AC Voltage	700V ac
Rated DC Voltage	2kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200
Capacitance tolerance	±2.5%, ±5%, ±10%
Lead Spacing	10 mm - 37.5 mm
Equivalent Series Resistance ESR	24mΩ

Key Features

Constructed with polypropylene film and double metallized polyester film electrodes.
Encapsulated in a self-extinguishing plastic case with thermosetting resin.
Suitable for high frequency and high current applications.
Operating temperature range from -55°C to +125°C for harsh environments.
Leads are solder terminal type with a 27.5 mm pitch and 25 mm length.
Complies with IEC 60286-2 and RoHS standards.
Automotive standard AEC-Q200 certified.
Typical uses include resonant circuits, snubber circuits, and commutation circuits in power electronics.

Product Description

KEMET R76UR310050H3J film capacitor is a high-quality electronic component designed for industrial and automotive electronic applications. It features a capacitance of 100 nF with a ±5 % tolerance and is rated for a high DC voltage of 2 kV and an AC voltage rating of 700 V, suitable for demanding high voltage circuits.

The capacitor is constructed using polypropylene film and double metallized polyester film electrodes, ensuring excellent electrical performance and durability. Radial leads made of tinned wire are electrically welded, providing stable connections. The capacitor is encapsulated in a self-extinguishing plastic casing made from solvent-resistant thermosetting resin, enhancing safety and longevity in harsh environments.

Designed for through hole mounting, the component has a lead pitch of 27.5 mm, lead length of 25 mm, and lead diameter of 0.8 mm. It is compliant with international standards such as IEC 60286-2 and RoHS, and holds the automotive AEC-Q200 certification, making it reliable for use in automotive electronics.

The capacitor exhibits low dissipation factor of 0.1 % and an equivalent series resistance (ESR) of 24 mΩ, contributing to efficient high frequency operation. It operates reliably across a wide temperature range from -55°C up to 125°C, making it suitable for applications in high vibration and temperature environments typical in industrial setups.

Typical applications include resonant circuits, snubber circuits, silicon-controlled rectifier (SCR), insulated-gate bipolar transistor (IGBT) switching circuits, and power electronics involving high voltage and current. The product is offered in tray packaging for convenient handling and bulk assembly processes.

Constructed from polypropylene and double metallized polyester film. Self-extinguishing, solvent-resistant plastic case. High voltage ratings: 2 kV DC, 700 V AC. Wide operating temperature range: -55°C to 125°C. Automotive standard AEC-Q200 compliant and RoHS approved.

Low equivalent series resistance of 24 mΩ supporting efficient high frequency usage. Lead pitch of 27.5 mm and solder terminal type leads. Suitable for industrial, automotive, and power electronics applications. Browse the Film Capacitor category on EnvMart for related high-performance capacitors and electronic components.
